Figure 2-4 Standard System Components - Silicon Graphics Origin 3900 User Manual

007-4653-001
The 39U rack, as shown in Figure 2-4, has front and rear doors that have keylocks to
prevent unauthorized access to the system. The rack also has cable entry/exit areas at the
bottom of the rack and cable management hardware in the rear of the rack.
The 39U rack is mounted on four casters, two of which are swivel castors. The castors
enable the rack to be rolled out of a shipping crate and to its placement at the customer
site. The base of the rack has seismic tie-down attachment points and leveling pads. For
mechanical specifications of the 39U rack, see Appendix A, "Technical Specifications and
Pinouts".

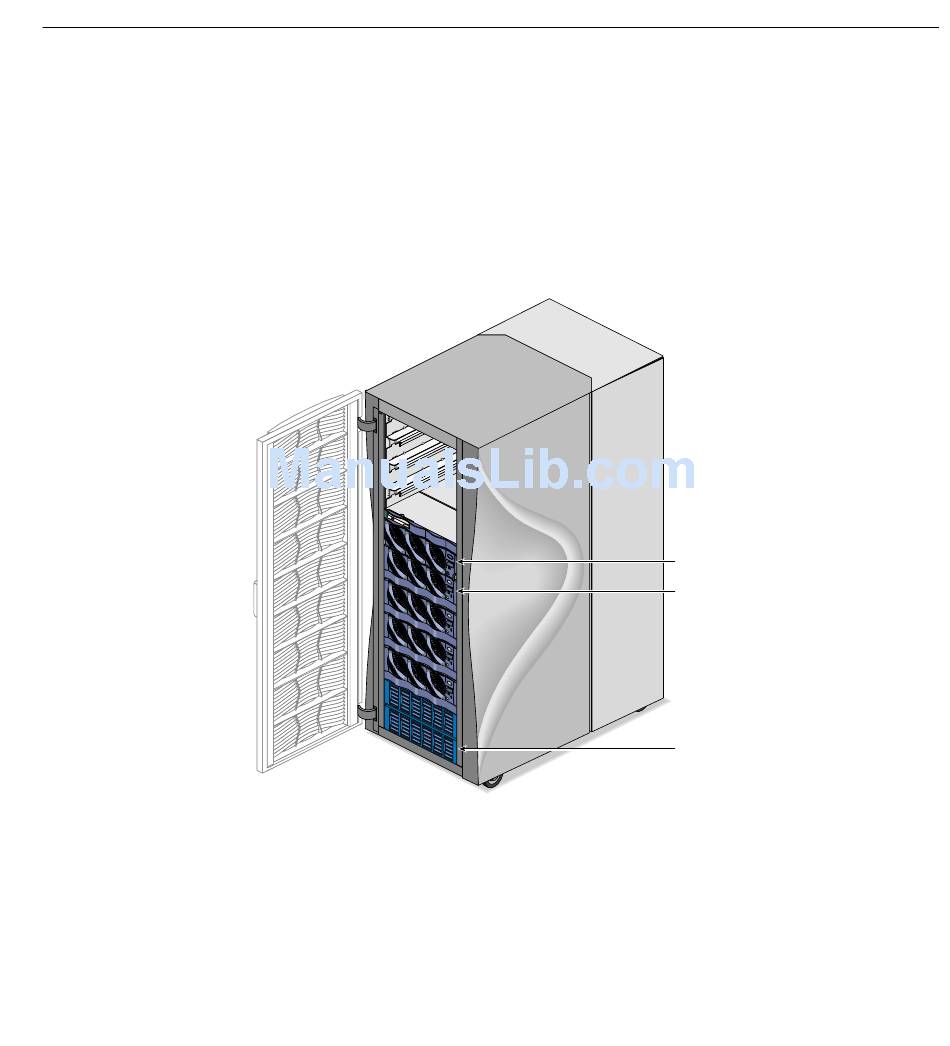

Figure 2-4 Standard System Components
Standard System Components
IX-brick
Cx-brick
Power bay
43
