14: Maintenance and Upgrade Procedures
208
e. Place the PCI card bracket so that the screw holes of the bracket align with the
empty screw holes of the carrier guide bar, as shown in Figure 14-7.
f. Secure the bracket to the carrier guide bar with two T8 Torx screws.
g. Tighten the screw that you loosened in step 6b.

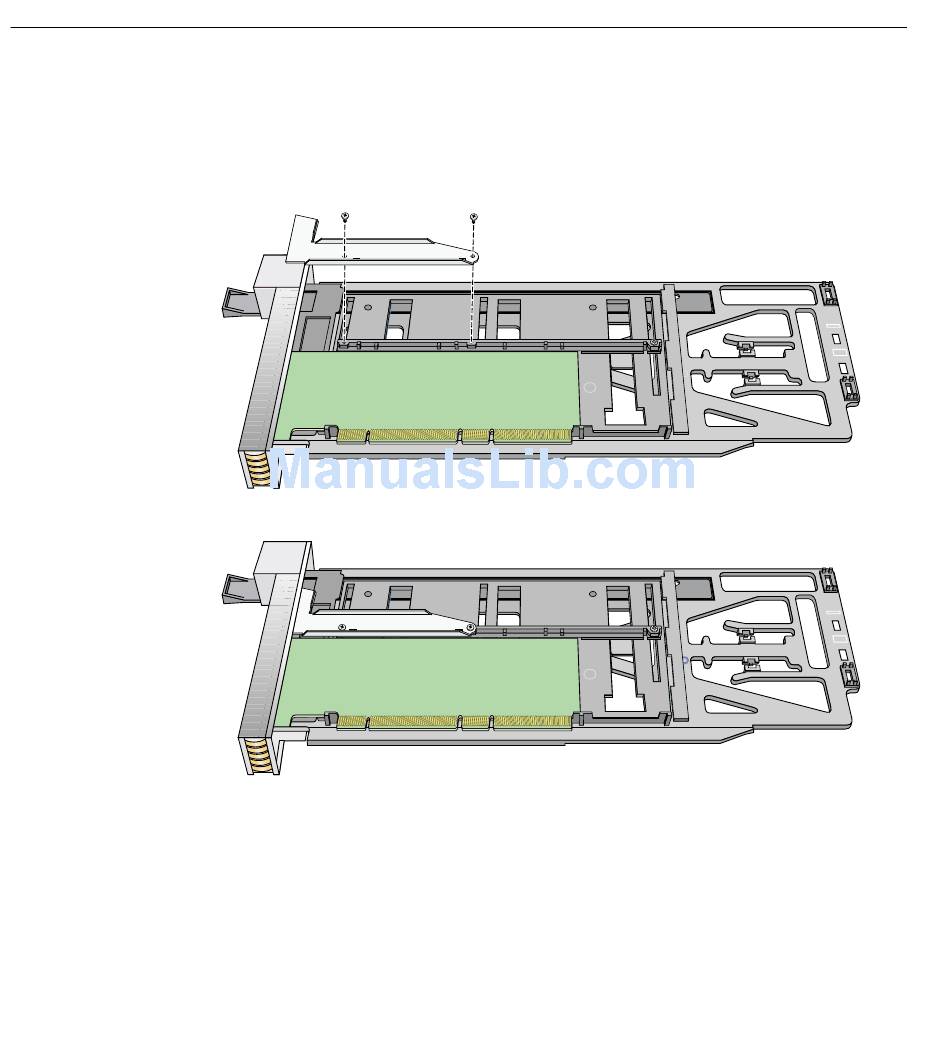

Installing Bracket to Secure Half-height Card
Figure 14-7
007-4653-001
