Targeting Range of Bricks

007-4653-001
To select multiple bricks within a rack, see Figure 8-14 and follow these steps:
1. Press the Rack/Slot button.
2. Press the button for the rack (for example, Figure 8-14 shows rack 001 selected).
3. Press the buttons for the desired slots (for example, Figure 8-14 shows the bricks in
slots 015, 019, and 031 selected).
Rack/Slot Partition
ALL
CLR << >>
001 002 003 004
101 102
New DEST: r 1 s 15, 19, 31
Apply

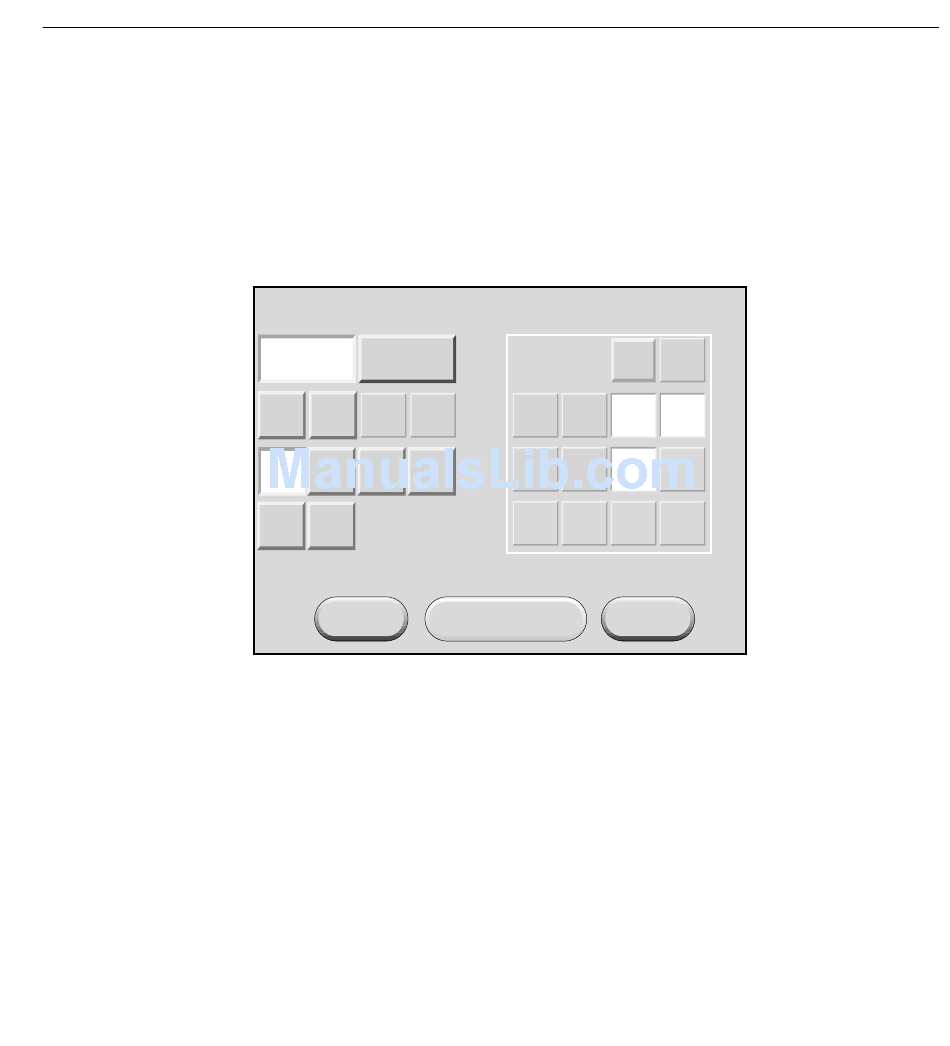

Figure 8-14 Targeting Multiple Bricks in Rack
The new destination is reflected in the destination field near the bottom of the display
window. For example, Figure 8-14 shows rack 001, slots 015, 019, and 031 (r1 s15, 19, 31)
as the destination.
Once you have selected the bricks, press the Apply button to set the new destinations.
The home window will then reappear. The new destinations are reflected in the
destination field across the bottom of the home window display.
Slots: ALL
011 015
007
023 027 031
Reset DEST Cancel
