Powering On D-brick2

007-4653-001
Before powering on the D-brick2, confirm that the following is true:
• Drives are seated in the correct bays and blank plates are fitted in any empty bays.
• Ambient temperature is within the specified range of 10
• The rack power distribution unit (PDU) and power distribution strip (PDS) are on.
To power on the D-brick2, follow these steps:
1. Connect an AC power cord to each PSU/cooling module.
2. Connect the AC power cords to the PDS.
3. Turn the power switch on each PSU/cooling module to the "on" position (
= off). The location of the power switch on the D-brick2 PSU/cooling module is
shown in Figure 1-15.
Power on/off switch
(I = on)
AC power input

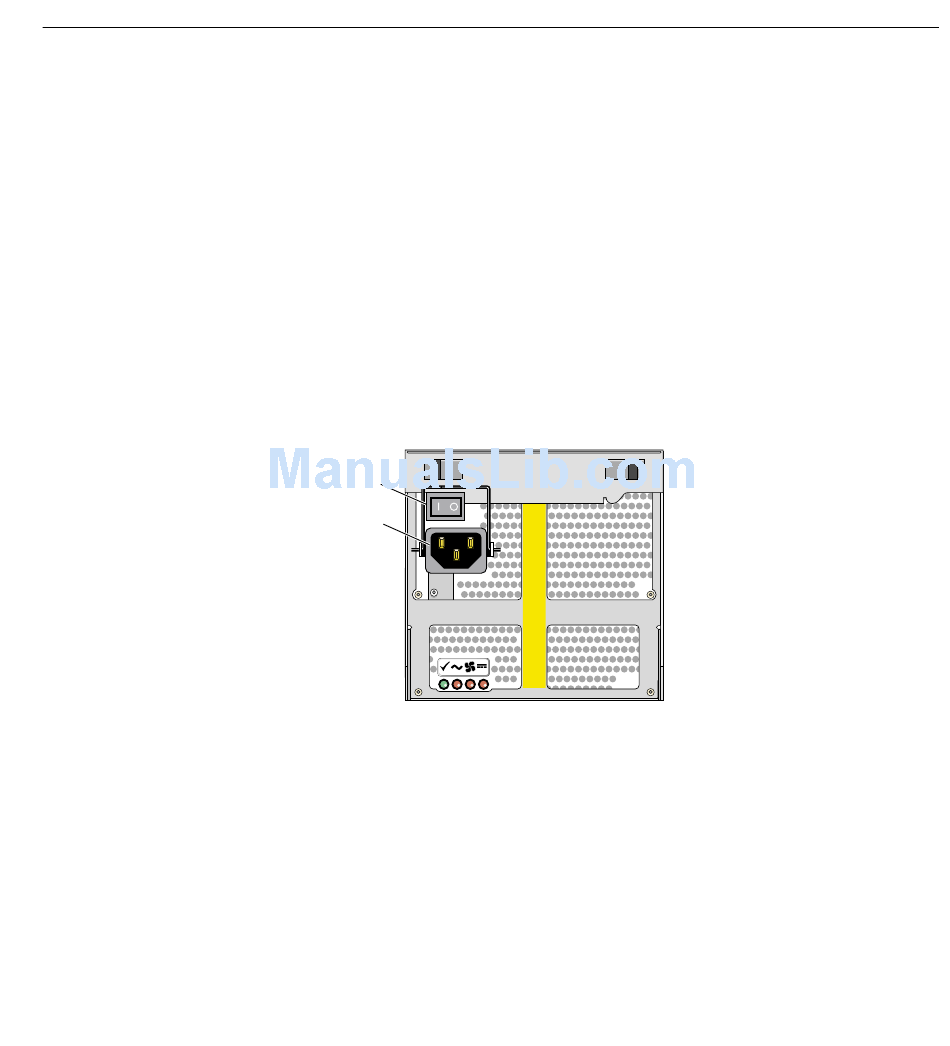

D-brick2 PSU/cooling Module Power Switch
Figure 1-15
The green "PSU good" LED illuminates. Also, the "power on" LED on the ESI/ops panel
of each module turns green when AC power is present.
If the "power on" LED on the ESI/ops panel does not illuminate, or if the amber
"system/ESI fault" LED illuminates, verify that you followed all steps. For
troubleshooting tips, see the SGI Total Performance 9100 (2Gb TP9100) Storage System
User's Guide or contact your service provider.
