13: InfiniteReality Graphics Components
InfiniteReality Board Set
188
The Origin 3900 server with InfiniteReality graphics supports several different
InfiniteReality board sets. All of the InfiniteReality board sets consist of the following
board types (see Figure 13-4):
• Ktown2
• Geometry Engine (GE)
• Raster manager (RM)
• Display generator (DG5)
Note: The InfiniteReality board sets are distinguished from each other primarily by the
types of GE and/or RM boards that they contain. For example, the InfiniteReality2 board
set includes an RM9 board and the InfiniteReality3 board set has an RM10 board.
Pipe 1 Pipe 0
graphics slots graphics slots

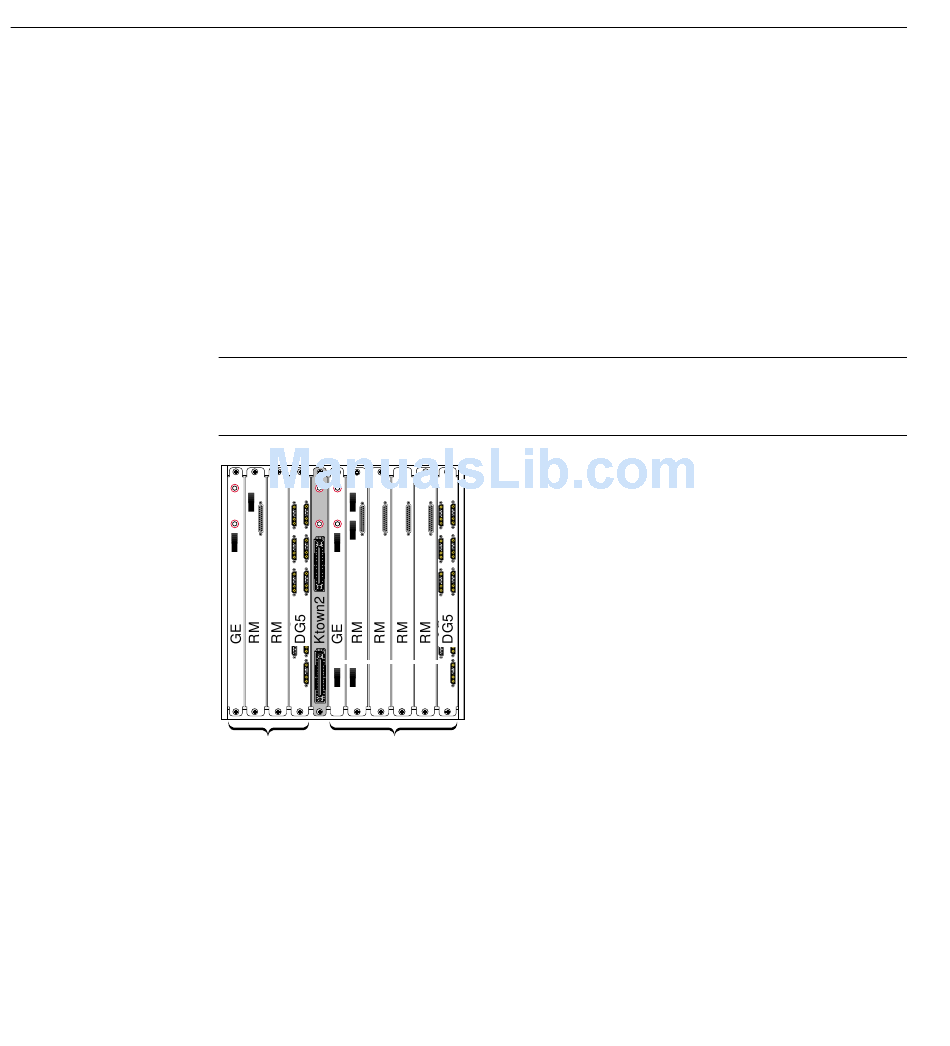

Figure 13-4 InfiniteReality Board Set
