13: InfiniteReality Graphics Components

G-brick

184
The G-brick is a one- or two-pipe, rackmounted graphics interface that requires 18U of
space within a rack. You can add 1 to 16 InfiniteReality graphics pipes to your Origin
3900 server. Each graphics pipe requires at least two processors and connection to one
IP53 node board. Figure 13-1 shows the front and rear views of the G-brick.

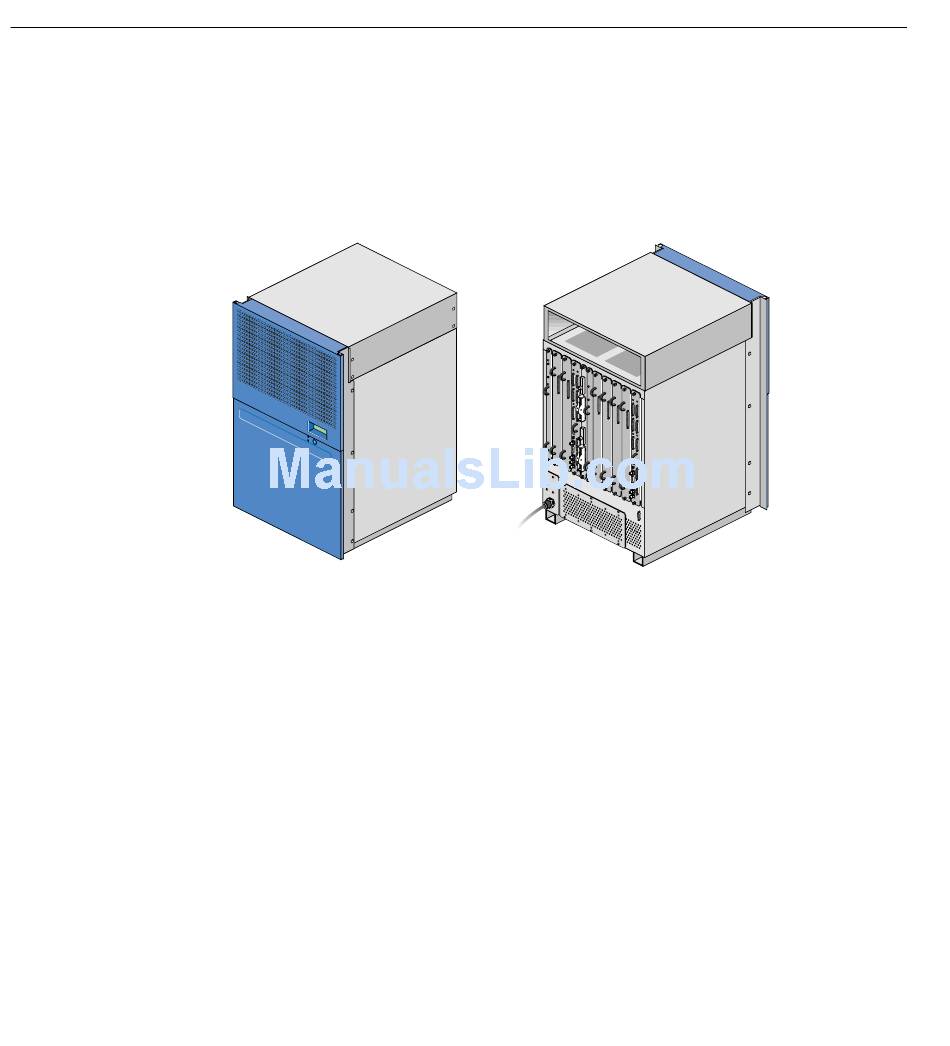

Front view
Figure 13-1 Front and Rear Views of G-brick
This section describes the G-brick in the following subsections:
• "External Components" on page 185
• "InfiniteReality Board Set" on page 188
Rear view
