Figure 14-1 Removing Card Carrier - Silicon Graphics Origin 3900 User Manual

007-4653-001
To install or replace a PCI card, follow these steps:
1. Shut down the operating system. (See your software guide if you need instructions
to do this.)
2. Power off the I/O brick by following the power-off instructions in the "Powering
Off Server" on page 24.
3. To extract a PCI card or empty PCI card carrier from a slot, pull the handle on the
selected card carrier straight out, as shown in Figure 14-1.

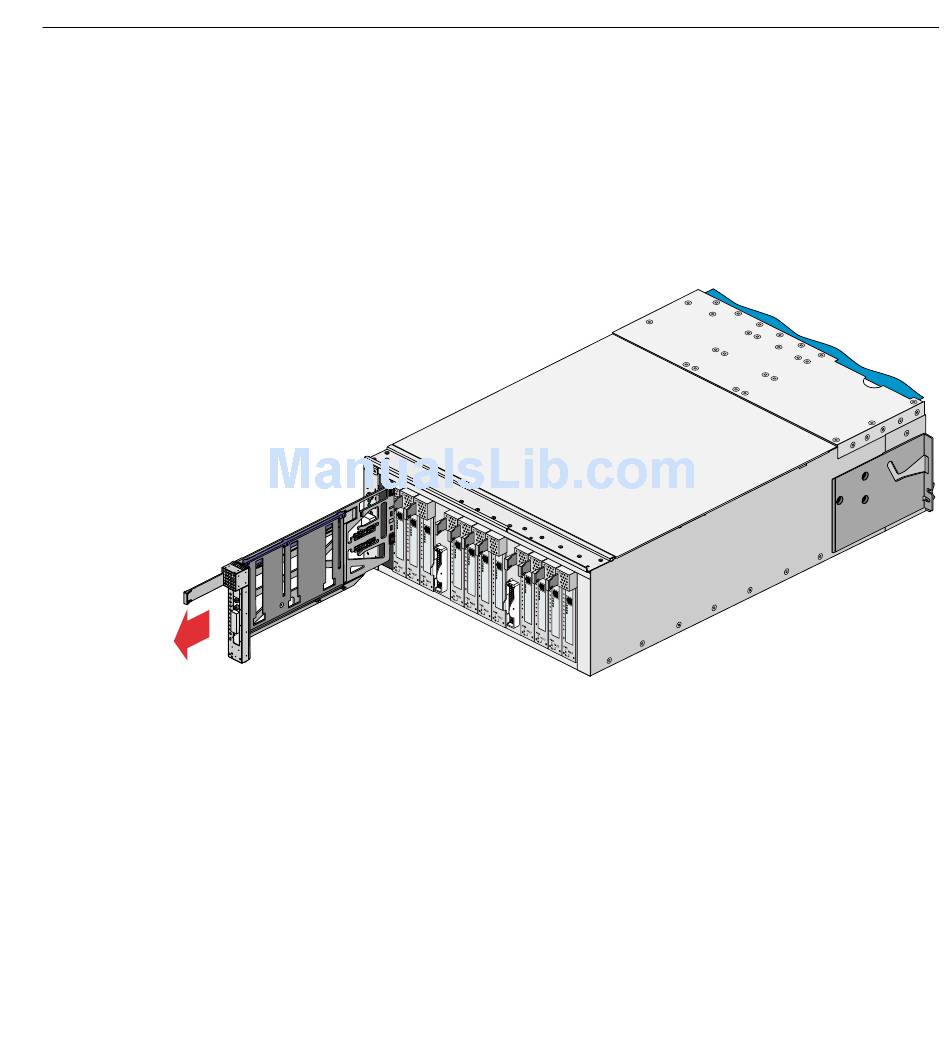

Removing Card Carrier
Figure 14-1
Installing or Replacing PCI or PCI-X Card
203
