3. Place the drive carrier module on an antistatic work surface and ensure that the
anti-tamper lock is unlocked. When unlocked, the indicator window is black. If the
indicator window is red, the drive is locked and must be unlocked before it can be
installed in the D-brick2 storage module.
To unlock the drive, insert the Torx screwdriver (included with the disk drive) into
the socket in the lower part of the handle trim and turn it 90 degrees
counterclockwise until the indicator window is black. See Figure 14-16.
Indicator
window

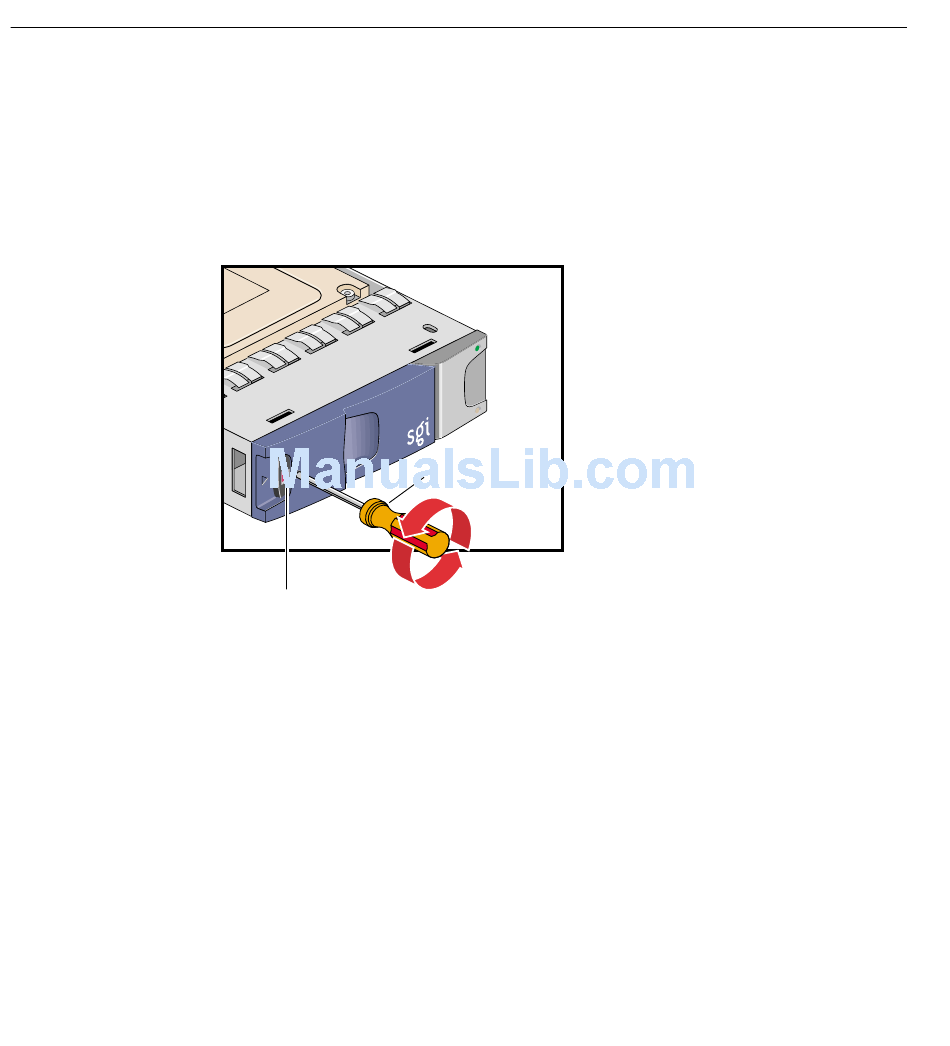

Figure 14-16 Unlocking Drive Carrier Module
Torx screwdriver
