Preparation
Setup with the Front Panel
6
X7
Output connector for monitor
Note
For connector X7, refer to P.2-27 "Wiring to the connector, X7".
Caution
2-52

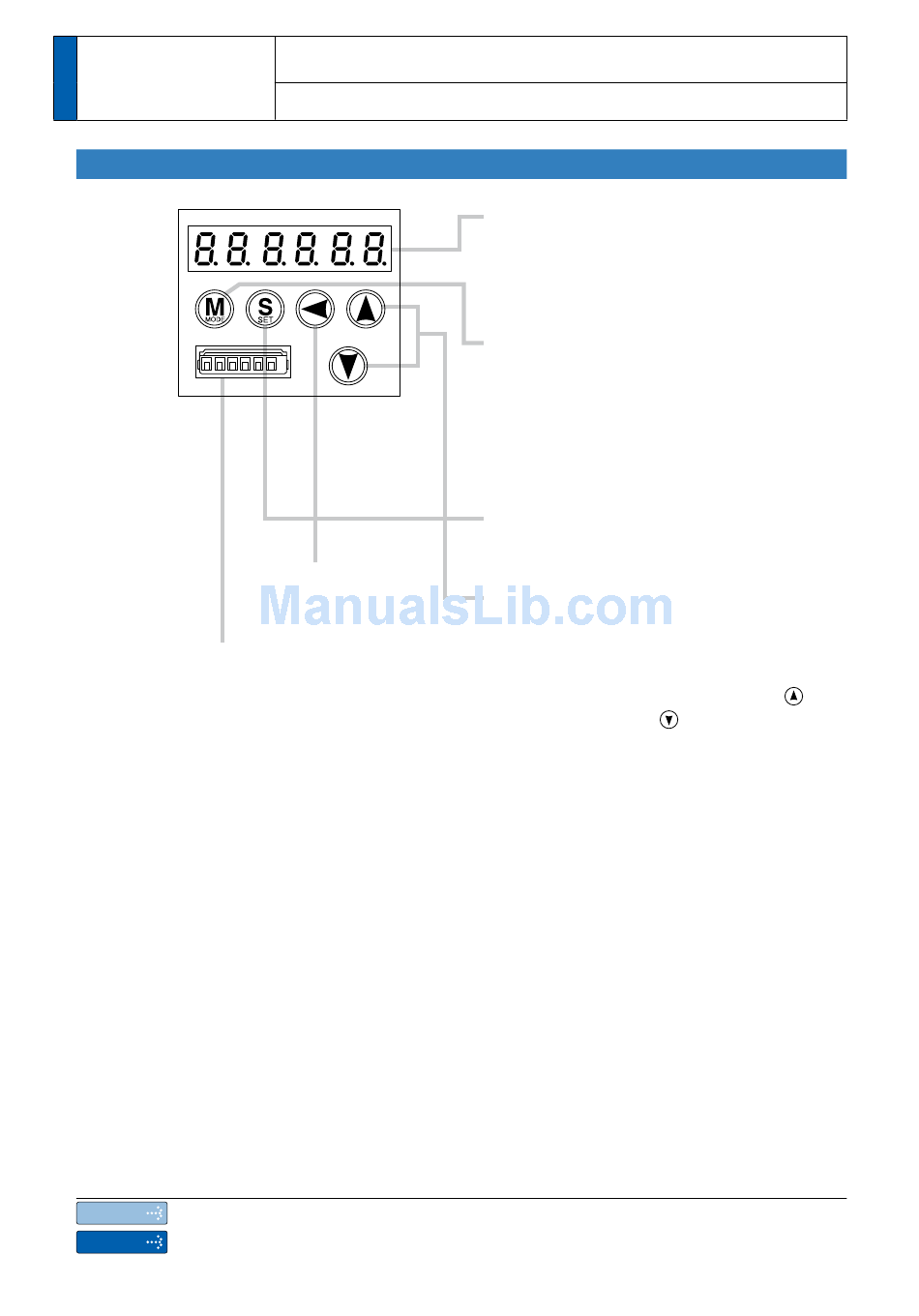

15. How to Use the Front Panel
Setup
1
X7
Shifting of the digit for data
changing to higher digit.
Display LED (6-digit)
Switch to error display screen when error
occurs, and LED will flash (about 2Hz).
LED will flash slowly (about 1Hz) when warning
occurs.
Mode switching button
(valid at SELECTION display)
Press this to switch 4 kinds of mode.
1) Monitor Mode
2) Parameter Set up Mode
3) EEPROM Write Mode
4) Auxiliary Function Mode
SET Button (valid at any time)
Press this to switch SELECTION and
EXECUTION display.
Press these to change display and data, select
parameters and execute actions.
(Change/Selection/Execution is valid to the digit
which decimal point flashes.)
Numerical value increases by pressing,
decreases by pressing
,
.
