Panasonic MINAS E Series Technical Reference

This product is for industrial
●
equipment. Don't use this
product at general household.
If you are the first user of this product, please be sure to purchase and read
the optional Engineering Material (DV0P3700), or downloaded instruction
Manual from our Web Site.
<Contents>
1.Introduction ........................... B2
After Opening the Package ....................... B2
Check the Model of Driver ......................... B2
Check the Model of Motor ......................... B3
2.System Configuration
and Wiring ............................. B4
General Wiring Diagram ............................ B4
Wiring of Connectors CN X1, X3
(Wiring of Main Circuits) ......................... B6
Wiring to Connector CN X4
(Connection with Encoder) ..................... B7
Circuit Available for Typical
Control Modes ........................................ B8
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Technical reference

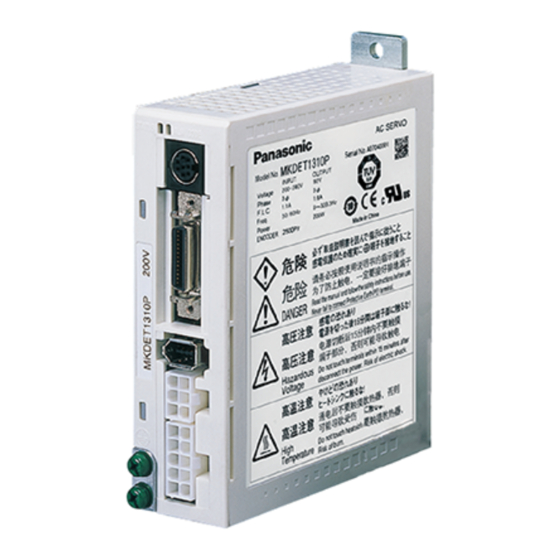

AC Servo Motor & Driver
Thank you very much for your
purchase of Panasonic AC Servo
Motor & Driver, MINAS E-series.
Before use, refer this manual and
safety instructions to ensure
proper use. Keep this manual
and read when necessary.
Make sure to forward this manual
for safety to the final user.
page
3.Parameter ............................ B10
Parameter ................................................ B10
4.Protective Functions .......... B15
Protective Functions
(What is alarm code?) ............................. B15
5.Conformance to EC Directives
and UL standards ................ B17
Peripheral Equipment .............................. B18
Conformance to EC Directives and
UL Standards ........................................ B20
After-Sale Service (Repair) .... B21
MINAS E-series
page
