5. Installation
Driver

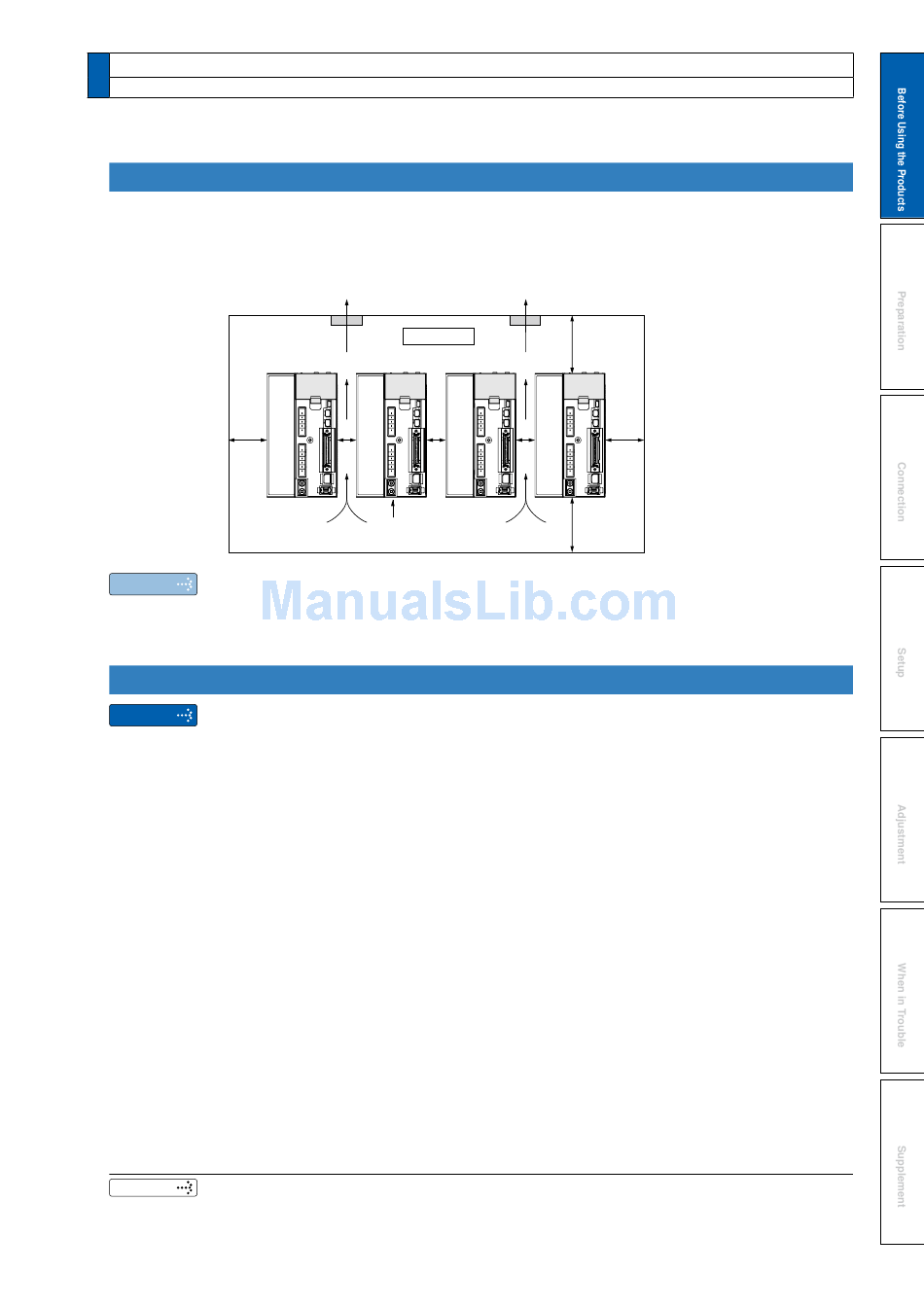

Mounting Direction and Spacing
• Reserve enough surrounding space for effective cooling.
• Install fans to provide uniform distribution of temperature in the control panel.
• D/E/F frame is provided with a cooling fan at the bottom.
• Observe the environmental conditions of the control panel described in the previous page.
40mm
or
more
It is recommended to use the conductive paint when you make your own mounting fix-
Note
ture, or repaint after peeling off the paint on the machine for installing the products, in
order to make noise countermeasure.
Caution on Installation
• We have been making the best effort to ensure the highest quality, however, application of
Caution
exceptionally large external noise disturbance and static electricity, or failure in input pow-
er, wiring and components may result in unexpected action. It is highly recommended that
you make a fail-safe design and secure the safety in the operative range.
• If stranded wires are used as the cable, bunch the conductors of the cable using a rod termi-
nals or a round terminals. If stranded wires are used as they are, unexpected accidents such
as an electric shock and short circuit or injury may result.
• There might be a chance of smoke generation due to the failure of these products. Pay
an extra attention when you apply these products in a clean room environment.
• Be sure to ground the protective earth terminal.
If the product is grounded insufficiently, not only the driver may not deliver its perfor-
mance sufficiently, but also safety hazards such as a malfunction due to a electrification
or a disturbance may be caused.
• If electric wires are bound and run through metal duct, they cannot carry the rated cur-
rent due to temperature rise. If they are forced to carry the rated current, they may burn.
When determining size of the wire.
• P.1-6 "Specifications" • P.1-20 "Installation of motor"
Related page
• P.7-6 "Dimensions" • P.7-90 "Mounting fixture"
Fan
Control panel
10mm 10mm
or or
more more
Direction of air flowing
from the internal
cooling fan (D/E/F frame)
Fan
100mm
or more
10mm 40mm
or
or
more
more
100mm
or more
1
2
3
4
5
6
7
