The fields that can be configured are described below:
Parameter
MSTI ID
Priority
Click the Apply button to accept the changes made.
Click the Edit button to re-configure the specific entry.
Click the View button to display the information of the specific entry.

MSTP Port Information

This window displays the current MSTI configuration information and can be used to update the port configuration for
an MSTI ID. If a loop occurs, the MSTP function will use the port priority to select an interface to put into the forwarding
state. Set a higher priority value for interfaces to be selected for forwarding first. In instances where the priority value is
identical, the MSTP function will implement the lowest MAC address into the forwarding state and other interfaces will
be blocked. Remember that lower priority values mean higher priorities for forwarding packets.
To view the following window, click L2 Features > Spanning Tree > MSTP Port Information, as shown below:
To view the MSTI settings for a particular port, use the drop-down menu to select the Port number. To modify the
settings for a particular MSTI instance, enter a value in the Instance ID field, an Internal Path Cost, and use the drop-
down menu to select a Priority.

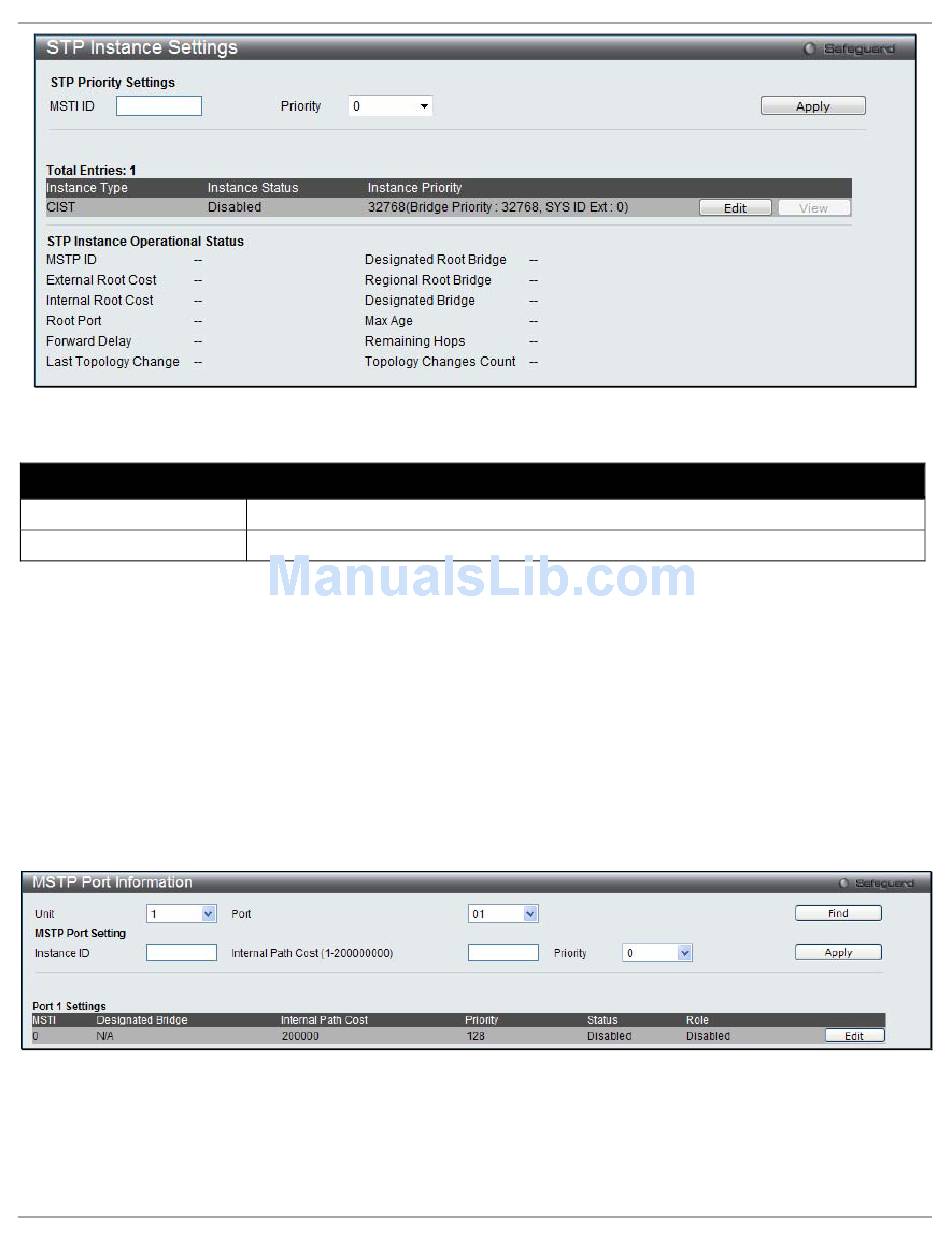

Figure 4-31STP Instance Settings window
Description
Enter the MSTI ID in this field. An entry of 0 denotes the CIST (default MSTI).
Enter the priority in this field. The available range of values is from 0 to 61440.
Figure 4-32 MSTP Port Information window
