Port
Time Interval
Record Number
Bytes
Packets
Unicast
Multicast
Broadcast
Show/Hide
Click the Apply button to accept the changes made for each individual section.
Click the Clear button to clear all statistics counters on this window.
Click the View Table link to display the information in a table rather than a line graph.
Click the View Graphic link to display the information in a line graph rather than a table.
UMB_Cast (RX)
To select a port to view these statistics for, select the port by using the Port pull-down menu. The user may also use
the real-time graphic of the Switch at the top of the web page by simply clicking on a port.
To view this window, click Monitoring > Statistics > Port Statistics > Packets > UMB_Cast (RX), as shown below:

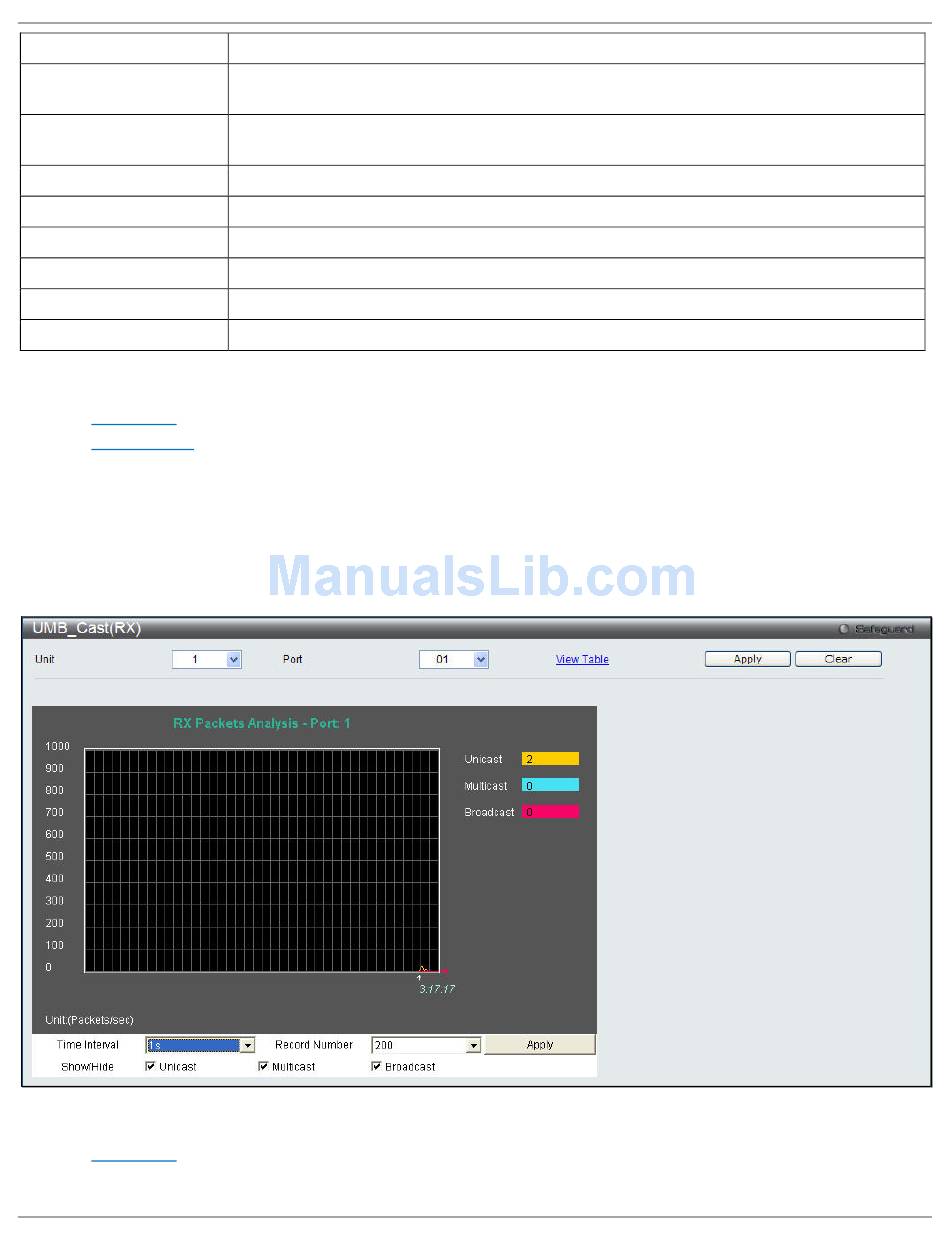

Figure 11-6 UMB_cast (RX) window (for Unicast, Multicast, and Broadcast Packets)
Click the View Table link to display the information in a table rather than a line graph.
Use the drop-down menu to choose the port that will display statistics.
Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Select number of times the Switch will be polled between 20 and 200. The default value
is 200.
Counts the number of bytes received on the port.
Counts the number of packets received on the port.
Counts the total number of good packets that were received by a unicast address.
Counts the total number of good packets that were received by a multicast address.
Counts the total number of good packets that were received by a broadcast address.
Check whether to display Bytes and Packets.
