Bandwidth Control

The bandwidth control settings are used to place a ceiling on the transmitting and receiving data rates for any selected
port.

Bandwidth Control Settings

The Effective RX/TX Rate refers to the actual bandwidth of the Switch port, if it does not match the configured rate.
This usually means that the bandwidth has been assigned by a higher priority resource, such as a RADIUS server.
To view the following window, click QoS > Bandwidth Control > Bandwidth Control Settings, as shown below:
The fields that can be configured or viewed are described below:
Parameter
Unit
From Port / To Port
Type
No Limit

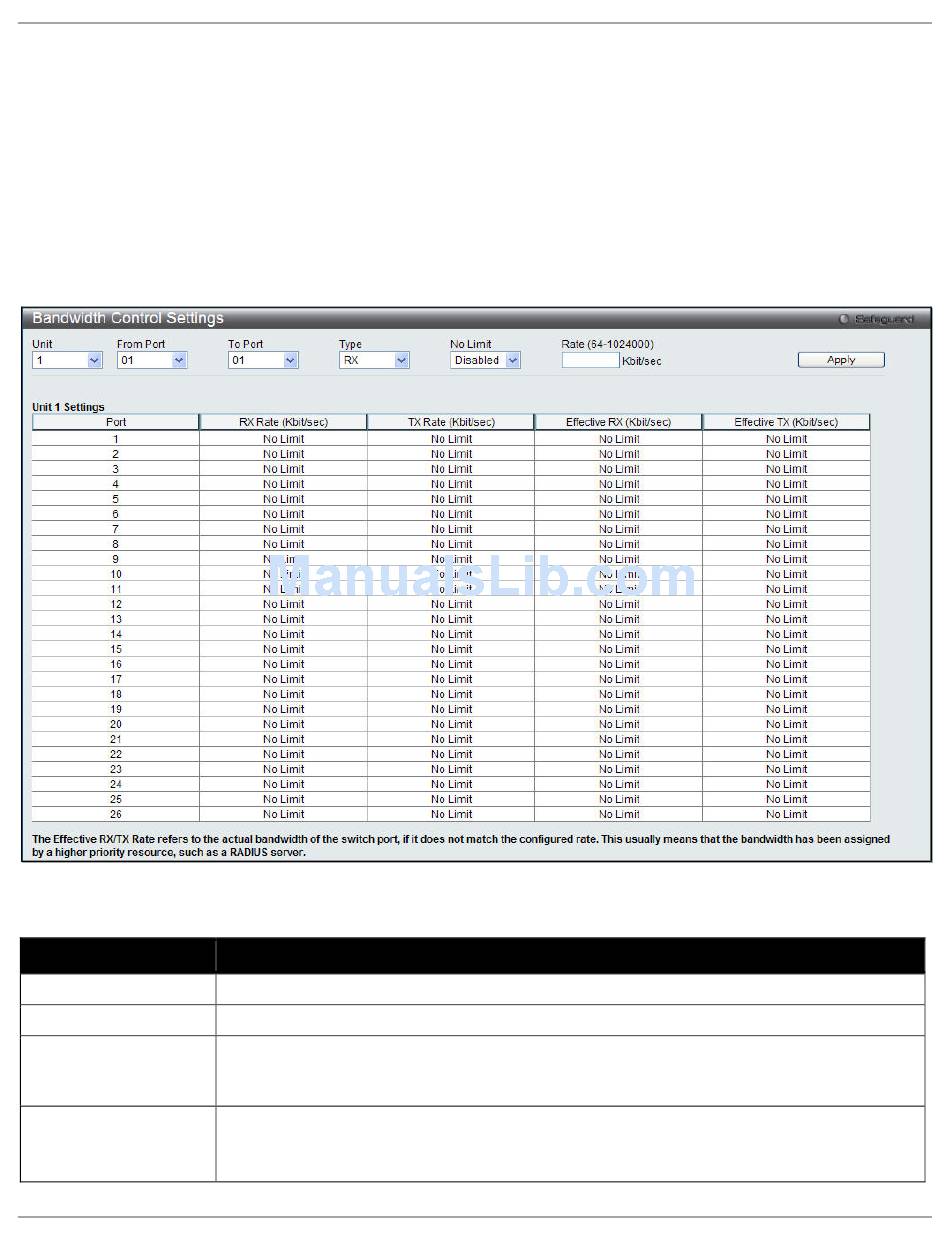

Figure 6-4 Bandwidth Control Settings window
Description
Select the unit to configure.
Use the drop-down menu to select the port range to use for this configuration.
This drop-down menu allows a selection between RX (receive), TX (transmit), and Both.
This setting will determine whether the bandwidth ceiling is applied to receiving,
transmitting, or both receiving and transmitting packets.
This drop-down menu allows the user to specify that the selected port will have no
bandwidth limit or not.
NOTE: If the configured number is larger than the port speed, it means no bandwidth limit.
