Collapse – To collapse the group that will be represented by a single icon.
•
Expand – To expand the SIM group, in detail.
•
Add to group – Add a candidate to a group. Clicking this option will reveal the following dialog box for the
user to enter a password for authentication from the Candidate Switch before being added to the SIM group.
Click OK to enter the password or Cancel to exit the dialog box.
•
Property – To pop up a window to display the device information.

Menu Bar

The Single IP Management window contains a menu bar for device configurations, as seen below.
File
•
Print Setup – Will view the image to be printed.
•
Print Topology – Will print the topology map.
•
Preference – Will set display properties, such as polling interval, and the views to open at SIM startup.
Group
•
Add to group – Add a candidate to a group. Clicking this option will reveal the following dialog box for the
user to enter a password for authentication from the Candidate Switch before being added to the SIM group.
Click OK to enter the password or Cancel to exit the dialog box.
•
Remove from Group – Remove an MS from the group.
Device

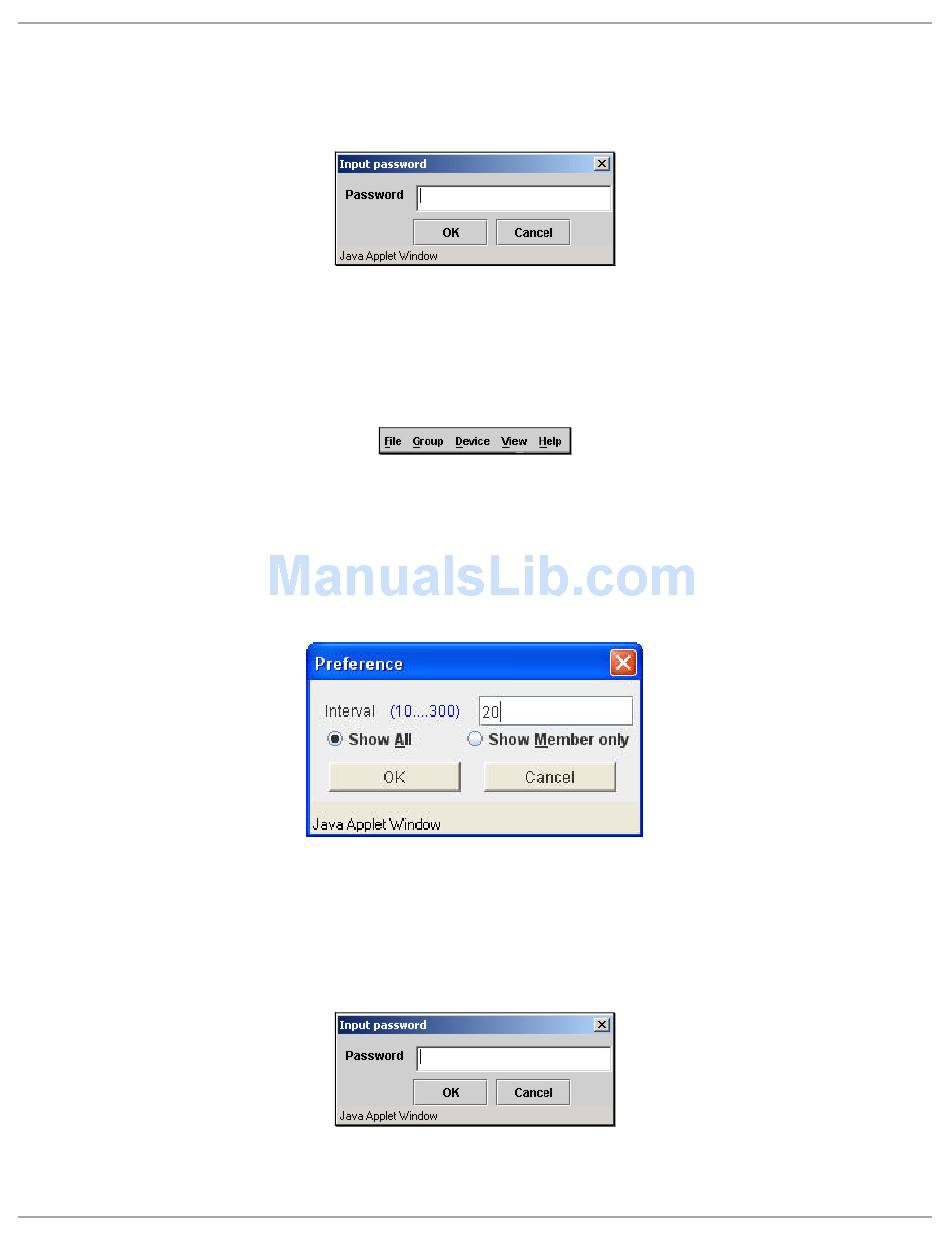

Figure 3-25 Input password window
Figure 3-26 Menu Bar of the Topology View
Figure 3-27 Preference window
Figure 3-28 Input password window
