Replace ToS
Precedence (0-7)
Time Range Name
Counter
Ports
VLAN Name
VLAN ID
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous page.
After clicking the Show Details button in the Access Rule List, the following page will appear:
Click the Show All Rules button to navigate back to the Access Rule List.

Adding an IPv4 ACL Profile

The window shown below is the Add ACL Profile window for IPv4. To use specific filtering masks in this ACL profile,
click the packet filtering mask field to highlight it red. This will add more filed to the mask.
After clicking the Add ACL Profile button, the following page will appear:
Specify that the IP precedence of the outgoing packet is changed with the new value. If
used without an action priority, the packet is sent to the default TC.
Tick the check box and enter the name of the Time Range settings that has been
previously configured in the Time Range Settings window. This will set specific times
when this access rule will be implemented on the Switch.
Select the counter. By checking the counter, the administrator can see how many times
that the rule was hit.
When a range of ports is to be configured, the Auto Assign check box MUST be ticked in
the Access ID field of this window. If not, the user will be presented with an error
message and the access rule will not be configured.
Specify the VLAN name to apply to the access rule.
Specify the VLAN ID to apply to the access rule.

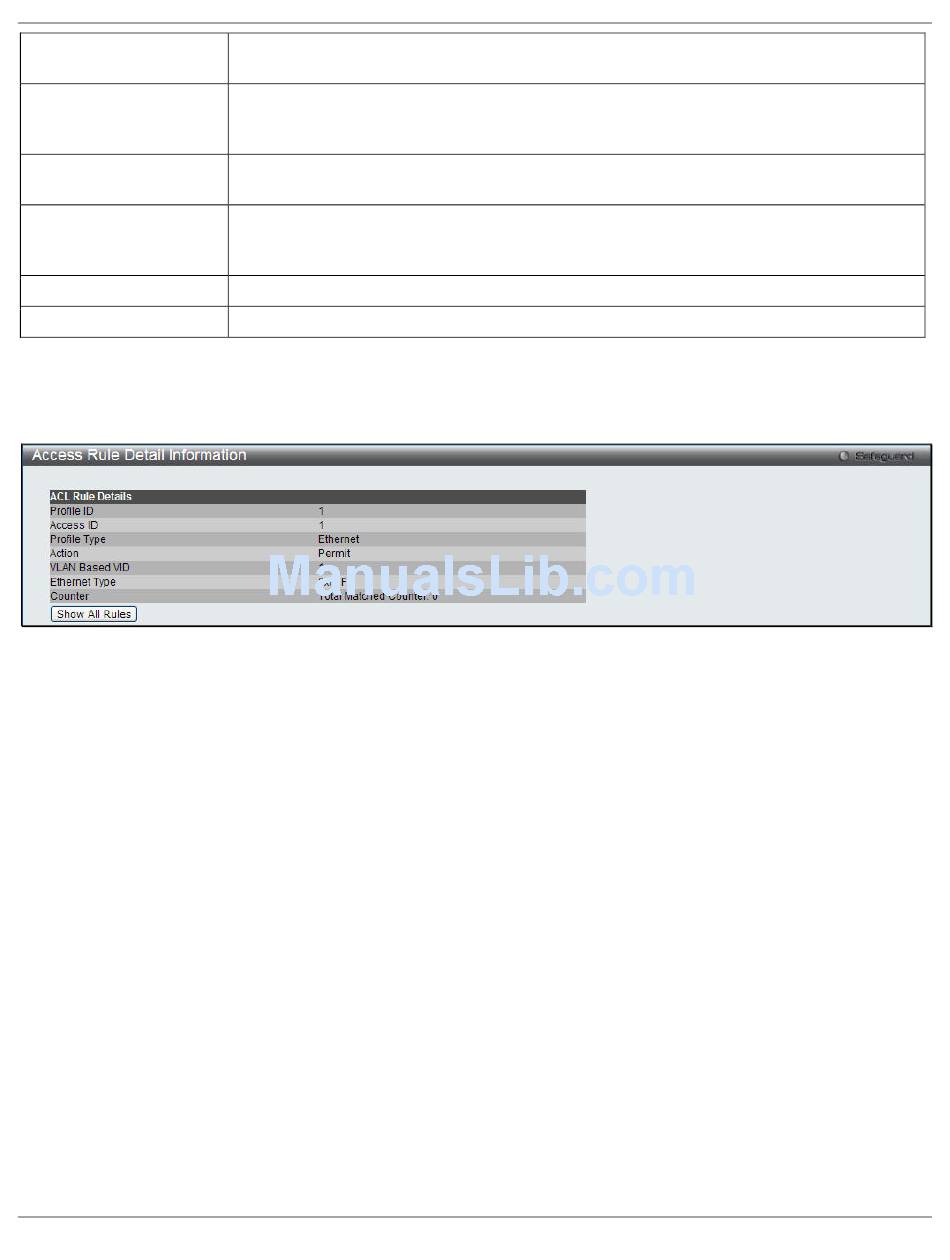

Figure 7-7 Access Rule Detail Information window (Ethernet ACL)
