Ping Test

Ping is a small program that sends ICMP Echo packets to the IP address you specify. The destination node then
responds to or "echoes" the packets sent from the Switch. This is very useful to verify connectivity between the Switch
and other nodes on the network.
To view this window, click Monitoring > Ping Test, as shown below:
The user may click the Infinite times radio button, in the Repeat Pinging for field, which will tell the ping program to
keep sending ICMP Echo packets to the specified IP address until the program is stopped. The user may opt to choose
a specific number of times to ping the Target IP Address by clicking its radio button and entering a number between 1
and 255.
The fields that can be configured are described below:
Parameter
Description
Select a unit to configure.
Use the drop-down menus to specify the list of ports to be configured.
The analyzer server ID specifies the ID of a server analyzer where the packet will be
forwarded.
The maximum number of seconds between successive samples of the counters. Tick
the Disabled check box to disable the function.

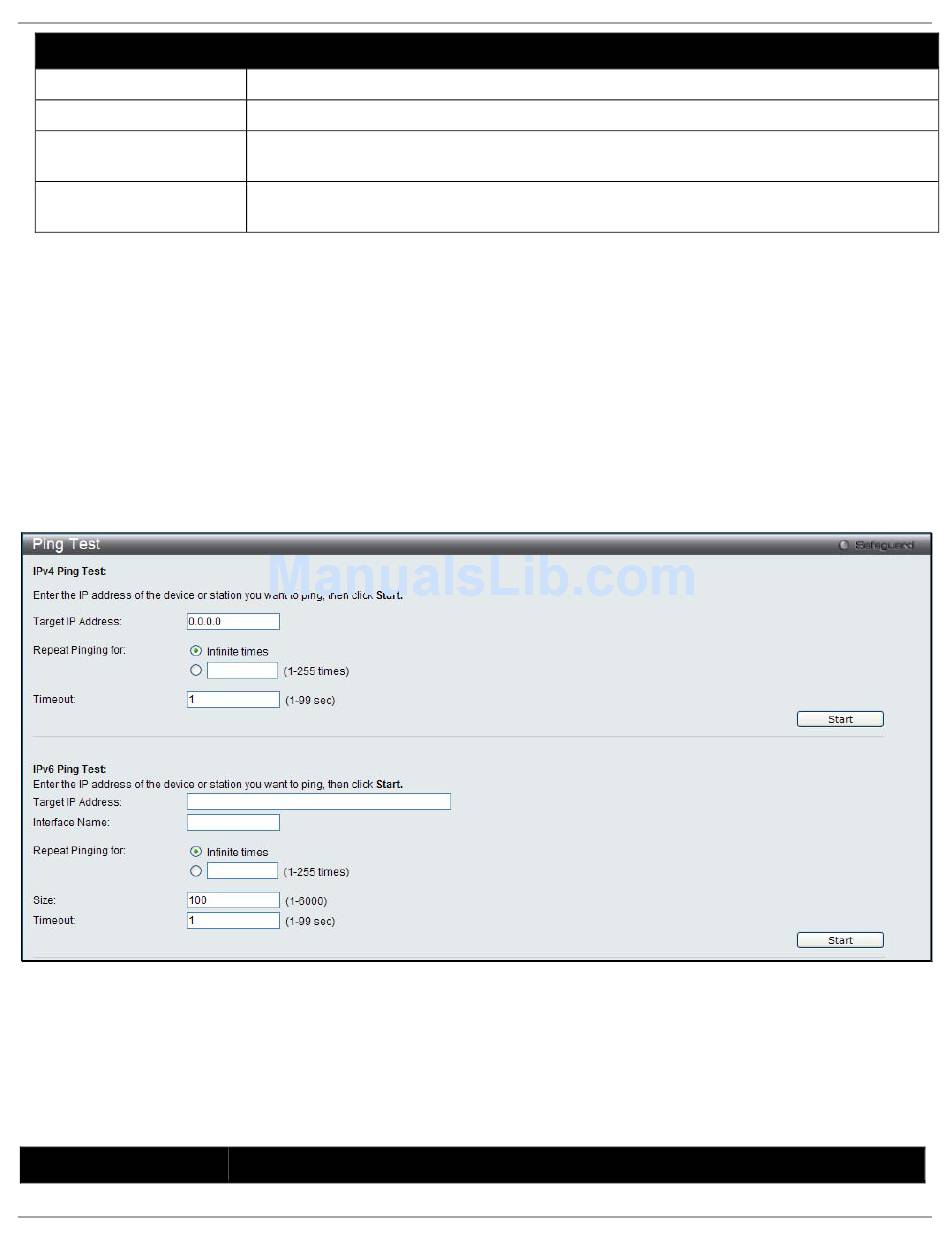

Figure 11-23 Ping Test window
