The fields that can be configured are described below:
Parameter
Ports / VID List
Max Group (1-1024)
Infinite
Action
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

Multicast Filtering Mode

Users can configure the multicast filtering mode.
To view the following window, click L2 Features > Multicast Filtering > Multicast Filtering Mode, as shown below:
The fields that can be configured are described below:
Parameter
VLAN Name/VID List
Multicast Filtering Mode

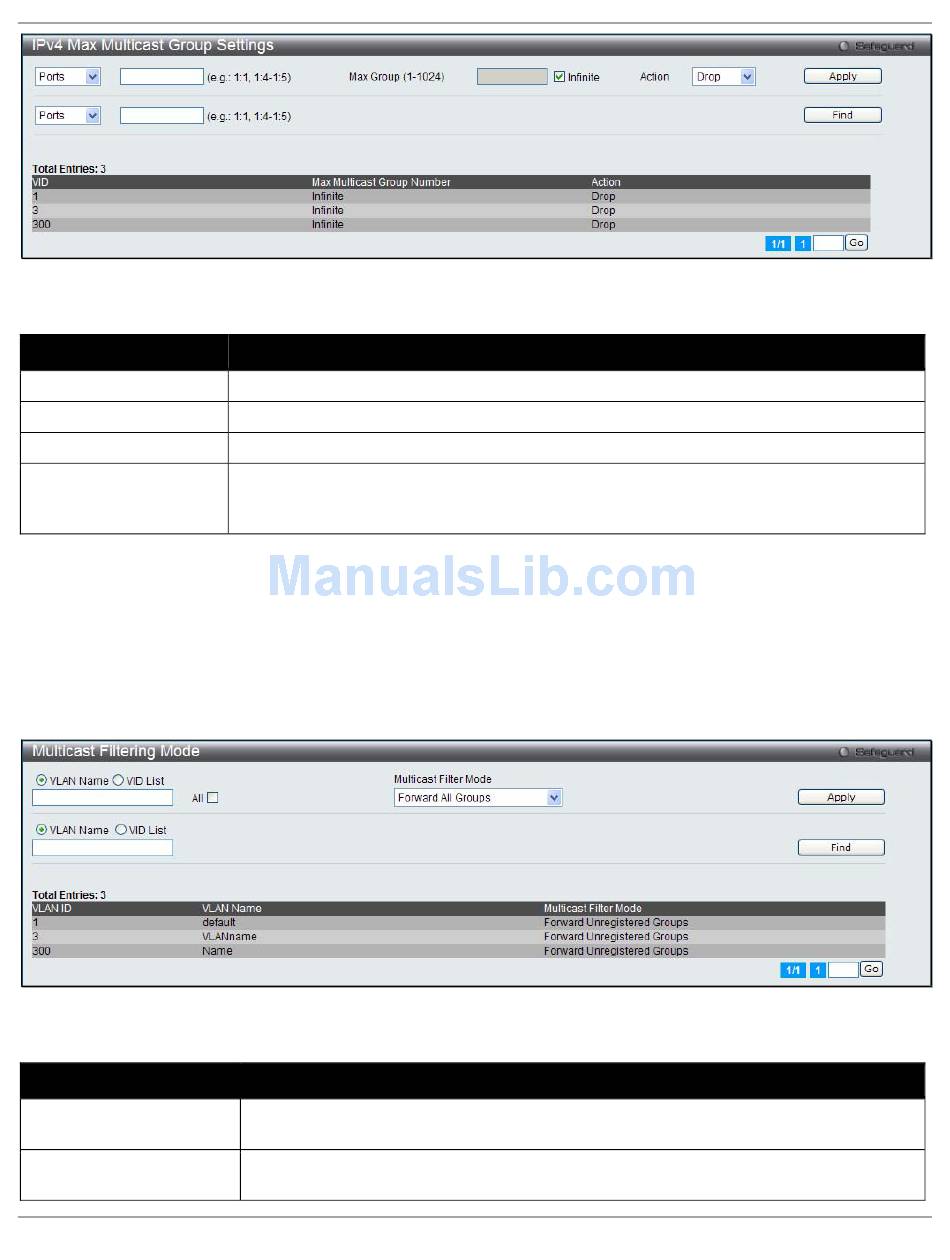

Figure 4-78 IPv4 Max Multicast Group Settings window
Description
Select the appropriate port(s) or VLAN IDs used for the configuration here.
If the check box Infinite is not ticked, the user can enter a Max Group value.
Tick the check box to enable or disable the use of the Infinite value.
Use the drop-down menu to select the appropriate action for this rule. The user can
select Drop to initiate the drop action or the user can select Replace to initiate the
replace action.
Figure 4-79 Multicast Filtering Mode window
Description
The VLAN to which the specified filtering action applies. Tick the All check box to apply
this feature to all the VLANs.
This drop-down menu allows you to select the action the Switch will take when it
receives a multicast packet that requires forwarding to a port in the specified VLAN.
