CFM Loopback Settings

This window is used to configure the CFM Loopback settings on the Switch.
To view this window, click OAM > CFM > CFM Loopback Settings, as shown below:
The fields that can be configured are described below:
Parameter
MEP Name (Max:32
characters)
MEP ID (1-8191)
MD (Max: 22 characters)
MA (Max: 22 characters)
MAC Address
LBMs Number (1-65535)
LBM Payload Length (0-
1500)
LBM Payload Pattern
(Max: 1500 characters)
LBMs Priority
Click the Apply button to implement the changes made.

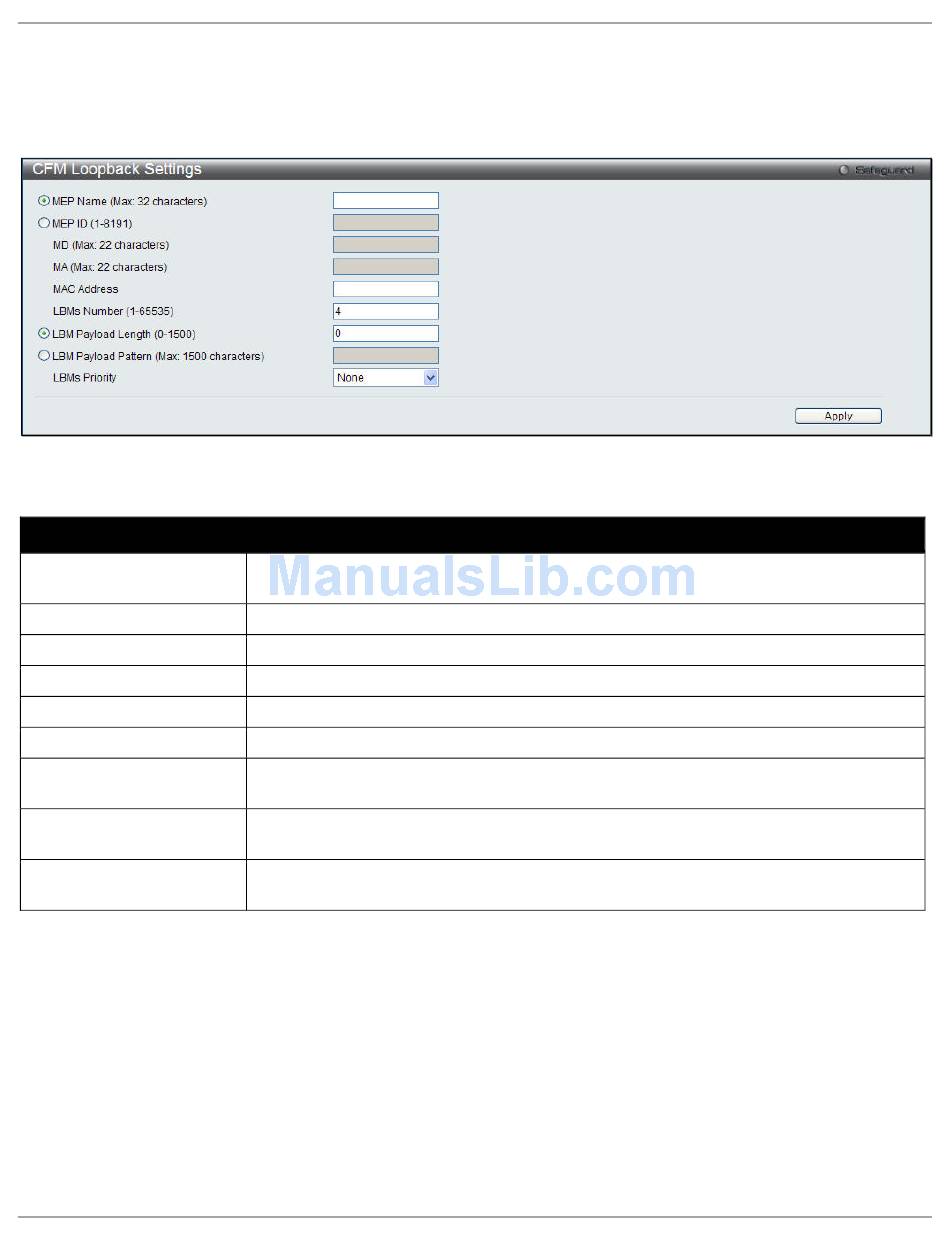

Figure 10-9 CFM Loopback Settings window
Description
The name of the Maintenance End Point.
The ID for the Maintenance End Point between 1 and 8191.
The Maintenance Domain Name.
The Maintenance Association Name.
The destination MAC address.
The number of LBMs to be sent the default value is 4.
The payload length of the LBM to be sent, the default value is 0.
The arbitrary amount of data to be included in a Data TLV, along with the indication of
whether the Data TLV is to be included.
The 802.1p priority to be set in the transmitted LBMs. If not specified it uses the same
priority as CCMs and LTMs sent by the MEP.
