xStack® DES-3528/DES-3552 Series Layer 2 Stackable Fast Ethernet Managed Switch Web UI Reference Guide
IPv6 Class
IPv6 Flow Label
IPv6 TCP
IPv6 UDP
IPv6 Source Mask
IPv6 Destination Mask
Click the Select button to select an ACL type.
Click the Create button to create a profile.
Click the <<Back button to discard the changes made and return to the previous page.
After clicking the Show Details button, the following page will appear:
Click the Show All Profiles button to navigate back to the Access Profile List Page.
After clicking the Add/View Rules button, the following page will appear:
Click the Add Rule button to create a new ACL rule in this profile.
Click the <<Back button to return to the previous page.
Click the Show Details button to view more information about the specific rule created.
Click the Delete Rules button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Add Rule button, the following page will appear:
Ticking this check box will instruct the Switch to examine the class field of the IPv6
header. This class field is a part of the packet header that is similar to the Type of
Service (ToS) or Precedence bits field in IPv4.
Ticking this check box will instruct the Switch to examine the flow label field of the
IPv6 header. This flow label field is used by a source to label sequences of packets
such as non-default quality of service or real time service packets.
Source Port Mask – Specify that the rule applies to the range of TCP source ports.
Destination Port Mask – Specify the range of the TCP destination port range.
Source Port Mask – Specify the range of the TCP source port range.
Destination Port Mask – Specify the range of the TCP destination port mask.
The user may specify an IPv6 address mask for the source IPv6 address by ticking
the corresponding check box and entering the IPv6 address mask.
The user may specify an IPv6 address mask for the destination IPv6 address by
ticking the corresponding check box and entering the IPv6 address mask.

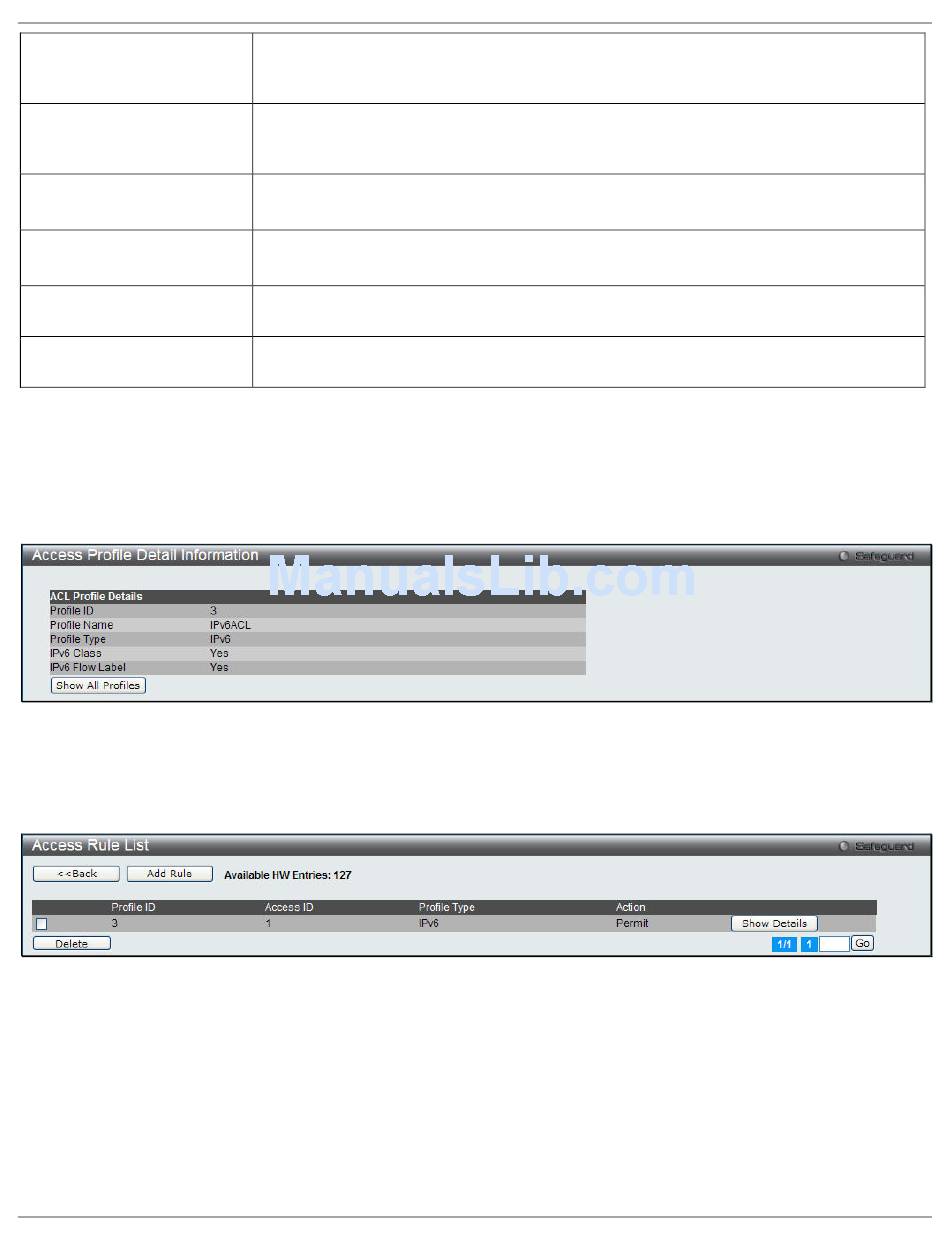

Figure 7-14 Access Profile Detail Information window (IPv6 ACL)
Figure 7-15 Access Rule List window (IPv6 ACL)
177
