The following section will explain the three roles of Client, Authenticator and Authentication Server in greater detail.
Authentication Server
The Authentication Server is a remote device that is
connected to the same network as the Client and
Authenticator, must be running a RADIUS Server program
and must be configured properly on the Authenticator
(Switch). Clients connected to a port on the Switch must be
authenticated by the Authentication Server (RADIUS)
before attaining any services offered by the Switch on the
LAN. The role of the Authentication Server is to certify the
identity of the Client attempting to access the network by
exchanging secure information between the RADIUS
server and the Client through EAPOL packets and, in turn,
informs the Switch whether or not the Client is granted
access to the LAN and/or switches services.
Authenticator
The Authenticator (the Switch) is an intermediary between
the Authentication Server and the Client. The
Authenticator serves two purposes when utilizing the
802.1X function. The first purpose is to request
certification information from the Client through EAPOL
packets, which is the only information allowed to pass
through the Authenticator before access is granted to the
Client. The second purpose of the Authenticator is to
verify the information gathered from the Client with the
Authentication Server, and to then relay that information
back to the Client.
Three steps must be implemented on the Switch to properly configure the Authenticator.
1. The 802.1X State must be Enabled. (Security / 802.1X /802.1X Settings)
2. The 802.1X settings must be implemented by port (Security / 802.1X / 802.1X Settings)
3. A RADIUS server must be configured on the Switch. (Security / 802.1X / Authentic RADIUS Server)
Client
The Client is simply the end station that wishes to gain
access to the LAN or switch services. All end stations
must be running software that is compliant with the
802.1X protocol. For users running Windows XP and
Windows Vista, that software is included within the
operating system. All other users are required to attain
802.1X client software from an outside source. The Client
will request access to the LAN and or Switch through
EAPOL packets and, in turn will respond to requests from
the Switch.

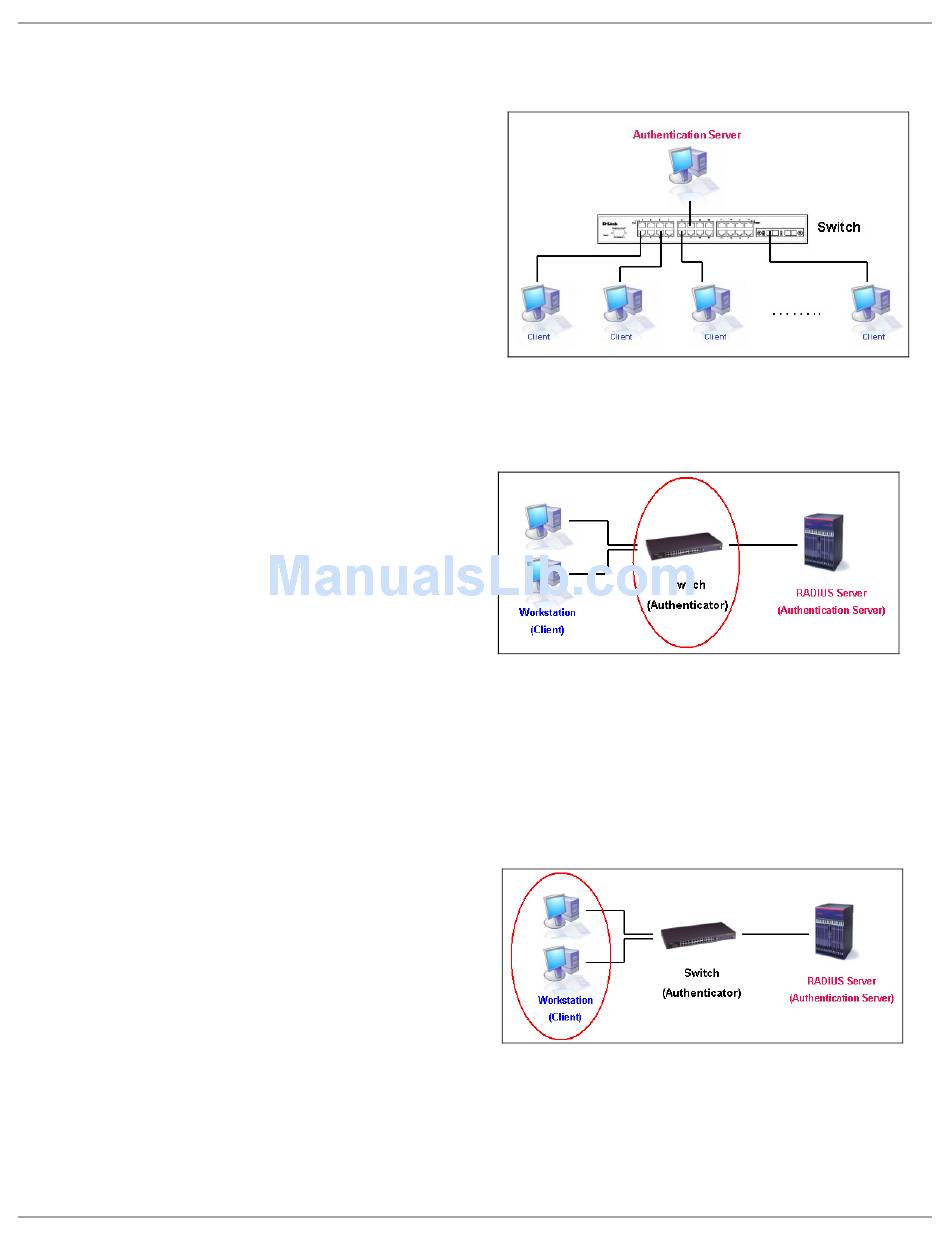

Figure 8-3 The Authentication Server
Figure 8-4 The Authenticator
Figure 8-5 The Client
