xStack® DES-3528/DES-3552 Series Layer 2 Stackable Fast Ethernet Managed Switch Web UI Reference Guide

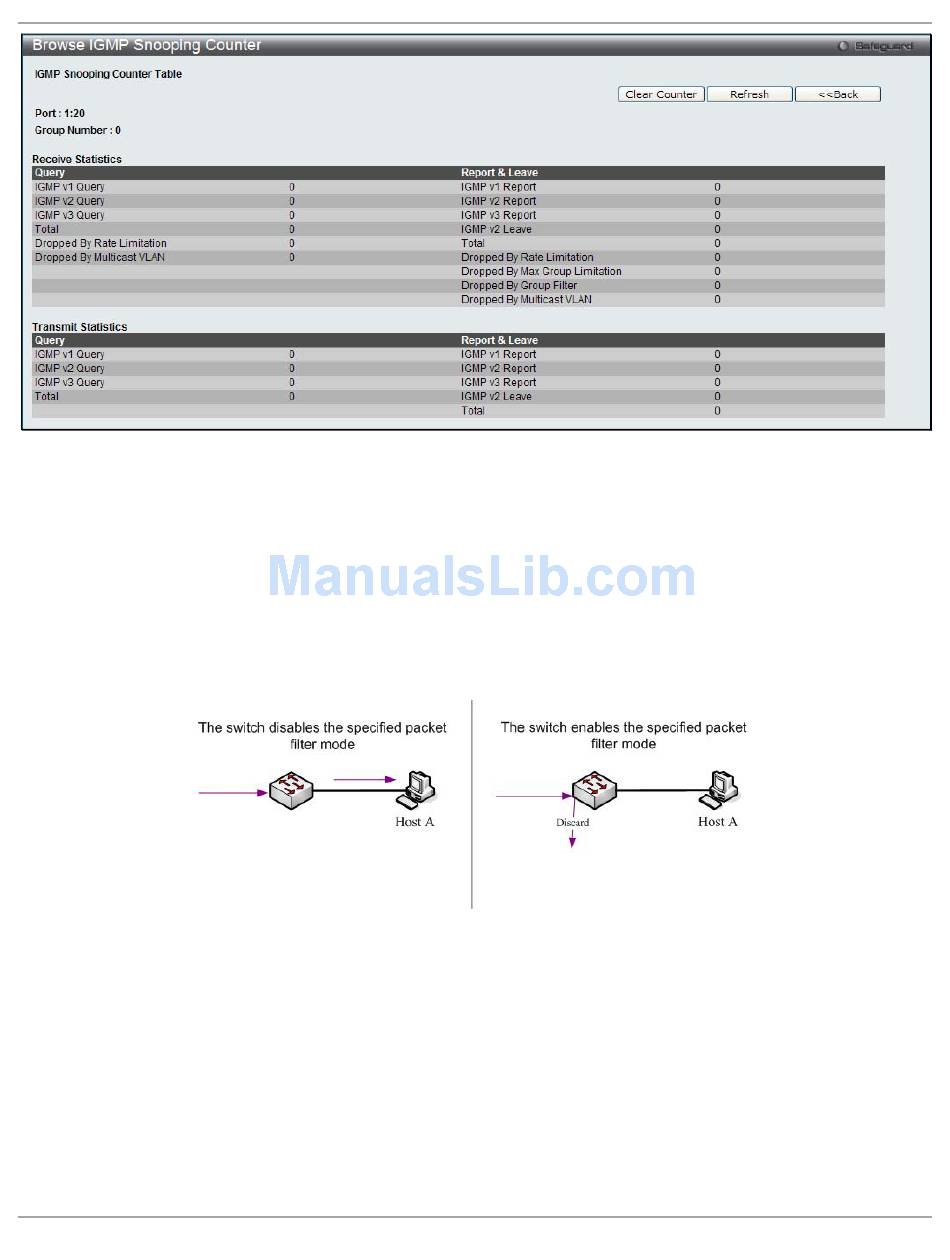

Figure 4-52 Browse IGMP Snooping Counter window
Click the Clear Counter button to clear all the information displayed in the fields.
Click the Refresh button to refresh the display table so that new information will appear.
Click the <<Back button to return to the previous page.

CPU Filter L3 Control Packet Settings

The CPU Filter L3 Control Packet Settings is used to discard the Layer 3 control packets sent to CPU from specific
ports.
Figure 4-53 Method of dealing with the specified packet
The above figure displays how the Switch handles the specified packets when enabling the function.
To configure these settings, click L2 Features > IGMP Snooping > CPU Filter L3 Control Packet Settings
106
