LLDP Dot3 TLVs Settings

This window is used to configure an individual port or group of ports to exclude one or more IEEE 802.3 organizational
specific TLV data type from outbound LLDP advertisements.
To view the following window, click L2 Features > LLDP > LLDP Dot3 TLVs Settings, as shown below:
The fields that can be configured are described below:
Parameter
Unit
From Port / To Port
MAC / PHY
Configuration Status
Link Aggregation

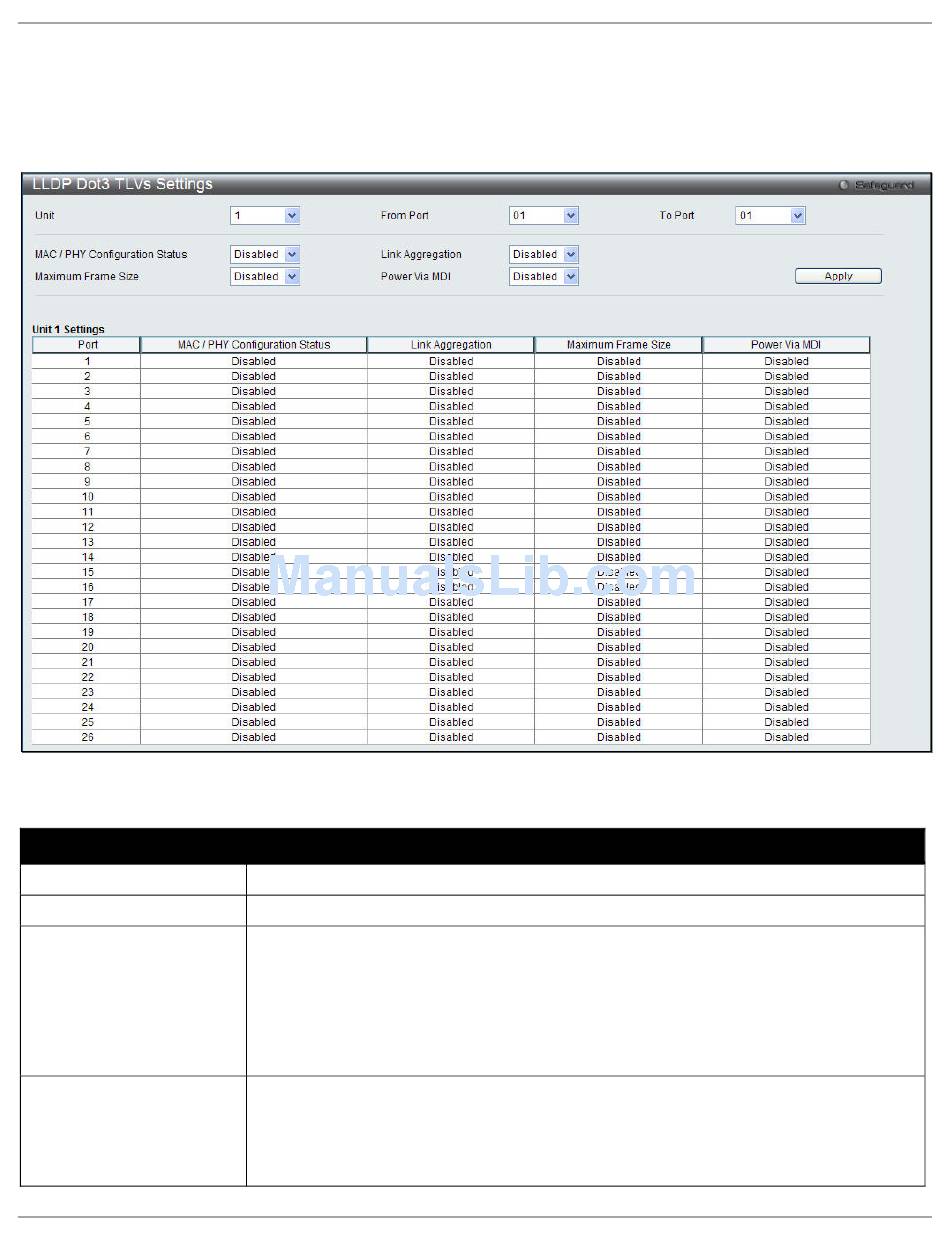

Figure 4-89 LLDP Dot3 TLVs Settings window
Description
Select a unit to configure.
Use the drop-down menu to select the port range to use for this configuration.
This TLV optional data type indicates that the LLDP agent should transmit the
MAC/PHY configuration/status TLV. This indicates it is possible for two ends of an
IEEE 802.3 link to be configured with different duplex and/or speed settings and still
establish some limited network connectivity. More precisely, the information includes
whether the port supports the auto-negotiation function, whether the function is
enabled, whether it has auto-negotiated advertised capability, and what is the
operational MAU type. The default state is Disabled.
The Link Aggregation option indicates that LLDP agents should transmit 'Link
Aggregation TLV'. This indicates the current link aggregation status of IEEE 802.3
MACs. More precisely, the information should include whether the port is capable of
doing link aggregation, whether the port is aggregated in an aggregated link, and what
is the aggregated port ID. The default state is Disabled.
