xStack® DES-3528/DES-3552 Series Layer 2 Stackable Fast Ethernet Managed Switch Web UI Reference Guide
Layer 3 commander switch
Commander switch of other group
Layer 2 member switch.
Non-SIM devices

Tool Tips

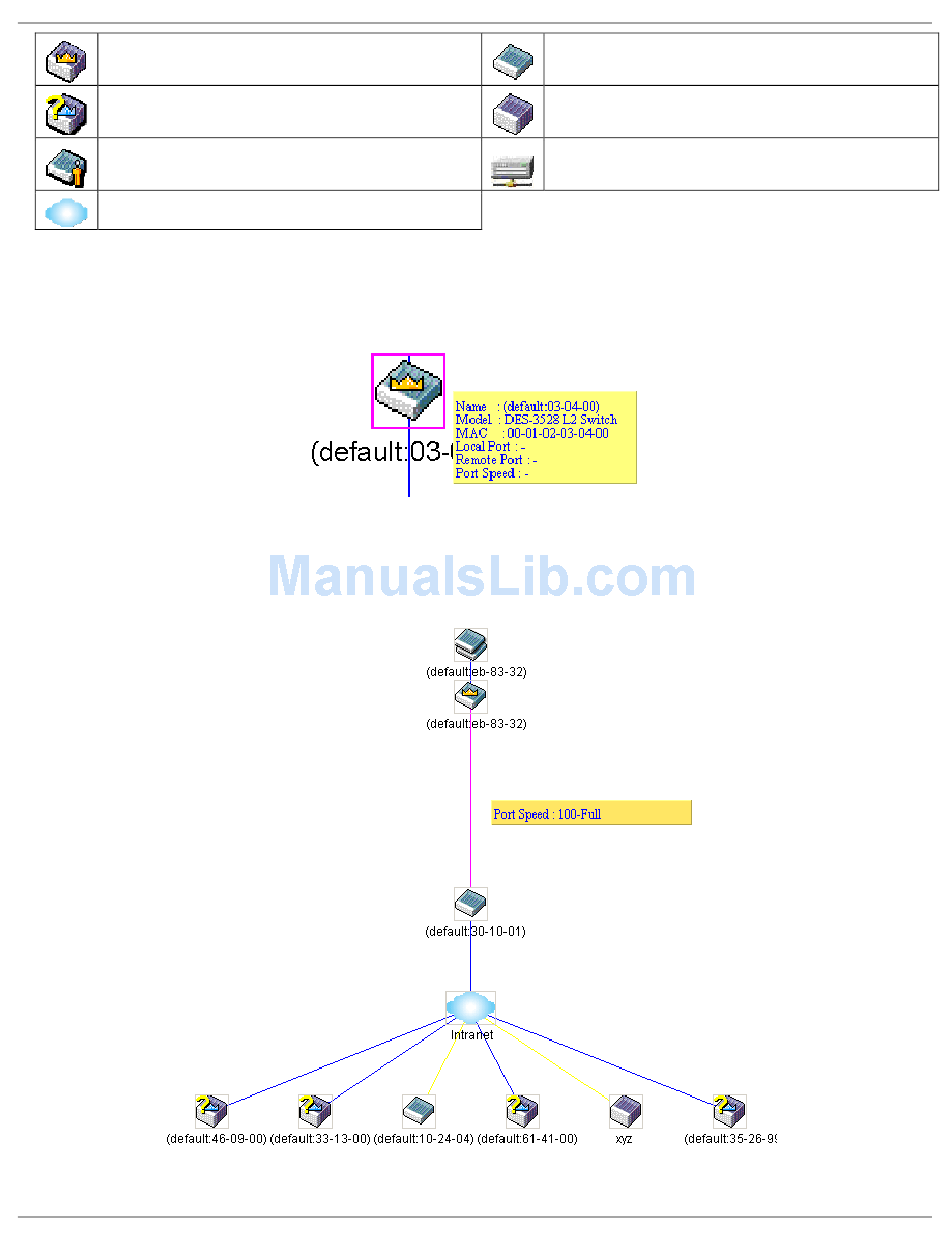

In the Topology view window, the mouse plays an important role in configuration and in viewing device information.
Setting the mouse cursor over a specific device in the topology window (tool tip) will display the same information
about a specific device as the Tree view does. See the window below for an example.
Setting the mouse cursor over a line between two devices will display the connection speed between the two devices,
as shown below.
Figure 3-18 Device Information Utilizing the Tool Tip
Figure 3-19 Port Speed Utilizing the Tool Tip
Layer 2 candidate switch
Layer 3 candidate switch
Unknown device
40
