xStack® DES-3528/DES-3552 Series Layer 2 Stackable Fast Ethernet Managed Switch Web UI Reference Guide
Click the <<Back button to discard the changes made and return to the previous page.
Click the Apply button to accept the changes made.
After clicking the View button, the following page will appear:
Click the <<Back button to return to the previous page.
field rewritten to a value stated in this field. Users may also choose to count green packets by
using counter parameter.
Replace DSCP – Packets that are in the green flow may have their DSCP field rewritten using
this parameter and entering the DSCP value to replace.
Counter – Use this parameter to enable or disable the packet counter for the specified ACL
entry in the green flow.
Exceed – This field denotes the yellow packet flow. Yellow packet flows may have excess
packets permitted through or dropped. Users may replace the DSCP field of these packets by
checking its radio button and entering a new DSCP value in the allotted field.
Counter – Use this parameter to enable or disable the packet counter for the specified ACL
entry in the yellow flow.
Violate – This field denotes the red packet flow. Red packet flows may have excess packets
permitted through or dropped. Users may replace the DSCP field of these packets by checking
its radio button and entering a new DSCP value in the allotted field.
Counter – Use this parameter to enable or disable the packet counter for the specified ACL
entry in the red flow.

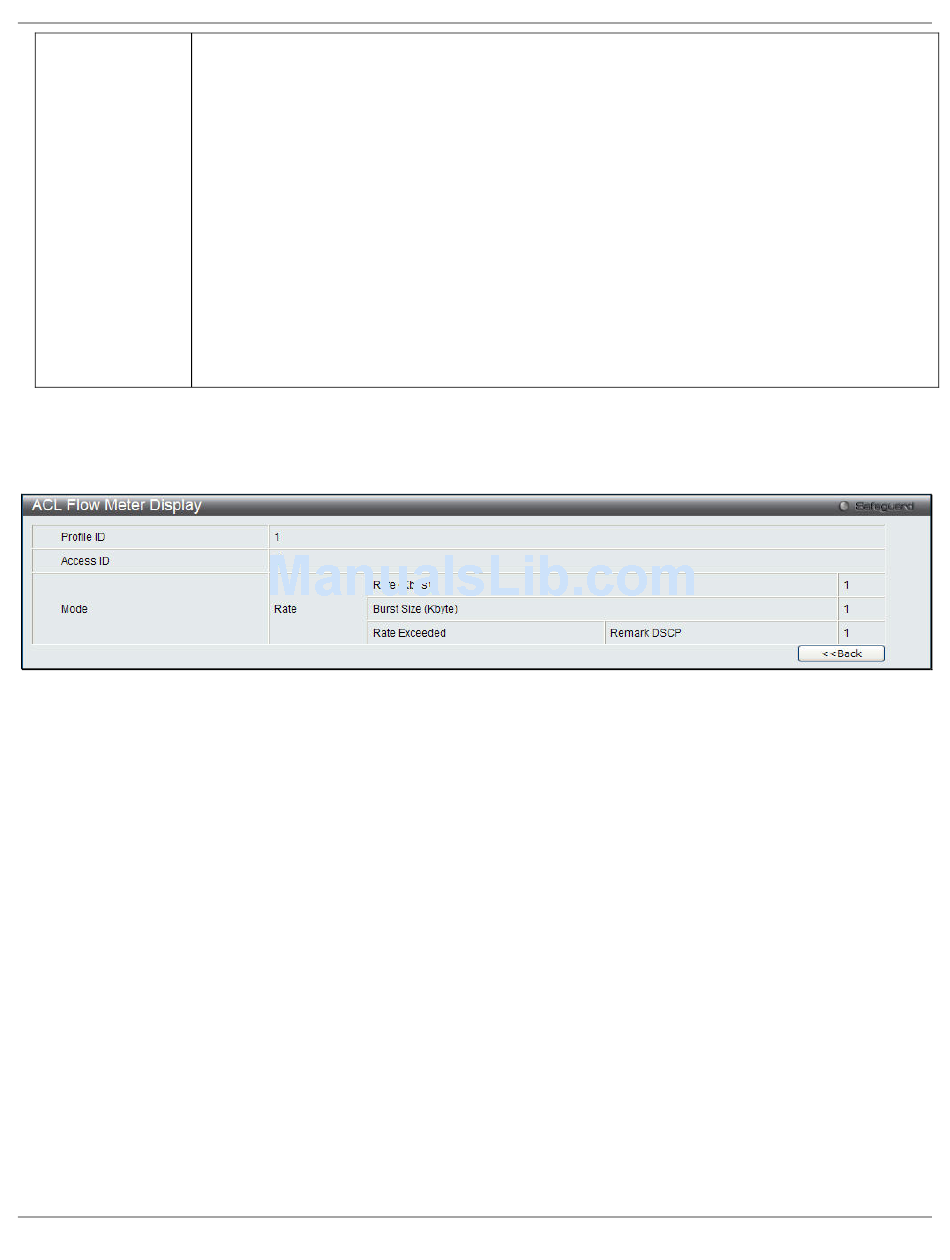

Figure 7-47 ACL Flow meter Display window
