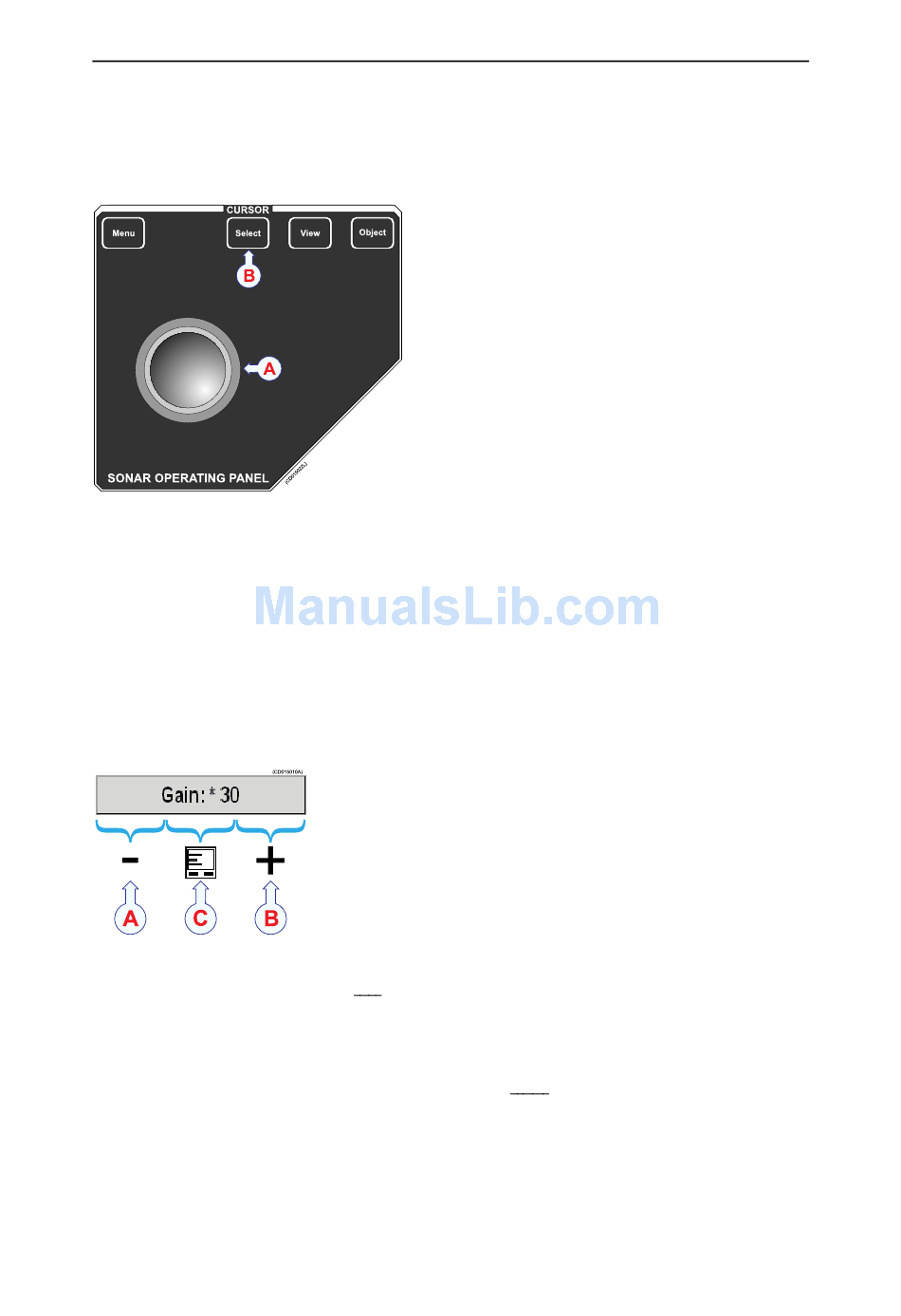

Control the cursor

Operate the trackball (A) on the Operating
Panel.
Observe that the cursor moves on the sonar
display, and that it changes its form depending
on its location.
Observe the location of the
Press this button to make a selection.
The
are used to open specific menus.

Menu buttons

Each menu contains several buttons. Each button shows both the
function and the current parameter. The majority of the buttons
in each menu field have three functions:
• You can select a lower parameter value.
• You can select a higher parameter value.
• You can open the applicable parameter dialog.
A Click here to decrease the parameter value
B Click here to increase the parameter value
C Click here to open the parameter dialog.
Use the trackball on the Operating Panel, and position the cursor
over the left side of the button (A). Observe that the shape of the
cursor changes to a "minus" sign. This means that the value of
the parameter will decrease when you press the
on the Operating Panel.
Position the cursor over the right side of the button (B). Observe
that the shape of the cursor changes to a "plus" sign. This means
that the value of the parameter will increase when you press the
button.
Select
and buttons above the trackball
View Object
button (B).
Select
button
Select
