Tx Power

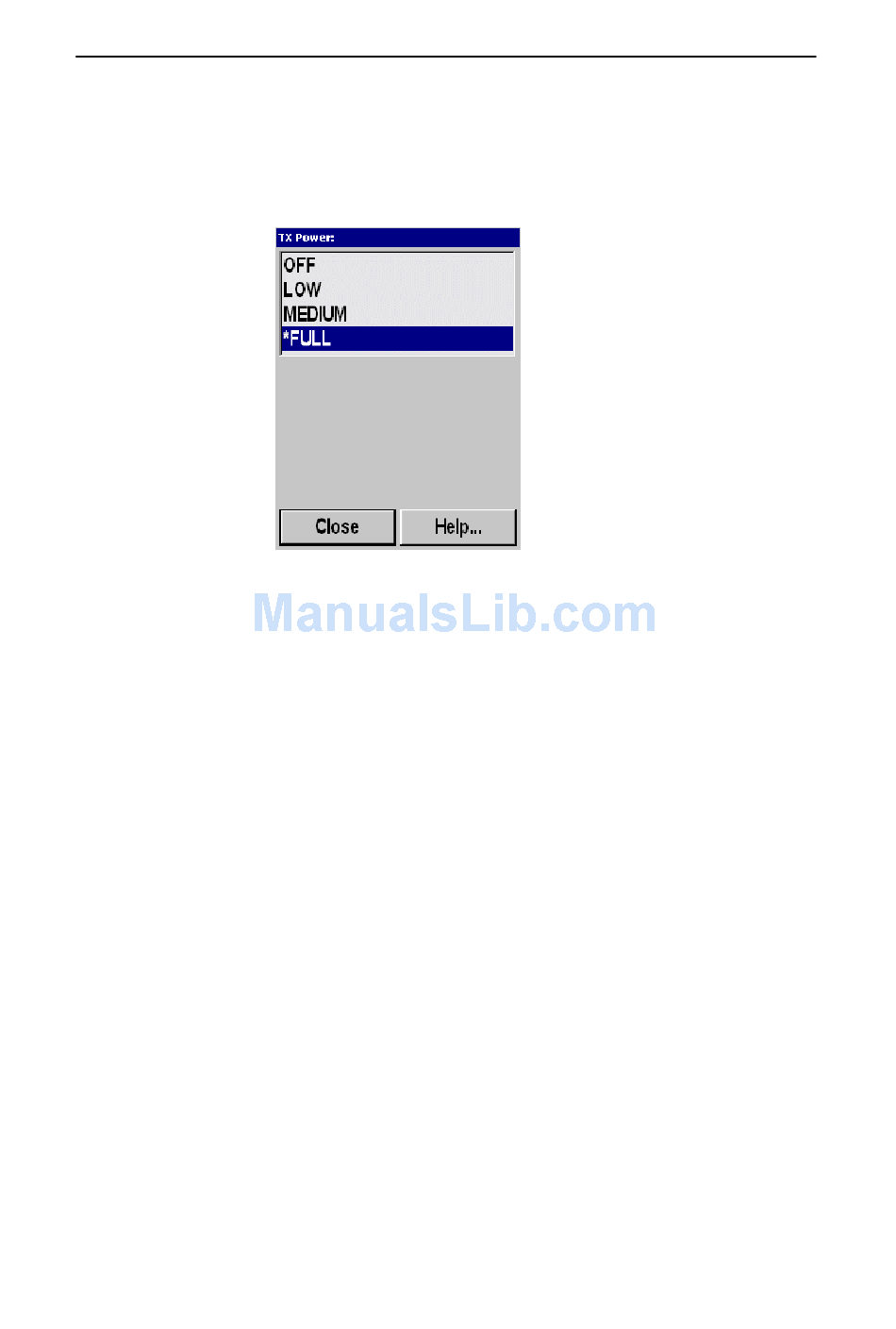

The Tx Power button is accessed from the Horizontal,
Vertical, Echo sounder and Trawl menus.
The TX Power is used to select the transmitter output power.
Note that the TX Power parameter is common for all the menus.
Thus, if the Tx Power is changed in one menu, it will
automatically also be changed in all other menus. The
transmitter operates with three different power settings in
addition to Off (passive). The output voltage can be checked on
the voltmeter in the Transceiver Unit. The following values are
obtained:
Full - 100 V
Medium - 50 V
Low - 25 V
Note that the output voltage can drop as much as 20% during
the transmission pulse.
