Inspect Object - Simrad SH90 - REFERENCE MANUAL REV A Reference Manual

323775/A
Heading dialog options
• + (plus): Click to increase the manual heading with 1 degree.
• – (minus): Click to decrease the manual heading with 1
degree.
• : Click to allow manual heading. Use this option only
Manual
if the ship's heading sensor is unavailable.
• : Click to use automatic heading information from the
Auto
ship's heading sensor.
• : Click to close the parameter dialog.
Close
• : Click to access the on-line help.
Help
Related topics
• Setup menu on page 98

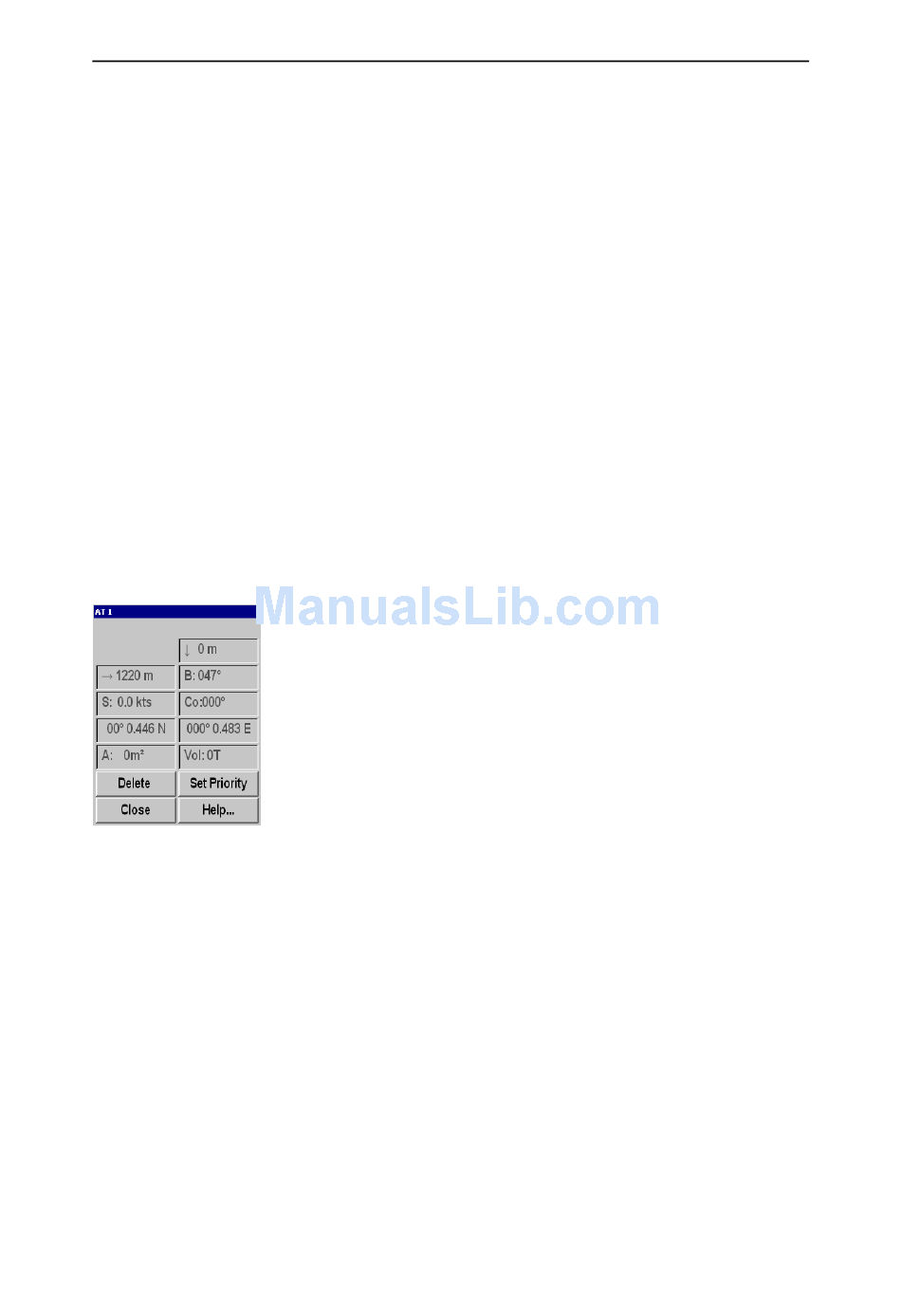

Inspect Object

Dialog description
The parameter dialog is either opened when you
Inspect Object
select a target marker in the
the cursor on the marker and pushes the
Operating Panel. You can also open this dialog directly from
the pop-up menu when you have placed the cursor over
Object
the target.
This parameter dialog displays the current parameters for the
chosen object. Note that every parameter may not be applicable
for all marker categories.
For more information about the Operating Panel, see 'Cursor'
field on page 85.
Inspect Object dialog options
• : This read-out shows the current depth of the chosen
Depth
object.
• : This read-out shows the current distance to the
Distance
chosen object.
• : This read-out shows the current bearing to the
Bearing (B)
chosen object.
• : This read-out shows the current speed of the chosen
Speed (S)
object.
• : This read-out shows the current course of the
Course (CO)
chosen object.
•
Geographical Position
geographical position of the chosen object.
menu, or when you place
Objects
Select
: This read-out shows the current
Parameters
button on the
139
