menu.
Limit factory setting is the rated output voltage/current/power of corresponding
model of the power supply.
Take the voltage limit setting for an example, the operating as follows:
1.
Press [Shift]+[Recall] (Protect) keys and enter to Protection menu.
2.
Press the up/down key or rotate the knob to select Maximum Voltage Limit
and press [Enter].
3.
Set the maximum Voltage limit, and press [Enter] to confirm.
4.3.7 Over-temperature protection (OTP)
When the temperature of the power component in the power supply exceeds
95°C, the temperature protection will be enabled. In this case, the power supply
will be automatically OFF, and the LCD will display OTP icon. At the same time,
the OT position in the status register will be set and kept until power supply is
reset.
Clearing over-temperature protection:
When the power supply temperature decreases to the protection temperature,
press [Shift]+[Esc] key on the front panel (or send the command
"PROTection:CLEar"). Then OTP on the power supply screen will disappear, and
the power supply will exit the OTP status.
4.4 LIST Function
The user can edit the test procedure composed of several steps with the List
function. With List function, a maximum of 100000 steps can be configured for
each List file. The user needs to edit the voltage/current value, slope and
duration of each step, and set certain repeated number of times and final state
for each List file. After the file is edited completely, you can trigger the selected
List file to run according to the selected trigger mode.

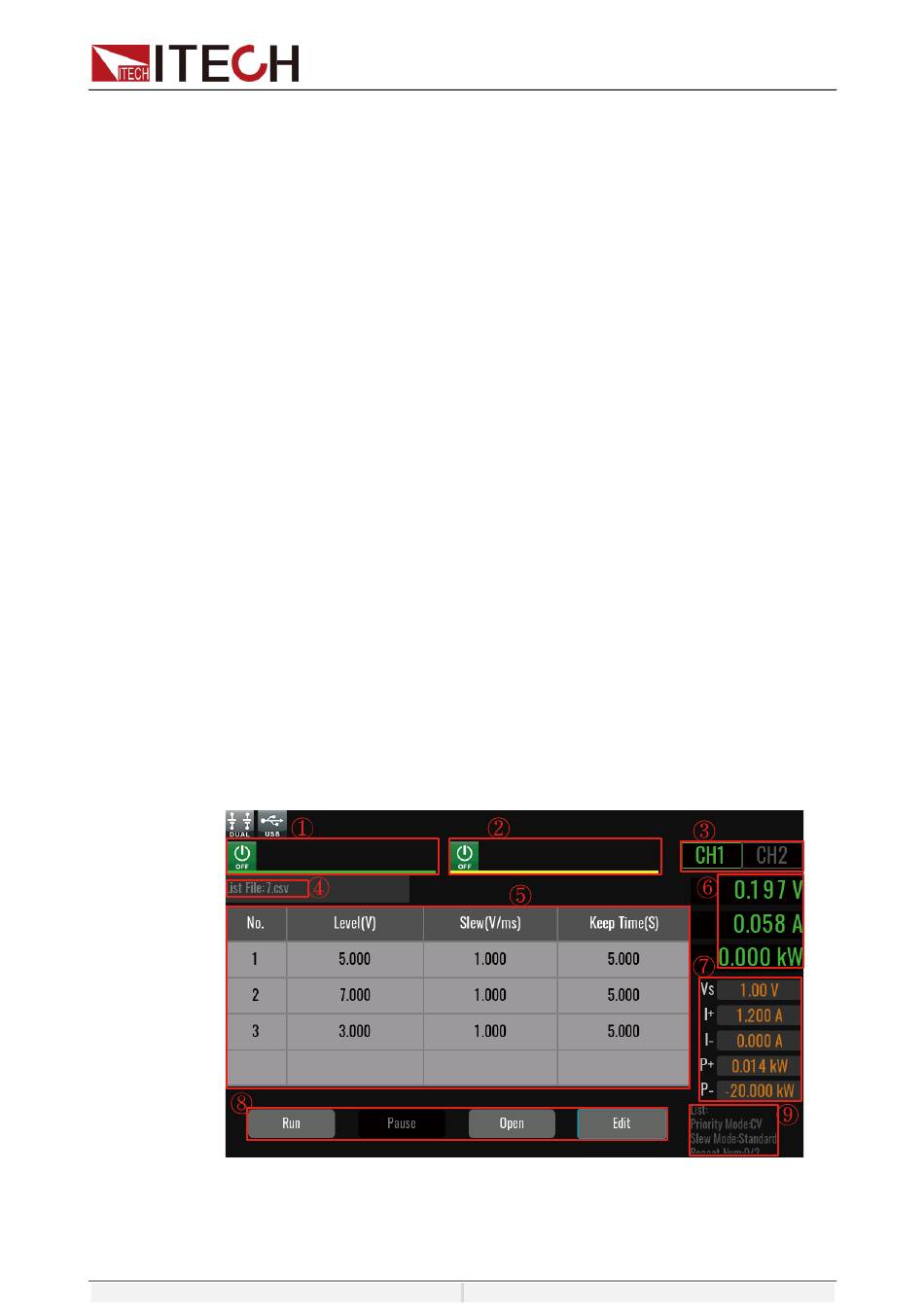

Introduction of List interface
1.
CH1 status bar: displays the output status of power channel 1.
2.
CH2 status bar: displays the output status of power channel 2.
