6.2 Oscilloscope Mode
IT6600 series source has the function of displaying the waveform based on
sampling data. The user can select to display or hide the voltage and current
waveform of the input unit. Only the necessary waveform is displayed, which
can facilitate observation. The waveform display interface includes the vertical
axis and horizontal axis.
Introduction of Waveform Display interface

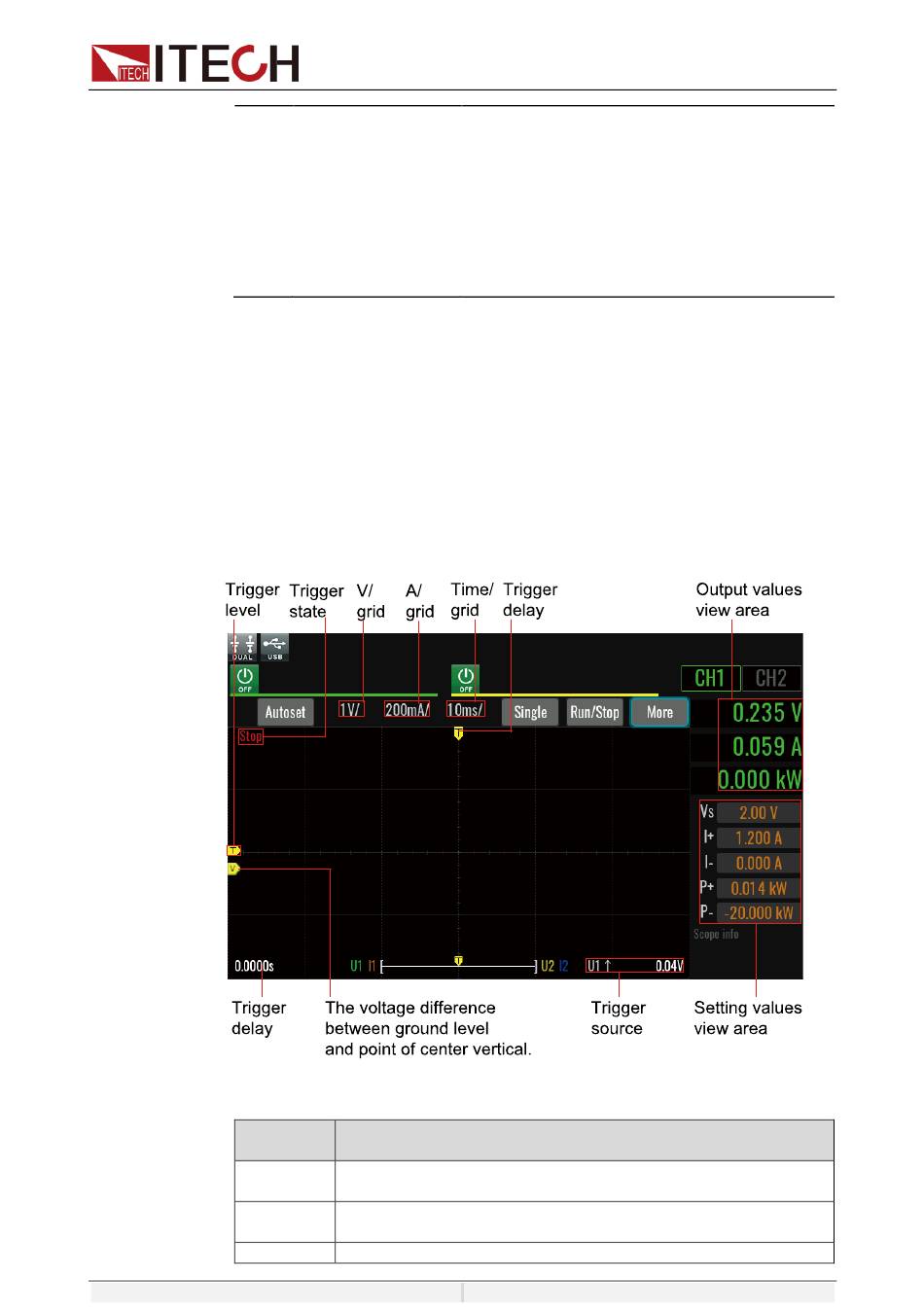

In the Menu display interface, click Scope to enter the waveform interface. See
the figure below.
The trigger status is described as follows:
Trigger
status
Auto
Roll
Trig

Setting values view
area for CH2

Instruction
Select the trigger mode as "Auto," with the trigger status
displayed as "Auto" when triggered.
Select the trigger mode as "Auto," with the trigger status
displayed as "Roll" when not triggered.
Select the trigger mode as "Normal," with the trigger status
Copyright ©ITECH Electronic Co., Ltd.
When CV is prioritized, the voltage
setting value, current upper limit value,
current lower limit value, power upper
limit value, and power lower limit value
are displayed.
When CC is prioritized, the current setting
value, voltage upper limit value, voltage
lower limit value, power upper limit value,
and power lower limit value are displayed.
Measurement Functions
