ITech IT6600C Series User Manual page 22

No.
1
2
3
4
5
6
7

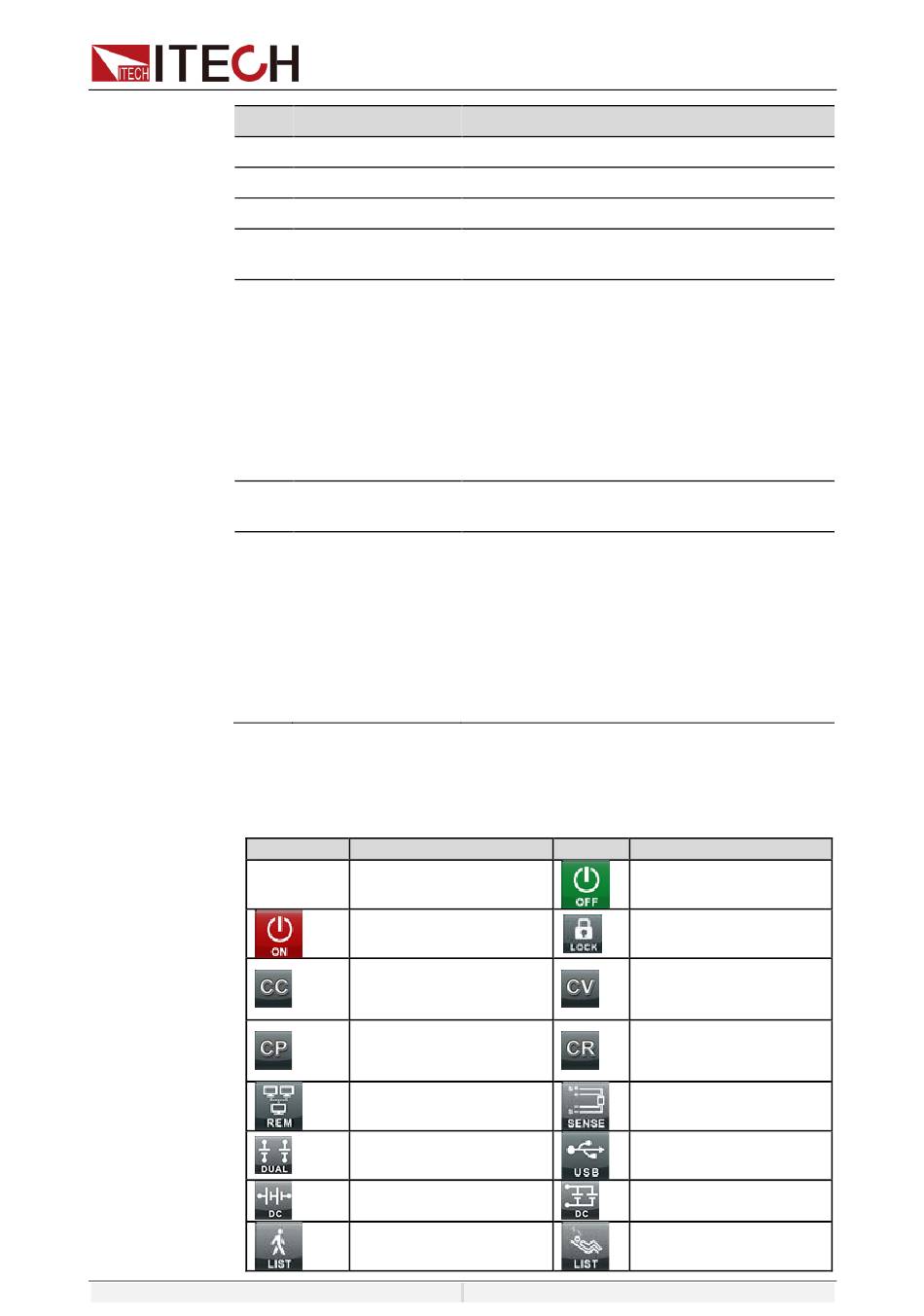

Introduction to Interface Symbols
The interface of IT6600 power supply will display the following symbols. All the
symbols and description are listed in the table below.
Char
Shift
Name Description
Power status bar Displays the present output status.
CH1 status bar Displays the output status of power channel 1.
CH2 status bar Displays the output status of power channel 2.
Output values view Displays the present output voltage, current
area for CH1 and power values.

Setting values view
area for CH1

Output values view Displays the present output voltage, current
area for CH2 and power values.

Setting values view
area for CH2

Function description
Compound key.
Output is on.
The power supply is in
a state of constant
current output.
The power supply is in
a state of constant
power output.
The DV source is in
remote mode.
2-channel independent
output mode.
2-channel series mode.
LIST is running.
Copyright ©ITECH Electronic Co., Ltd.
When CV is prioritized, the voltage
setting value, current upper limit value,
current lower limit value, power upper
limit value, and power lower limit value
are displayed.
When CC is prioritized, the current setting
value, voltage upper limit value, voltage
lower limit value, power upper limit value,
and power lower limit value are
displayed.
When CV is prioritized, the voltage
setting value, current upper limit value,
current lower limit value, power upper
limit value, and power lower limit value
are displayed.
When CC is prioritized, the current setting
value, voltage upper limit value, voltage
lower limit value, power upper limit value,
and power lower limit value are displayed.
Char Function description
Output is off.
Key operation is locked.
The power supply is in
a state of constant
voltage output.
The power supply
(Sink) is in constant
resistance state.
Sense indicator.
Found USB disk.
2-channel parallel
mode.
LIST is finished.
Quick Reference
13
