Hold-On/Hold-Off: Pause screen data refresh (for data observation)/ Start
dynamically observing the data

Auto: Automatically adjusts the scale of the appropriate vertical axis.

Time: The time value of each of the horizontal coordinates, unit is s/Div

Vernier: Position information of the vernier caliper.

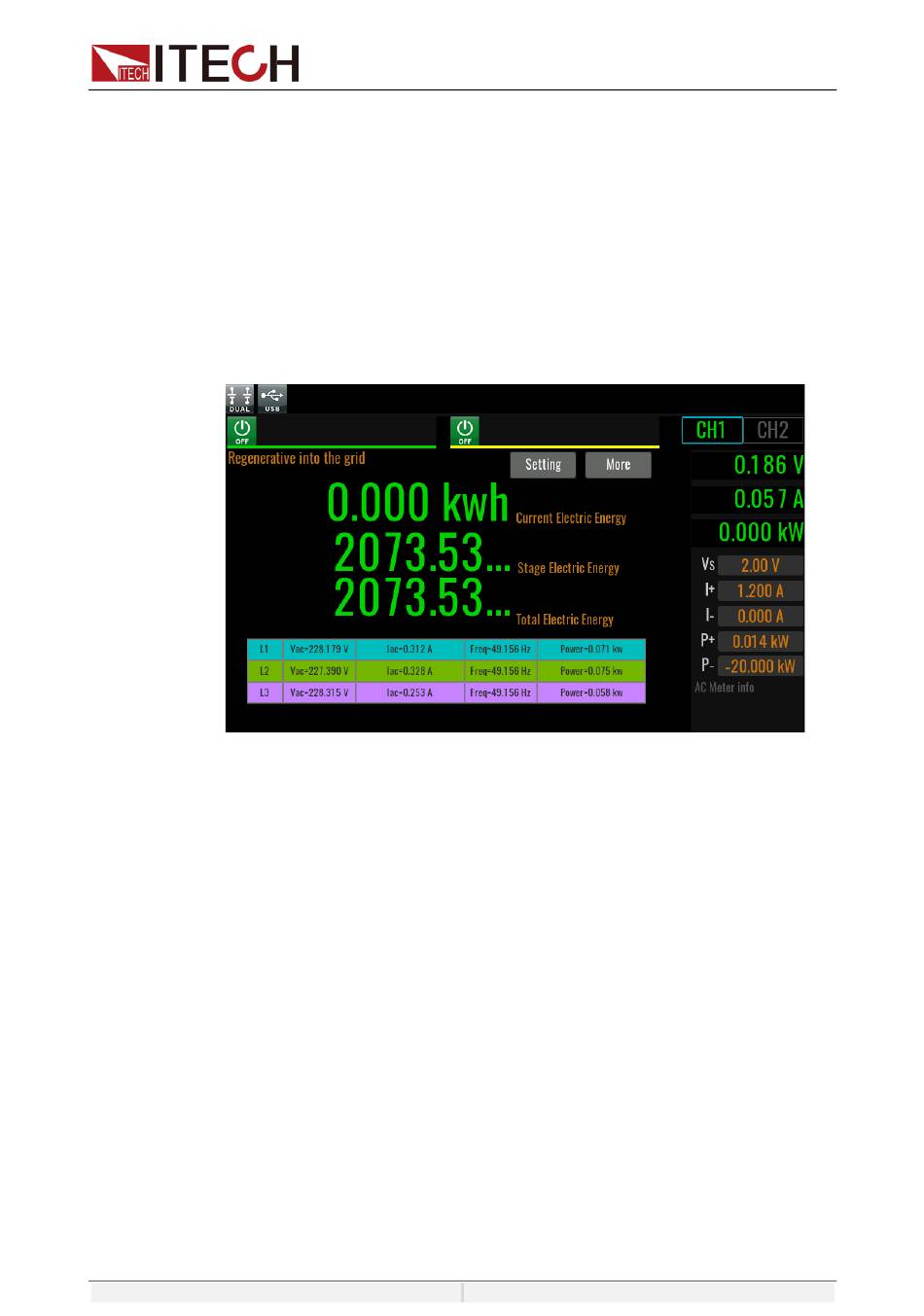

6.4 Query the Energy
IT6600 series power supply provides the energy statistics function, including
voltage, frequency and power of each phase as well as current electric energy,
stage electric energy and total electric energy. In the Menu display interface,
click AC Meter to enter the energy query interface.

Setting: enter the setting interface and select Clear to zero the current
electric energy and stage electric energy.

More: enter the More interface to query more historical information.
