ITech IT6600C Series User Manual page 35

The yellow-green wire is grounding wire, which is connected to the PE terminal
of power input on the rear panel; the others are live wires, which are
correspondingly connected to the L1, L2 and L3 terminals of power input on the
rear panel of the instrument.
AC Power Input Level
The AC input of this series is a three-phase AC power (three-phase four-wire)
by default, the detailed specifications refer to Technical Specifications.
Please pay attention to the AC input voltage level.
NOTE

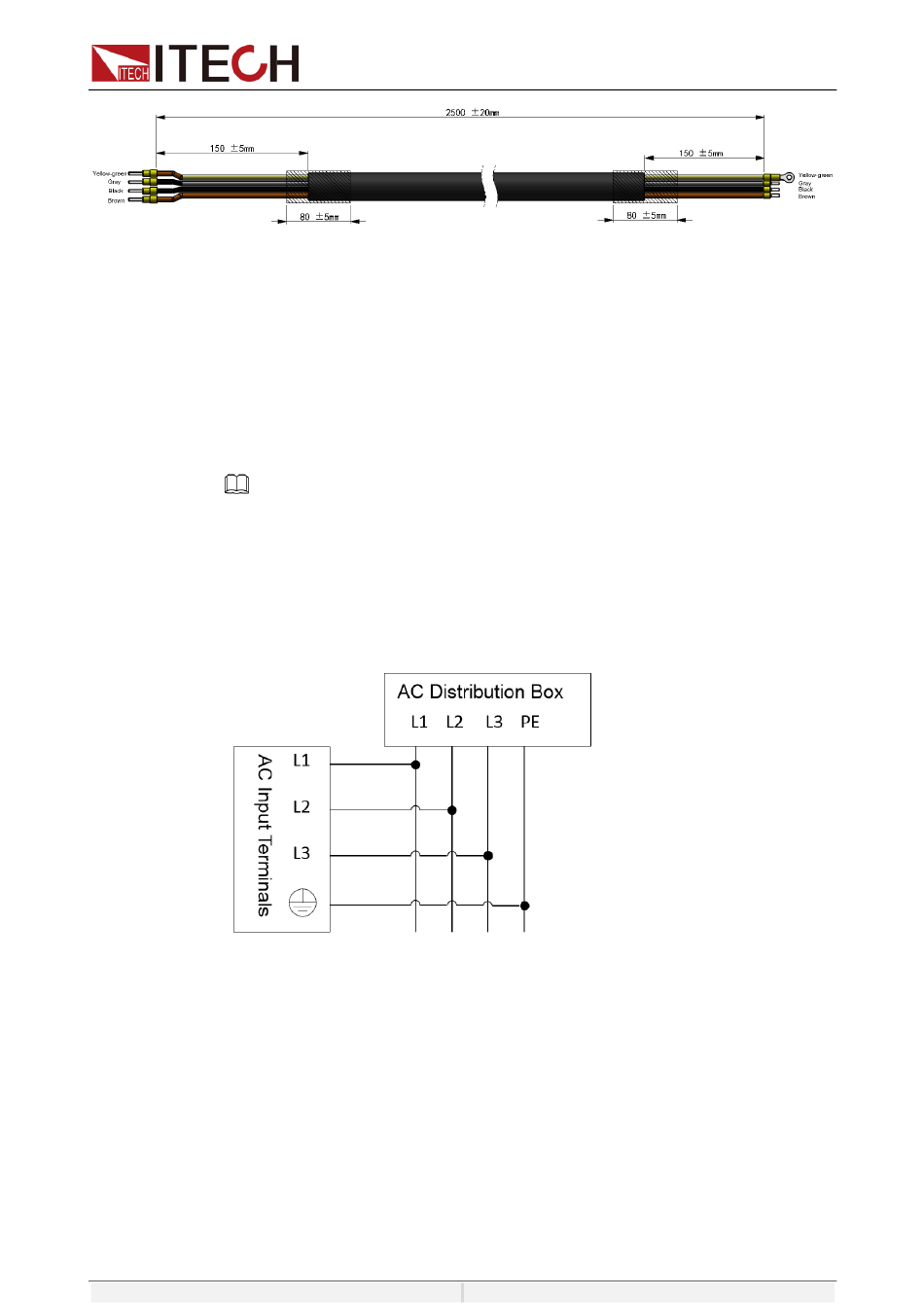

Connecting the Power Cord
The AC input is three phase and balanced, connecting the power cord as below.
Operation procedures:
1. Confirm that the switch of the AC power distribution box is off.
2. Confirm that the power switch is in the OFF position and verify that there is
no dangerous voltage on the connection terminals.
3. Connect the end of the power cord with the round terminal (ground terminal)
to the AC power input terminal on the rear panel of the instrument.
a) You only need to connect the brown/black/gray live wires to the
b) The yellow-green wire is grounding wire, which is connected to the
When the instrument input three-phase line voltage is ( 198 to 264 ) V, 50% of the rated
power is output at 40℃ ring temperature and 40% of the rated power is output at 50℃
ring temperature. When the output exceeds the present rating, the instrument enters AC
Input Overcurrent protection and the output is turned off. If a full power output is required,
the AC input level Voltage must be greater than 264V.
terminals on the rear panel, which are not required to correspond to L1,
L2 and L3 terminals one by one.
protective grounding terminal (PE).
Copyright ©ITECH Electronic Co., Ltd.
Inspection and Installation
26
