3. Fill in corresponding parameter in the Bat-SIM edit interface, Press
[Save].
4. Press [Esc] to return and the interface appears with the edited Bat-SIM
file.


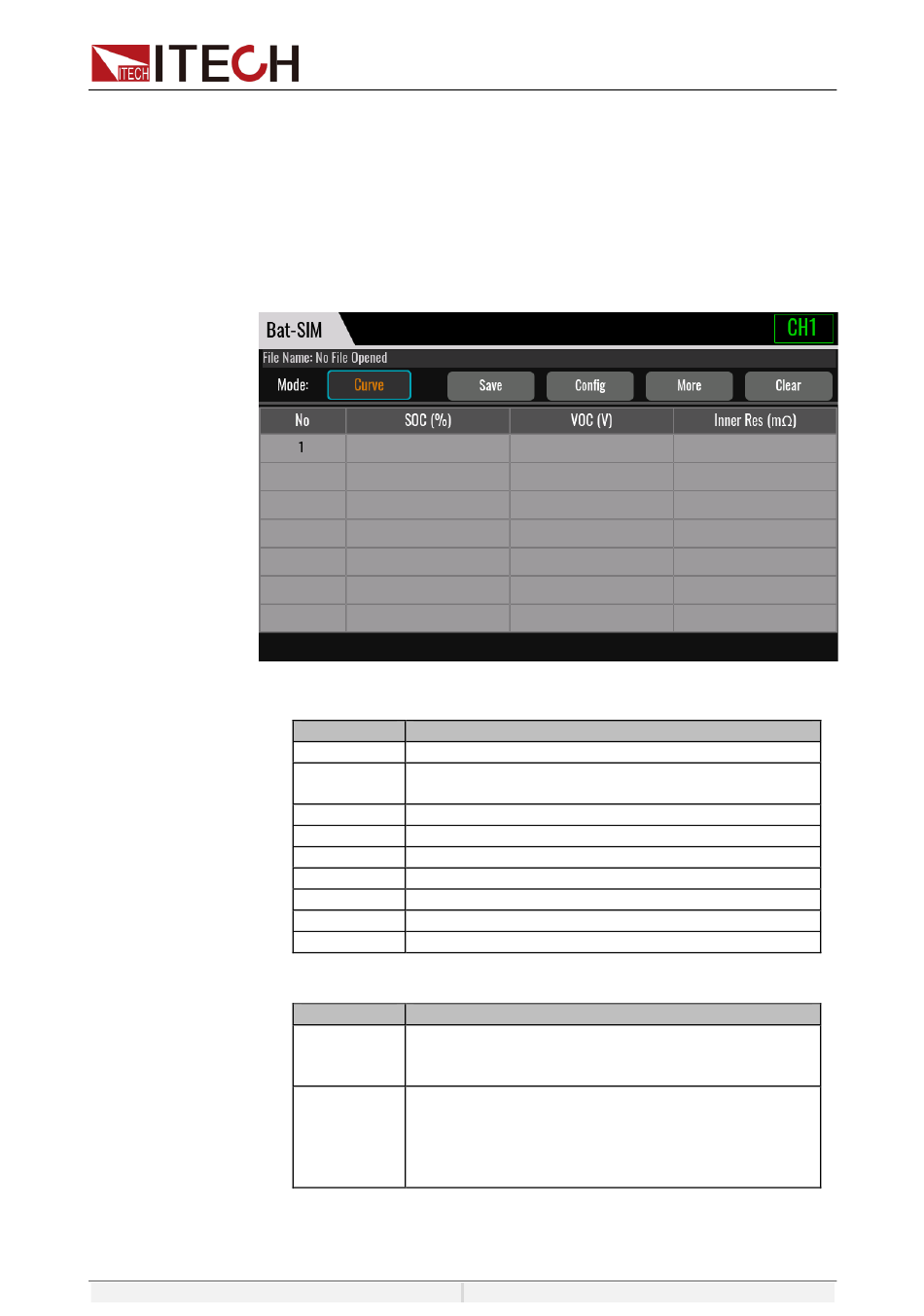

Edit battery simulation curve file
1. Click BMS on the Menu screen to enter the Bat-SIM function main
interface.
2. Press [Edit] and enter to the Bat-SIM file edit interface.
Bat-SIM edit description:
Parameter
File Name
Mode
Save
Config
More
Clear
SOC(%)
VOC
Inner Res
The introduction of More interface parameters is as follows:
Parameter
Single Cell
Settings
Protection
Settings
Copyright ©ITECH Electronic Co., Ltd.
Description
Display Bat-SIM file name.
Select the Bat-SIM working mode Userdefined or
Curve.
Save the Bat-SIM file.
Configure the Bat-SIM file to make it effective.
More configurations.
Clear the battery characteristic data under editing.
The capacity in percentage.
The open-circuit voltage of the battery.
The battery resistance.
Description
Sets the properties of a single cell.

Capacity: Simulates the capacity of a cell
battery.

Soc High: Upper limit of charge soc.

Soc Low: Lower limit of discharge soc.

Charge Curr Max: Upper limit of charge current.

Discharge Curr Max: Lower limit of discharge
current.
Power Supply Function
