ITech IT6600C Series User Manual page 140

4. Insert the USB disk into the USB interface of the front panel.
5. Click SAS on the Menu screen to enter the SAS function main interface.
6. Click the [Open] key on the screen, enter to SAS recall interface.
7. Click usb, select the 5.csv file in the usb, and click [Open] to confirm.

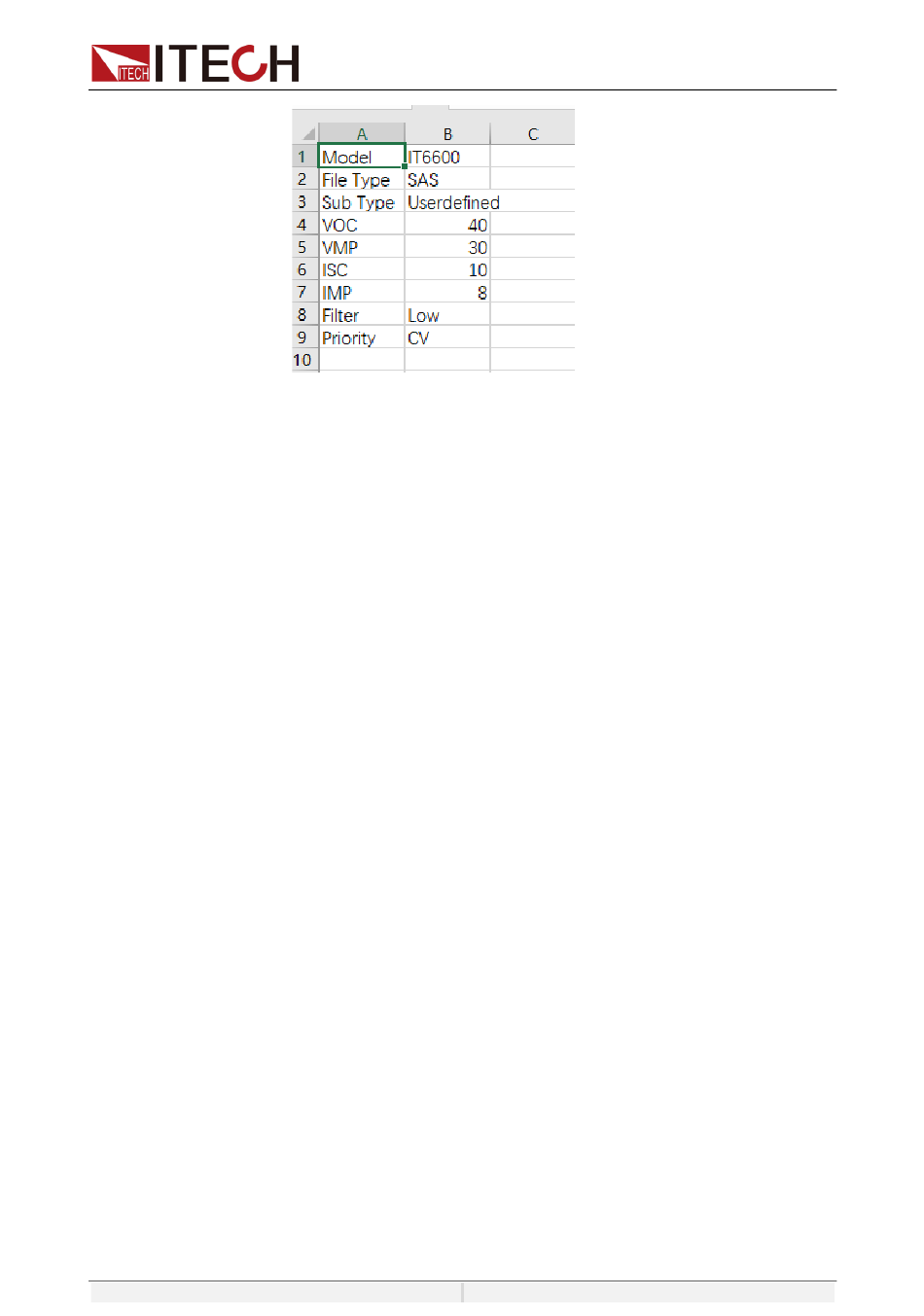

The PV Curve file will be imported and the configured 5.csv file will
appear in the interface.

Export PV Curve file
After editing the PV Curve file, the user can directly save it into the device
or export and save it into the peripheral memory disc. The exported PV
Curve file is saved in the format of. (*.csv). Detailed operation steps are as
below:
1. Insert the U disk into the USB interface of the front panel. (The USB
type needs to be set as Host.)
2. Click SAS on the Menu screen to enter the SAS function main interface.
3. Click the [Edit] key on the screen, enter to PV Curve file edit interface.
4. Click the [Save] key to enter the SAS save interface.
5. Click usb, set the FileName of the exported file, and click [Save] to
confirm the export. Then you can export the PV Curve file from Edit
interface to USB disk.
