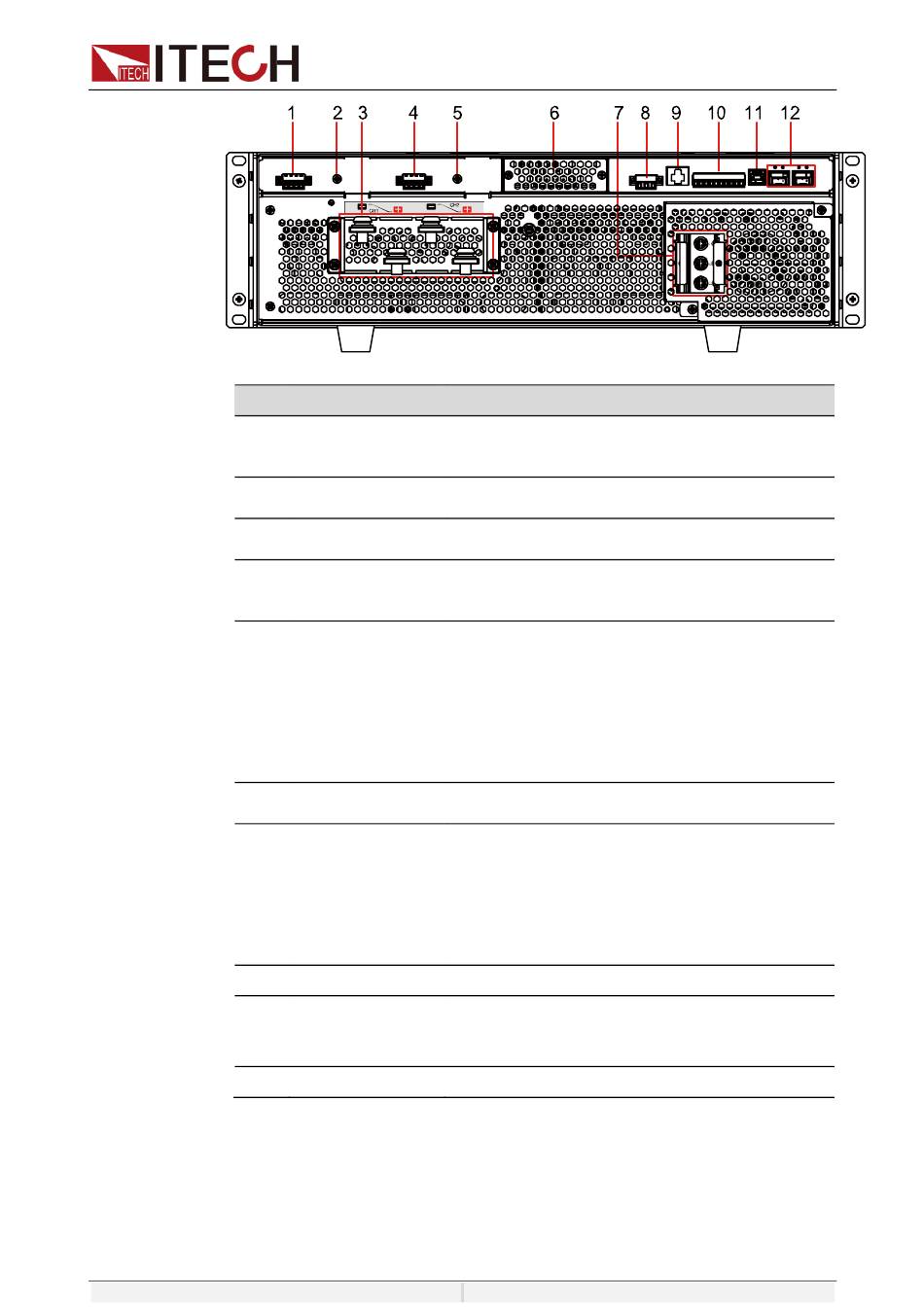

ITech IT6600C Series User Manual page 18

No. Name
1 Remote sense
Terminals
(CH1)
2/5 ground terminal
3 DC output
terminals
4 Remote sense
Terminals
(CH2)
6 Optional
expansion slot
7 AC power input
socket
8 External control
interface CTRL
9 LAN interface
10 I/O
terminals/CAN
interface
11 USB interface
Copyright ©ITECH Electronic Co., Ltd.
Description
VS1- and VS1+ are remote sense terminals,
used for maximizing measurement accuracy.
Ground screw for making chassis ground
connections.
Used to connect DUT.
VS2- and VS2+ are remote sense terminals,
used for maximizing measurement accuracy.
Optional interfaces: (Plastic plugs are inserted
by default when the user does not purchase the
interface.)
The optional interface as follows:

GPIB

RS-232/ Analog interface

EtherCAT

Relay board
Used to connect AC power to start instrument.
This interface is used for the parallel connection
between the master (with operation panel) and
the slaves (without operation panel). Connect
the interface on the rear panel of each unit to be
connected in parallel, and the master can offer
synchronous control over the power-on/off of
the slaves.
LAN communication interface.

Digital Port

CAN communication interface CAN-H and
CAN-L
USB communication interface.
