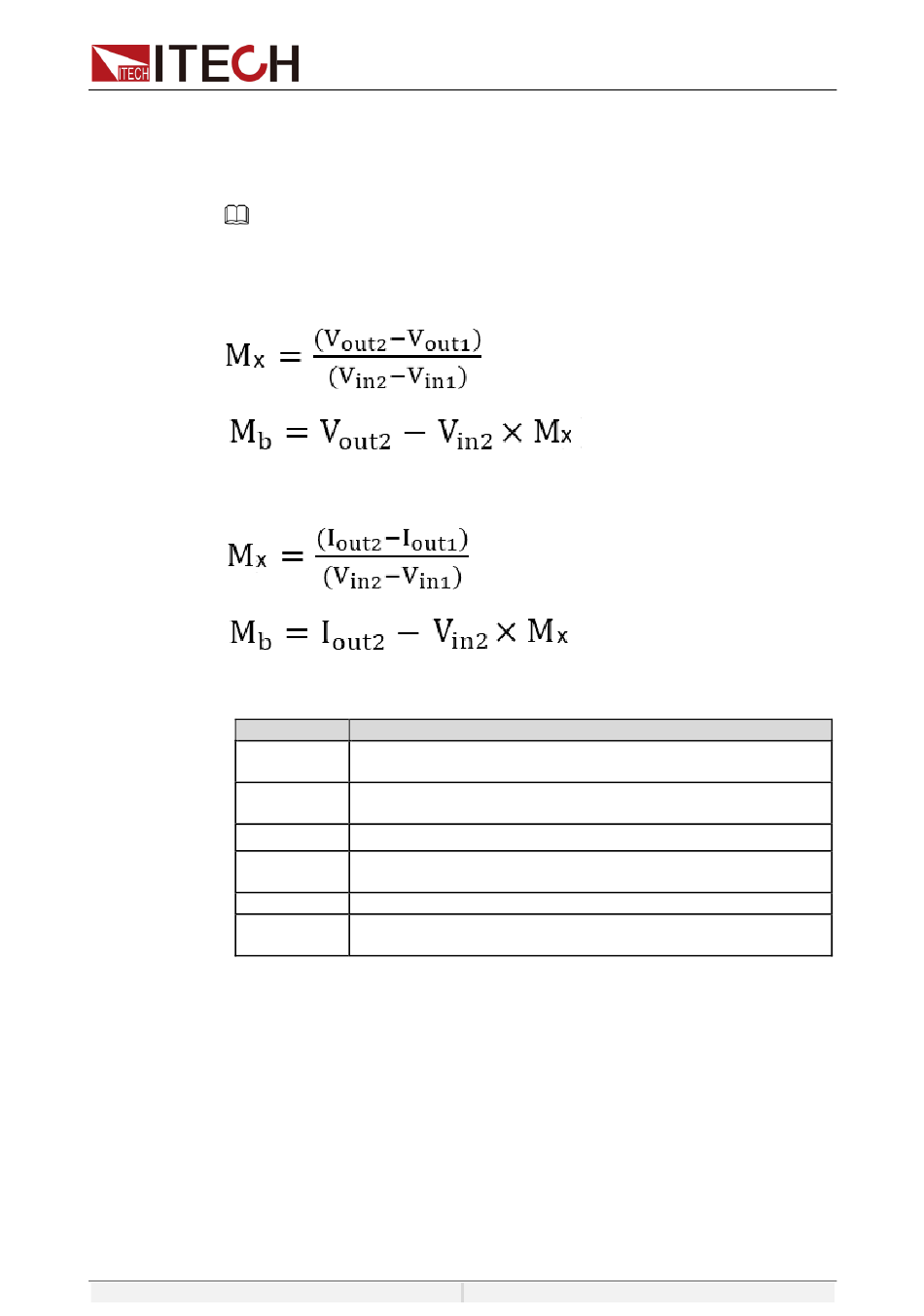

Taking the Channel 1(Volt Set/Curr Set) program setting as an example, the
user needs to convert the Mx and Mb values based on the formula below. And
set these two values respectively through the front panel keys.
NOTE

CV priority

CC priority
Formula parameter descriptions:
Name
Vin1
Vin2
Vout1
Vout2
Iout1
Iout2
Analog Control
The following is an example of how to connect and use the voltage and current
control in CC priority mode.
1. Refer to the figure below to complete the pin connection.
The principle of parameter setting of Channel 1 and Channel 2 and Channel 3 is the same,
so the description will not be repeated.
Description
Indicates the minimum voltage input to pin 8. The setting
range is from -10V to 10.
Indicates the maximum voltage input to pin 8. The setting
range is from -10V to 10, and Vin2 >Vin1.
The minimum value of the output voltage in CV priority mode.
The maximum value of the output voltage in CV priority mode,
and Vout2>Vout1.
The minimum value of the output current in CC priority mode.
The maximum value of the output current in CC priority
mode, and Iout2>Iout1.
