This chapter describes the characteristics and operations of the basic metering
function of IT6600 series source.
6.1 Meter Mode

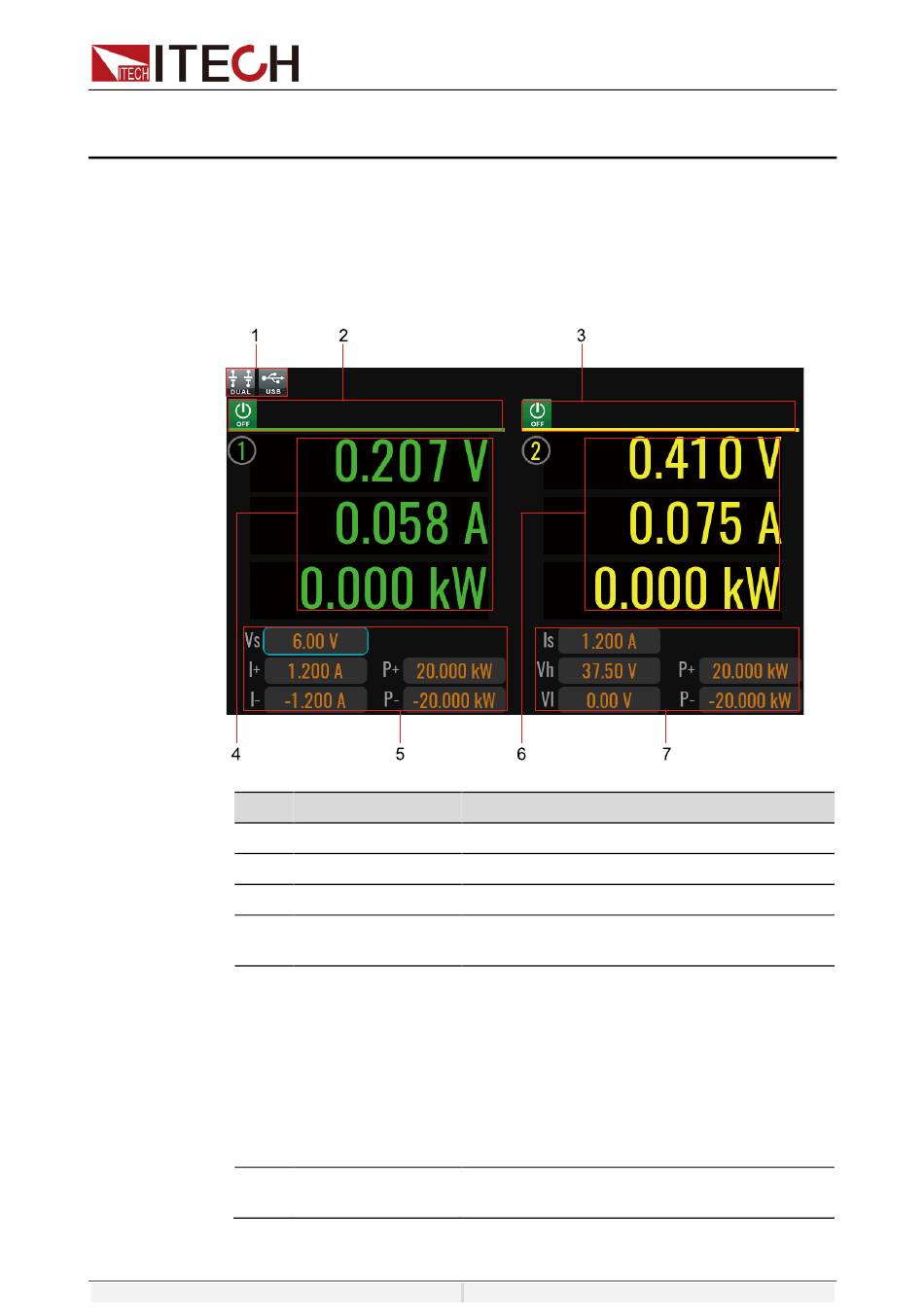

In the Menu display interface, click Meter to enter the metering interface. See
the figure below.
No.
1
2
3
4
5
6
Chapter6 Measurement Functions
Name
Power status bar
CH1 status bar
CH2 status bar
Output values view
area for CH1
Setting values view
area for CH1
Output values view
area for CH2
Copyright ©ITECH Electronic Co., Ltd.
Description
Displays the present output status.
Displays the output status of power channel 1.
Displays the output status of power channel 2.
Displays the present output voltage, current
and power values.

When CV is prioritized, the voltage
setting value, current upper limit value,
current lower limit value, power upper
limit value, and power lower limit value
are displayed.

When CC is prioritized, the current setting
value, voltage upper limit value, voltage
lower limit value, power upper limit value,
and power lower limit value are
displayed.
Displays the present output voltage, current
and power values.
Measurement Functions
