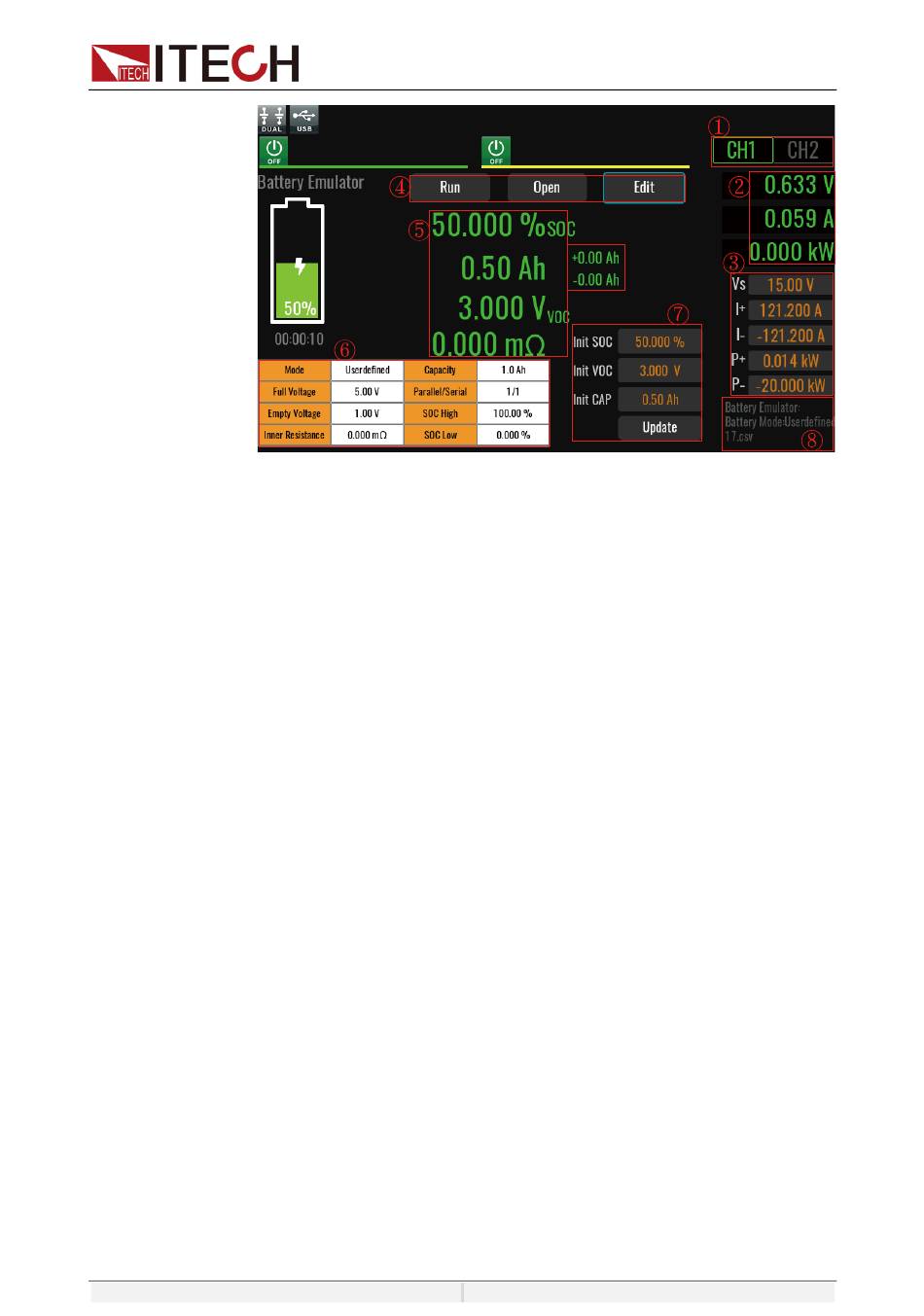

1. CH1/CH2: channel selection, Channel 1 or Channel 2.
2. Output values view area: displays the output voltage value, output
current value and output power value of the current channel.
3. Setting values view area (Normal mode): When CV is prioritized, the
voltage setting value, current upper limit value, current lower limit value,
power upper limit value, and power lower limit value are displayed.
When CC is prioritized, the current setting value, voltage upper limit
value, voltage lower limit value, power upper limit value, and power
lower limit value are displayed.
4. Bat-SIM edit button. The functions are described as follows.

Run/Stop: run/stop the Bat-SIM function.

Open: select the Bat-SIM file to execute.

Edit: edit present Bat-SIM file.
5. Display the state of charge (Soc), capacity, open circuit voltage (Voc),
and internal resistance of the current simulated battery.
+0.00Ah and -0.00Ah: These indicate the added and subtracted
capacity during the simulated battery testing process.
6. Display the current edited battery simulation file parameters.
7. Quick edit area displays the initial state of charge (Init Soc), initial open
circuit voltage (Init Voc), and initial capacity (Init CAP) for the current
simulated battery. Click [Update] to confirm any modifications.
8. Displays the certain status information during Bat-SIM operation, which
can be viewed by sliding up and down.

Curve
