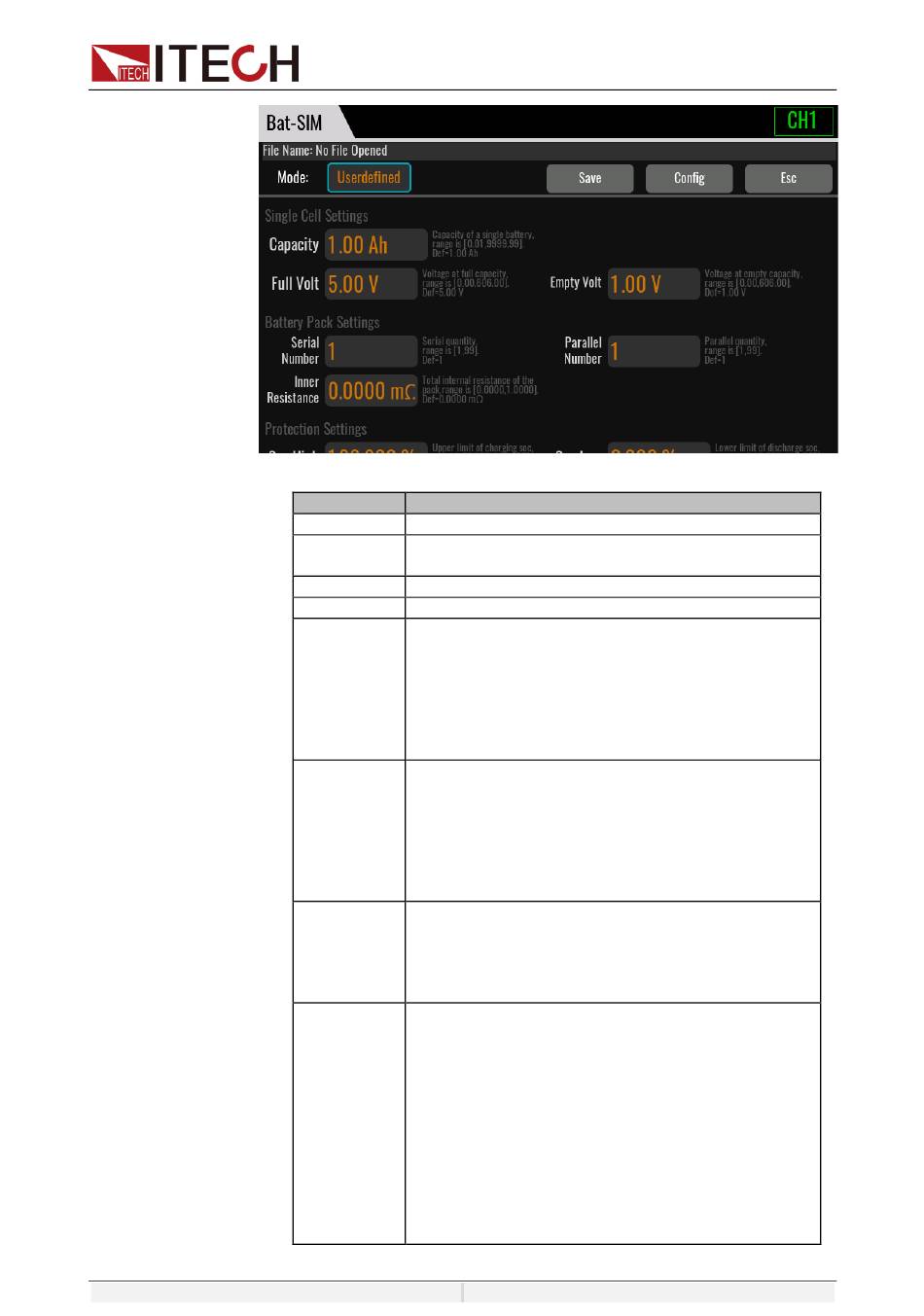

Bat-SIM edit description:
Parameter Description
File Name Display Bat-SIM file name.
Mode Select the Bat-SIM working mode Userdefined or
Curve.
Save Save the Bat-SIM file.
Config Configure the Bat-SIM file to make it effective.
Single Cell Sets the properties of a single cell.

Settings Capacity: Simulates the capacity of a cell
battery.

Full Volt: Simulates the voltage value when the
cell battery is fully charged.

Empty Volt: Simulates the voltage value when
the cell battery is in the empty state.
Battery Sets the properties of battery pack.

Pack Serial Number: Set the number of parallel
Settings connected batteries.

Parallel Number: Set the number of batteries in
series.

Inner Resistance: Simulates the total internal
resistance of battery pack.

Protection Soc High: Upper limit of charge soc.

Settings Soc Low: Lower limit of discharge soc.

Charge Curr Max: Upper limit of charge current.

Discharge Curr Max: Lower limit of discharge
current.

Running Init Soc: Set the initial state of charge (Soc) of
Settings the battery. 0~100% corresponds to the voltage
range from no-load voltage to full-load voltage.

lnit Voc: Sets the initial battery open circuit
voltage.

Init Cap: Set the initial battery capacity.

End Mode: Set the running state after the Bat-
SIM execution is finished.
Last: Maintains the final voltage output after the
end of charge or discharge.
Normal: The device shuts down output and
returns to normal.
