4.7 Built-in Waveform Function
This series power supply supports built-in waveforms for user to execute the test
directly. The protocols/standards involved in the built-in waveforms include the
following:

DIN40839

ISO16750-2

ISO21848

SAEJ1113-11

LV123

LV124

LV148

ISO21780

ISO21498-2
4.7.1 DIN40839
This series power supply has built-in 12V or 24V DIN40839 waveform. This test
verifies the behavior of a DUT during and after cranking. This waveform can
reproduce the voltage curve for automotive power network confirms to
DIN40839 standard, thus facilitating quick call by customers.
For automotive startup voltage waveform, the startup voltage can also be set
based on customers' requirements. In this way, the user can create waveform
between 8V to 32V.

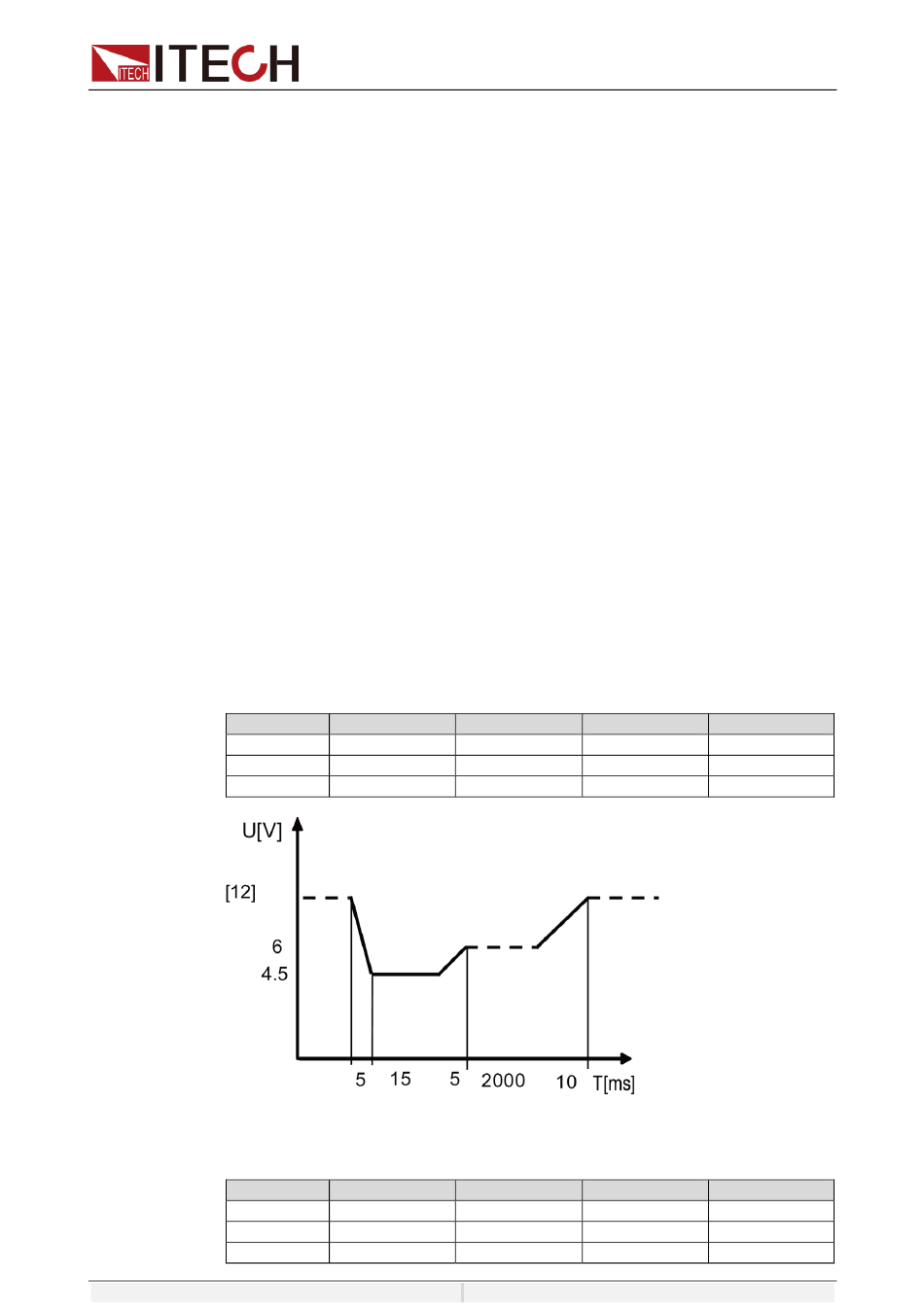

DIN40839 for 12V System
Step
1
2
3
DIN40839 for 24V System
Step
1
2
3
Voltage(V) Current(A)
4.5 60
6 60
12 60
Voltage(V) Current(A)
8 60
12 60
24 60
Copyright ©ITECH Electronic Co., Ltd.
Power Supply Function
Width(ms) Slope(ms)
15 5
2000 5
T 10
Width(ms) Slope(ms)
15 10
2000 5
T 10
