How to recall this waveform from menu (take 12V system as an example):
1. Click Vehicle on the Menu screen to enter the vehicle test screen.
1) Press the up/down key to move the cursor to the Standards function
2) Press the up/down key to move the cursor to the Mode function setting
3) Press the up/down key to move the cursor to the Voltage Range
2. Press [Run] in the Vehicle function interface.
3. Press [On/Off] on the front panel, turn on the output.
4. According
[Shift]+[5](Trigger) to trigger the output of the waveform.
Reset-Test

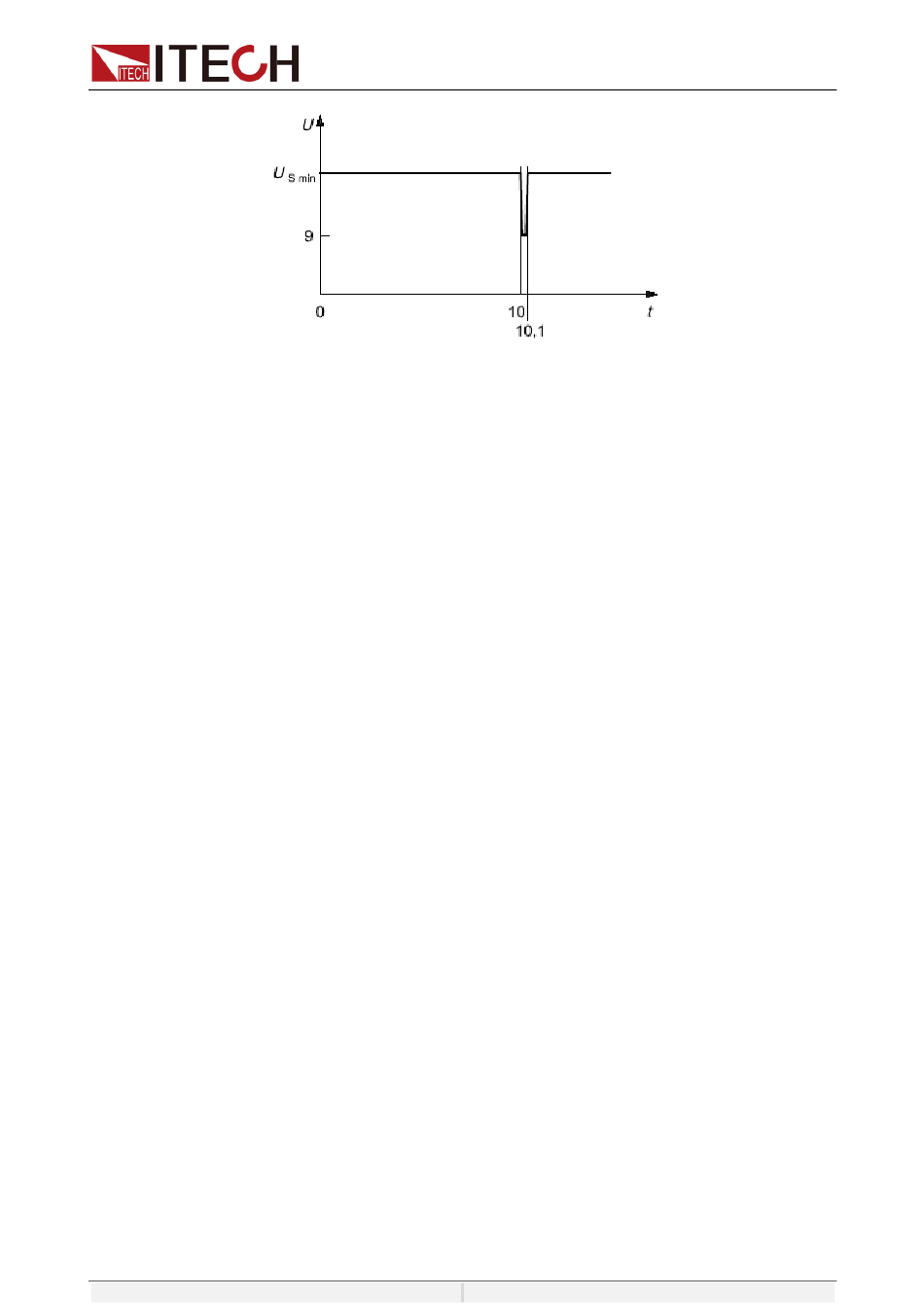

This test verifies the reset behavior of the DUT at different voltage drops. This
test is applicable to equipment with reset function, e.g. equipment containing
microcontroller. Apply the test pulse simultaneously in figure below to all relevant
inputs (connections) and check the reset behavior of the DUT. Decrease the
supply voltage by 5 % from the minimum supply voltage, Us min, to 0.95 Us min.
Hold this voltage for 5 s. Raise the voltage to Us min. Hold Us min for at least
10 s and perform a functional test. Then decrease the voltage to 0.95 Us min.
Continue with steps of 5 % of Us min, as shown in figure below, until the lower
value has reached 0 V. Then raise the voltage to Us min again.
setting and press the [Enter] key to confirm. Rotate the knob to select
ISO16750-2 and press the [Enter] key to confirm.
and press the [Enter] key to confirm. Rotate the knob to select Short-
Drop and press the [Enter] key to confirm.
function setting and press the [Enter] key to confirm. Press the numeric
keys to set the startup voltage as V=12V and press [Enter] to confirm.
to the selected
