How to Use
Take ISO21780 TEST-01 as an example to introduce how to use this function.
1. Click Vehicle on the Menu screen to enter the vehicle test screen.
1) Press the up/down key to move the cursor to the Standards function
2) Press the up/down key to move the cursor to the Testings function
3) Press the up/down key to move the cursor to the Testcase function
2. Press [Run] in the Vehicle function interface.
3. Press [On/Off] on the front panel, turn on the output.
4. According
[Shift]+[5](Trigger) to trigger the output of the waveform.
4.7.9 ISO21498-2

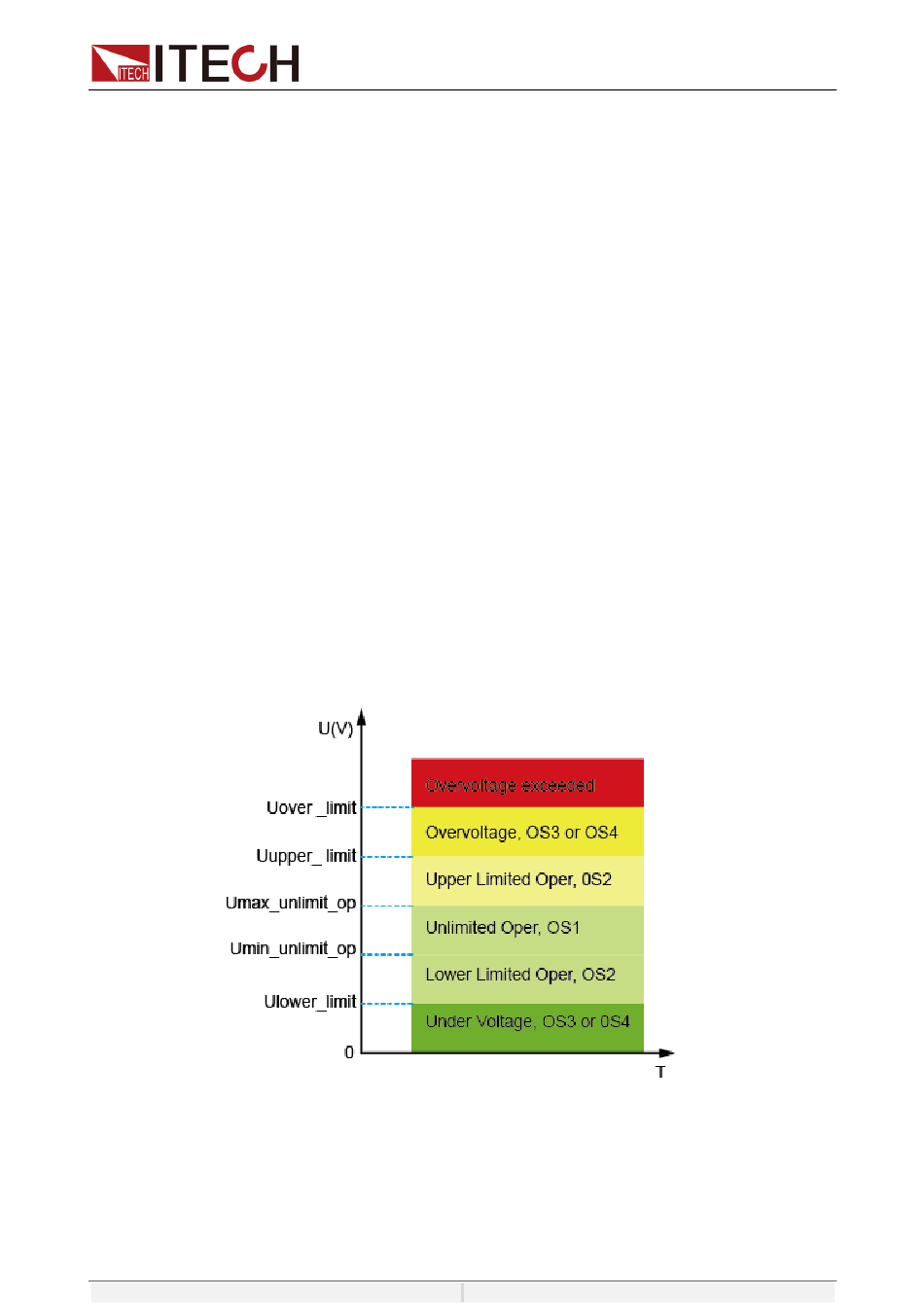

ISO21498-2 covers electrical specifications and tests for voltage class B
systems and components. The component voltage range and limits of
corresponding OS are shown in the figure below.
In the ISO21498-2 main interface, by clicking on "More" you can access the
settings menu to adjust different voltage ranges.
E-04
This test verifies that the DUT is able to perform as specified when the DC
voltage varies in the range between the lower voltage limit and the upper voltage
limit.
setting and press the [Enter] key to confirm. Rotate the knob to select
ISO21780 and press the [Enter] key to confirm.
setting and press the [Enter] key to confirm. Rotate the knob to select
TEST-01 and press the [Enter] key to confirm.
setting and press the [Enter] key to confirm. Rotate the knob to select
Standard and press the [Enter] key to confirm.
to the selected
Copyright ©ITECH Electronic Co., Ltd.
trigger method, for
Power Supply Function
example, press
