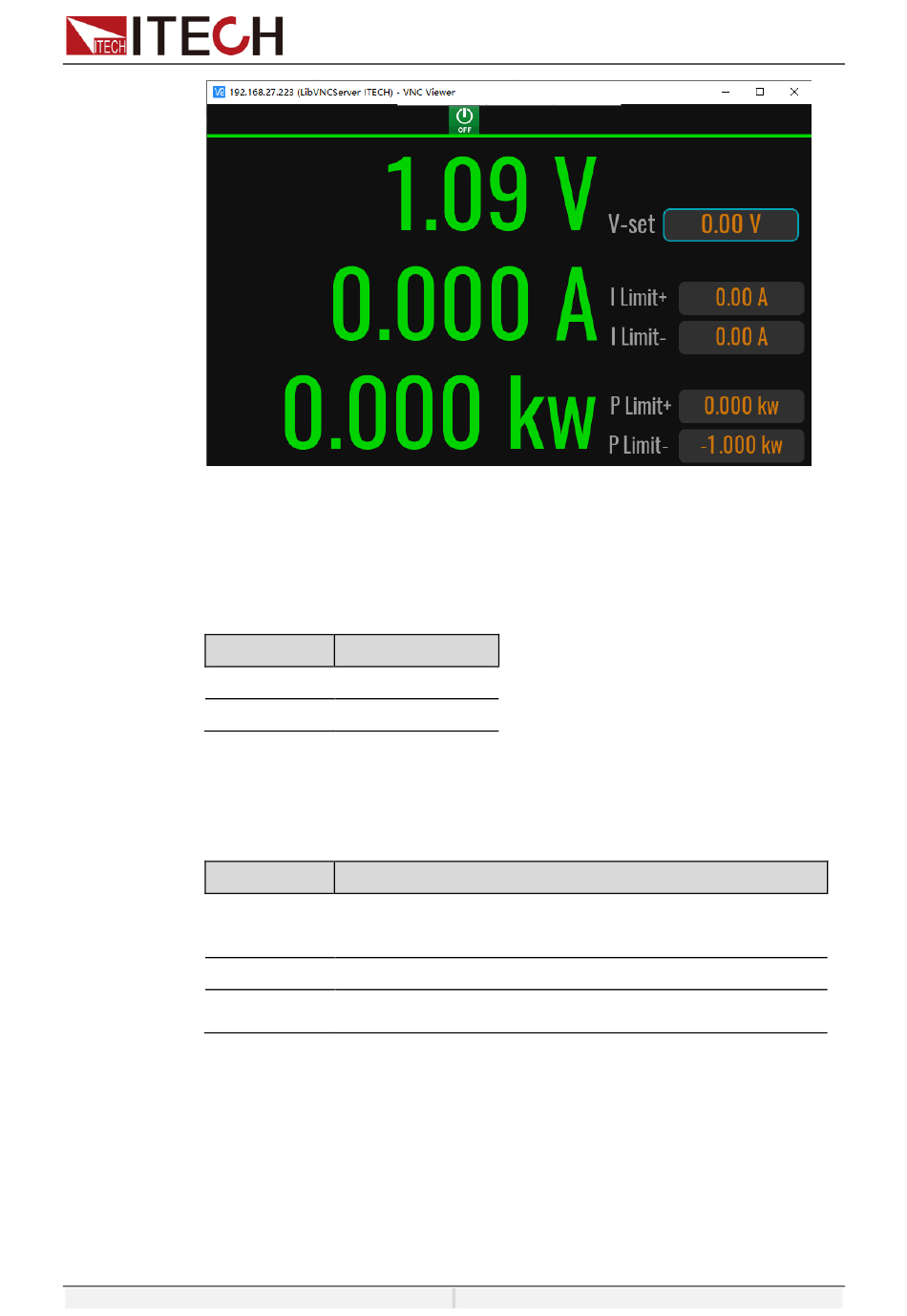

8.3 CAN Interface
The CAN interface is located on the rear panel of the instrument and is con-
nected to the computer using a CAN communication cable. The definition of
CAN pins are as follows.
Pins
H
L
CAN Configuration
The user needs to configure the CAN interface parameters in the system menu
before using the remote control. The CAN interface parameters are as follows.
Name
Baud rate
Address
Protocol
The operation steps are as follows.
1.
2.
3.
4.
Description
CAN_H
CAN_L
Description
Select the baud rate from the following options:
5k/10k/20k/40k/50k/80k/100k/125k/200k/250k/400k/500k/6
00k/800k/1000k.
Range: 0 – 127.
CAN_OPEN: High-level protocol for the CAN bus.
CAN2.0: ITECH CAN version 2.0 protocol.
Press the composite keys [Shift] + [P-set] (System) on the front panel to en-
ter the system menu.
Select Communication and press [Enter].
Select CAN and press [Enter].
Set the baud rate and address, press [Enter].
Copyright ©ITECH Electronic Co., Ltd.
Remote Control
184
