3.

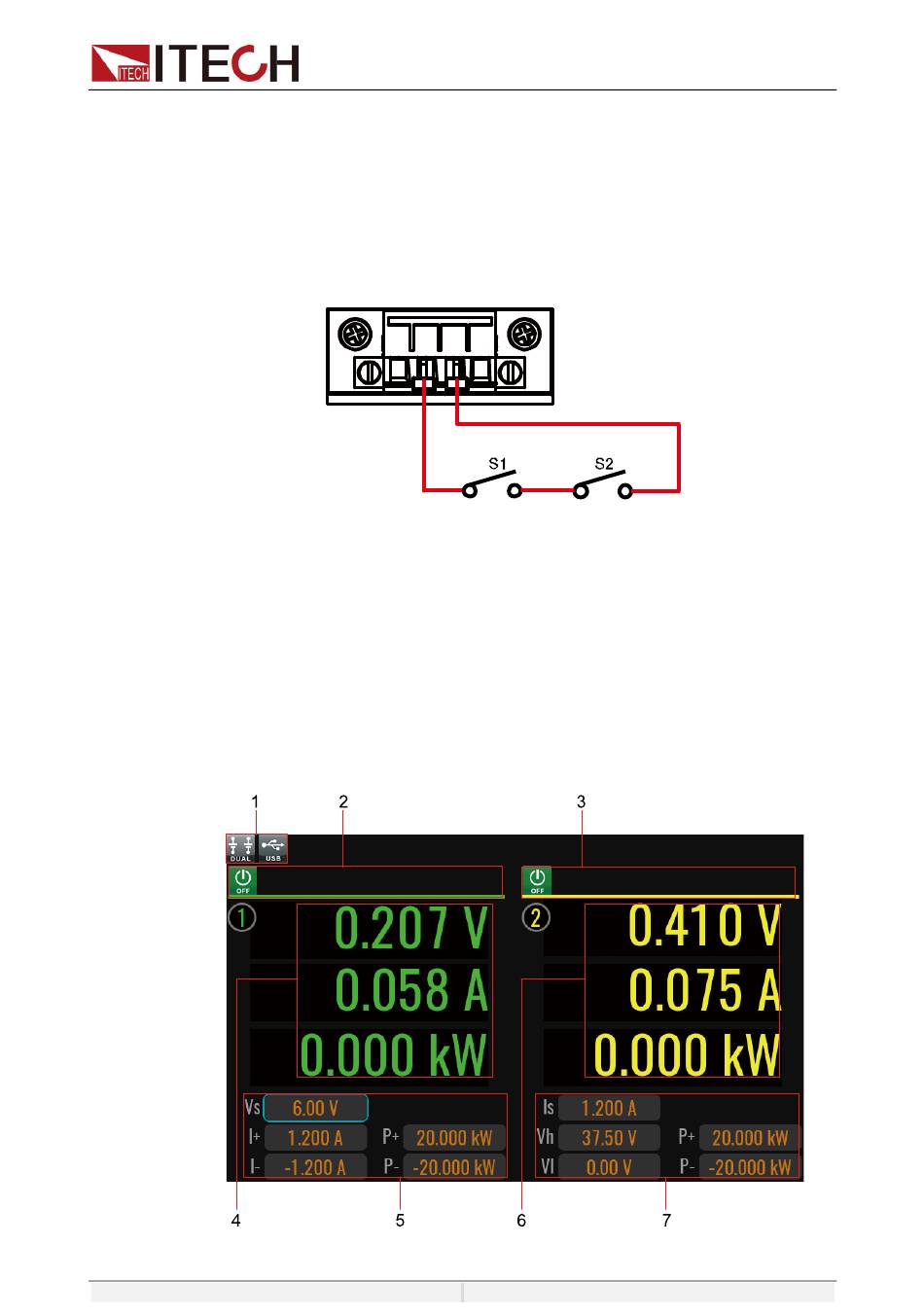

1.6 Home-Screen Overview
IT6600 series power supply adopts touch screen design, the users can easily
operation by touch screen. The details of the home screen are described below.
When the cabinet is powered on and off by the emergency stop button
on the front panel of the cabinet, make sure that the short-circuit clips
here are correctly installed.
When controlling the power on and off of the cabinet (emergency stop)
through external cables, refer to the following steps:
a. Remove the short-circuit clip between Pin2 and Pin3.
Note: Lead 24V voltage signal.
b. Refer to the figure below to connect to the external signal control
circuit.
S1: Cage door switch by customer
S2: External switch by customer
Note: When both A and B are closed, the cabinet is powered on; if
either A or B is disconnected, an emergency stop is triggered and
the cabinet is powered off. If you need to power on the cabinet
again, make sure that the switches at A and B are closed.
AC input power cable terminals for L1, L2, L3, and PE.
