5.8.2 Parallel Operation(single-unit)
The IT6600 power supply can increase its output current and power by
connecting the two channels of a single instrument in parallel. When connected
in parallel, the upper limit of the current setting range is twice the rated value of
a single channel, and the instrument is used as a single channel power supply
at this time.
Operation steps
1. Set the two channels of the power supply to parallel mode.
a) Press the composite keys [Shift] + [P-set] (System) on the front panel
b) Select the Source tab, then press the up/down key or rotate the knob
c)

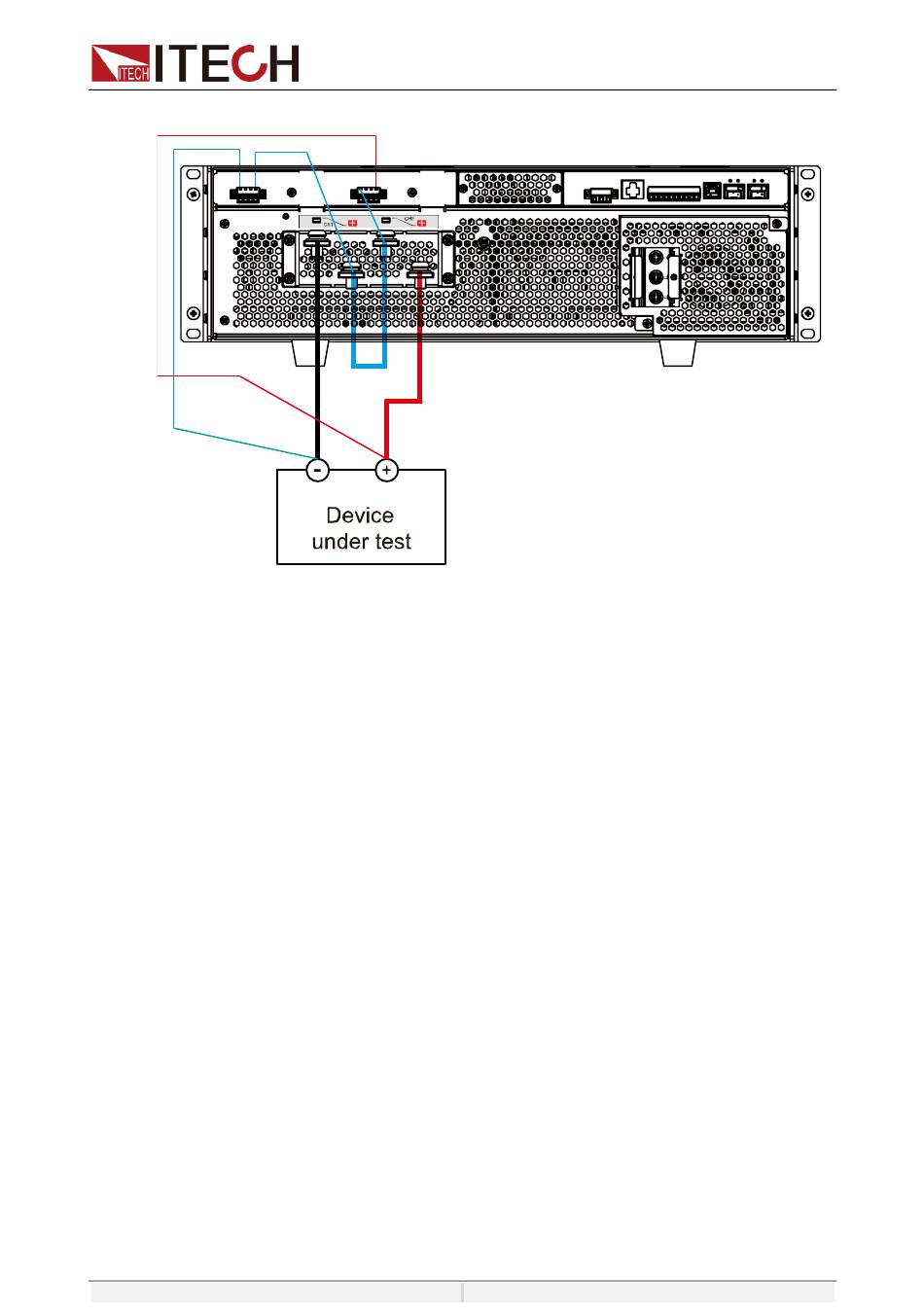

2. Refer to the figure below to connect the DUT, and live wiring is prohibited.

Remote sense
to enter the system menu.
to find Output Mode menu.
Press the up/down key to move the cursor to the Mode function setting
and press the [Enter] key to confirm. Rotate the knob to set Parallel
output mode, and press the [Enter] key to confirm.
Local sense
