ITech IT6600C Series User Manual page 81


Y: Ulow, %

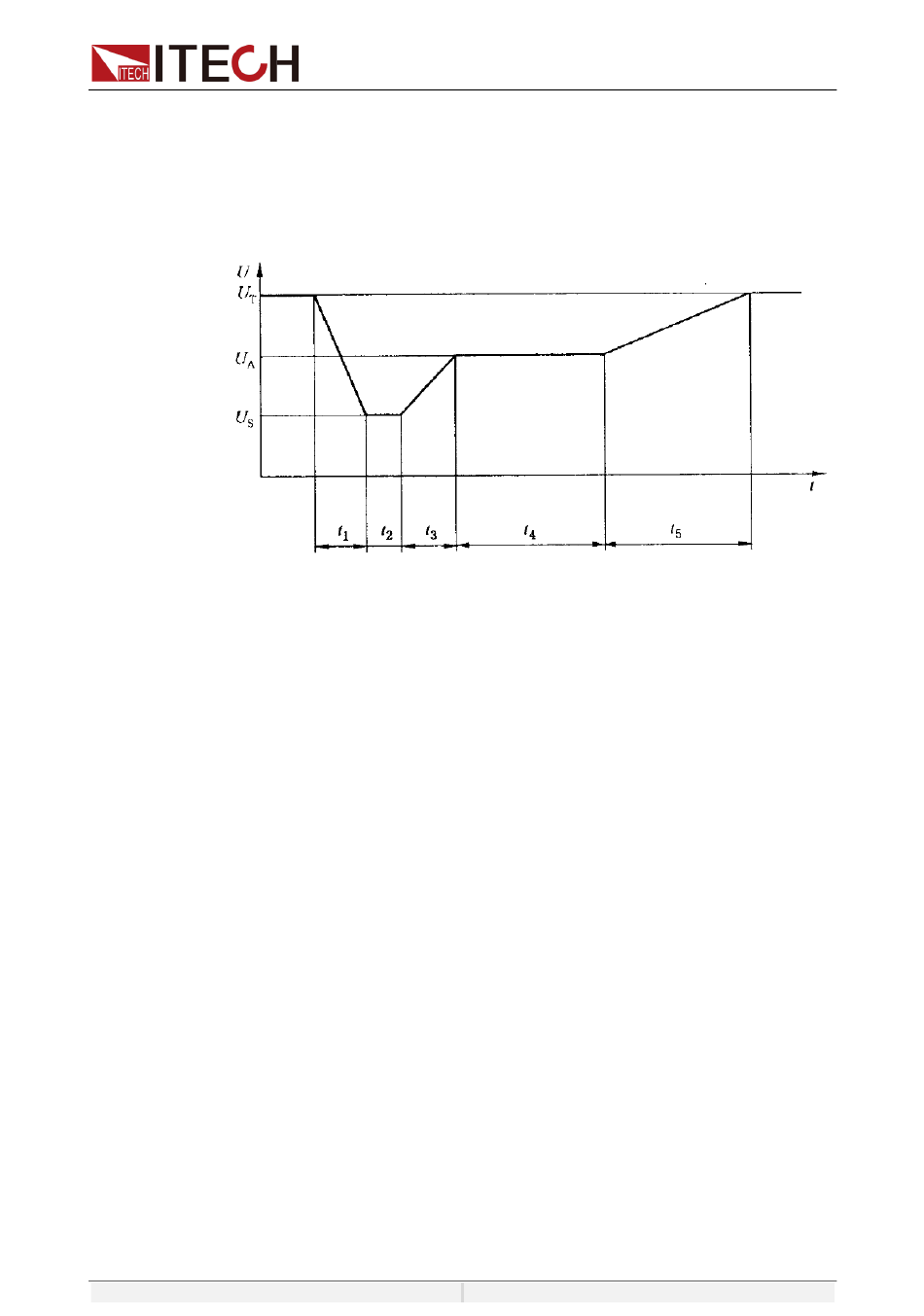

Start-up Characteristics (Start)
Detect DUT characteristics before and after vehicle startup.
Apply the startup characteristic parameters as shown in the figure and table to
related input terminals of the DUT simultaneously.

t: time (in s)

U: voltage (in V)

U

U

U
How to Use
Take Momentary-Drop as an example to introduce the procedures as follows:
1. Click Vehicle on the Menu screen to enter the vehicle test screen.
1) Press the up/down key to move the cursor to the Standards function
2) Press the up/down key to move the cursor to the Mode function setting
2. Press [Run] in the Vehicle function interface.
3. Press [On/Off] on the front panel, turn on the output.
4. According
[Shift]+[5](Trigger) to trigger the output of the waveform.
4.7.4 SAEJ1113-11
Test–2B
Transient from DC motors acting as generators after ignition switch OFF:
: 18V
s
: 21V
A
: 42V
T
setting and press the [Enter] key to confirm. Rotate the knob to select
ISO21848 and press the [Enter] key to confirm.
and press the [Enter] key to confirm. Rotate the knob to select
Momentary-Drop and press the [Enter] key to confirm.
to the selected
Copyright ©ITECH Electronic Co., Ltd.
t1: 5ms
t2:15ms
t3: 50ms
t4: 10000ms
t5: 100ms
trigger method, for
Power Supply Function
example, press
72
