ITech IT6322 Manual

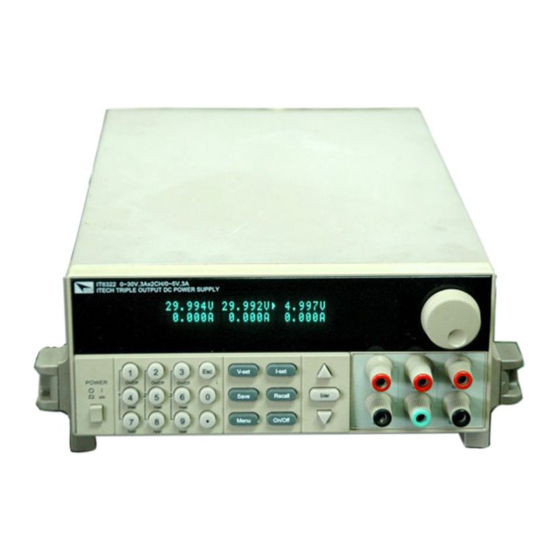

Three outputs programmable power supply
Hide thumbs Also See for IT6322:
Table of Contents

Advertisement

Quick Links

See also: User Manual
IT6322 SCPI
Three outputs Programmable Power Supply
Models IT6322
© Copyright 2005 All Rights Reserved
Ver1.1/MAR, 2008/ IT6300-508
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT6322 and is the answer not in the manual?

Questions and answers

Related Manuals for ITech IT6322

Summary of Contents for ITech IT6322

  • Page 1 IT6322 SCPI Three outputs Programmable Power Supply Models IT6322 © Copyright 2005 All Rights Reserved Ver1.1/MAR, 2008/ IT6300-508...

  • Page 2: Table Of Contents

    ......................5 OMMUNICATION CABLE 1.2 IT-E132 USB C .........................5 OMMUNICATION CABLE 1.3 IT-E135 GPIB C .......................5 OMMUNICATION ABLE Chapter 2 Communication Order for IT6322 ..................... 7 2.1 IEEE488.2 C ..........................7 OMMON RDER 2.2 SCPI E ............................7 SSENTIAL RDER 2.3 SCPI N ..........................8...

  • Page 3: About Your Safety

    About your safety Pease review the following safety precautions before operating our equipment. General information The following safety precautions should be observed before using this product and any associated instrumentations. Although some instruments and accessories would be used with non-hazardous voltages, there are situations where hazardous conditions may be present.

  • Page 4: Limitation Of Warranty

    Warranty This instrument product is warranted against defects in material and workmanship for a period of one year from date of delivery. During the warranty period we will, at its option, either repair or replace products which prove to be defective. For warranty service, with the exception of warranty options, this product must be returned to a service facility designated by us.

  • Page 5: Chapter 1 Remote Operation Mode

    Chapter 1 Remote Operation Mode The DB9 interface connector on the rear panel of the power supply can be transferred to RS-232 interface, the following information will tell you how to use the computer to control the output of the power supply.
  • Page 6 IT-E135 outer communication adapter COM interface of GPIB line Power supply IT-E135 ISOLATED Serial /IEEE 488 Controller Note: Forbidden to connect DB9 connector in power supply directly with PC or other RS232 port.

  • Page 7: Chapter 2 Communication Order For It6322

    Chapter 2 Communication Order for IT6322 2.1 IEEE488.2 Common Order *CLS *ESE *ESE? *ESR? *IDN? *OPC *OPC? *PSC *PSC? *RST *SRE *SRE? *STB? *SAV *RCL 2.2 SCPI Essential Order SYSTem :ERRor? :VERSion? :BEEPer[:IMMediate] :ADDRess? STATus :QUEStionable :ENABle <enable value> :ENABle?

  • Page 8: Scpi Nonstandar Order

    CONDition? INSTrument [:SELect] {FIRst|SECOnd|THIrd} [:SELect]? NSELect {1|2|3} NSELect? OUTPut [:STATe] {0|1} [:STATe]? [SOURce:] CURRent[:LEVel][:IMMediate][:AMPLitude] {<current>|MIN|MAX} CURRent[:LEVel][:IMMediate][:AMPLitude]? {MIN|MAX} VOLTage[:LEVel][:IMMediate][:AMPLitude] {<voltage>|MIN|MAX} VOLTage[:LEVel][:IMMediate][:AMPLitude]? {MIN|MAX} VOLTage:PROTection[:LEVel][:IMMediate][:AMPLitude] VOLTage:PROTection[:LEVel][:IMMediate][:AMPLitude]? 2.3 SCPI Nonstandar Order CALibration :SECure[:STATe] {ON|OFF,<quoted code>} :SECure[:STATe]? :VOLTage LEVel <level> [:DATA] <voltage value> :CURRent LEVel <level> [:DATA] <current value>...

  • Page 9: Scpi Order Description

    [:WINDow][:STATe] {OFF|ON} [:WINDow][:STATe]? MEASure[:SCALer] :CURRent[:DC]? [:VOLTage][:DC]? :POWer[:DC]? 2.3 SCPI Order Description Chapter 3 SCPI Condition Register You can get the condition of power supply and read parameter from the operation register. The power supply can get the different state by 7 condition registers. These registers are status byte register, standard event register, quest condition register and operation status register.
  • Page 10 Structure of condition register as following: condition event enable condition event enable condition event enable Operation status sub register(channel 1) Operation status sub register(channel 2) Operation status sub register(channel 3) condition event enable INST1 INST1 INST1 INST2 INST2 INST2 INST3 INST3 INST3 Operation status register...

  • Page 11: Chapter 4 Scpi Order Description

    Example: *ESR？ *IDN？ This order can read information about power supply. The parameter it returns contains 4 segments divided by comma. Quest syntax：*IDN？ Return parameter：<AARD> segment description ITECH manufacturer XXXX product mode XXXXXX product serial number VX．XX software version number...
  • Page 12 For example：ITECH, 6322, 000000000000111101,V1.68 *OPC When all orders before this order are executed, OPC is 1 of the standard event status register. Order syntax：*OPC Quest syntax：*OPC？ Example：*OPC *PSC This order control if power supply send a query or not when it is reset.

  • Page 13: Scpi Essential Order

    current, constant voltage, maximum voltage value and step voltage value. ：*SAV Order syntax Parameter：0~49 Example：*SAV 10 *RCL This order can recall the parameter you saved before from the register. Order syntax：*RCL Parameter：0~49 Example：*RCL 10 4.2 SCPI Essential Order SYSTem:ERRor This order can get the error code and error information of the power supply. Order syntax：SYSTem:ERRor? Return parameter：please consult the error information table Example：SYST:ERR?
  • Page 14 Example：SYST:RWL SYSTem:ADDRess This order can check the communication address of power supply. Order syntax：SYSTem:ADDRess? Example：SYST:ADDR? STATus:QUEStionable:ENABle This order can set the parameter of quest event enable register. Setting parameter can determine which bit value of quest event register is 1 and the bit will enable QUES of status byte register is 1. Order syntax：STATus:QUEStionable:ENABle <parameter>...
  • Page 15 STATus:OPERation:ENABle? This order can read parameter from the operation enable register. After this order executed, the operation enable is reset. Order syntax：STATus:OPERation:ENABle? Return parameter：<parameter of operation enable register> Example：STAT:OPER:ENAB? STATus:OPERation? This order can read parameter from the operation condition register. After this order executed, the operation condition is reset.
  • Page 16 Note: this order is only valid for current channel. Order syntax：STATus:OPERation:INSTrument:CONDition? Return parameter：<parameter of operation condition register> Example：STAT:OPER:INST:COND? INSTrument[SELect] This order can be used to select the channel. Order syntax：INSTrument[:SELect] Parameter：FIRst|SECOnd|THIrd Reset value：FIRst Example：INST SECO INSTrument[:SELect]? This order can check which channel is selected. Order syntax：INSTrument[:SELect]? Return parameter：FIRst|SECOnd|THIrd Example：INST？...
  • Page 17 OUTPut:TIMer:DATA? This order can check the time of output-timer for current channel. Order syntax：OUTPut:TIMer:DATA? Return parameter：0~999999 Unit：S Example：OUTP:TIM:DATA? [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude] This order can set current value of power supply. Order syntax：[SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude] <parameter> Parameter：MIN|MAX|MIN TO MAX Unit：A mA uA Reset value：it is concerned about the parameter you set in the menu. *RST value：MAX Example：CURR 2A [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]?
  • Page 18 Order syntax：[SOURce:]VOLTage:PROTection[:LEVel][:IMMediate][:AMPLitude] <parameter> Parameter：IN TO MAX|MIN|MAX Unit：V mV kV uV Reset value：it is concerned about the parameter you set in the menu. *RST value：MAX Example：VOLT:PROT 20V MEASure[:SCALer]:CURRent[:DC]? This order can get the output current of power supply. Order syntax：MEASure[:SCALer]:CURRent[:DC]? Return parameter：the actual output current Unit：A Example：MEAS：CURR? MEAS[:SCALer][:VOLTage][:DC]?
  • Page 19 Order syntax：CALibration:SECure[:STATe] <parameter 1>，<parameter 2> Parameter 1：0(OFF)|1(ON) Parameter 2：calibration password Unit：none Reset value：1|(ON) *RST value：1|(ON) Example：CAL：SEC 0,"6322" CALibration:SECure[:STATe]? This order can check protection mode: ON/OFF. Quest syntax：CALibration:SECure[:STATe]? Return parameter：0(OFF)|1(ON) Example：CAL:SEC? CALibration:VOLTage:LEVel This order can set voltage calibration point. Order syntax：CALibration:VOLTage:LEVel <parameter> Parameter：P1|P2 Example：CAL:VOLT P1 CALibration:VOLT[:DATA]...
  • Page 20 CALibration:STRing This order can set the calibration information. Order syntax：CALibration:STRing <parameter> Parameter：the calibration information about time and so on. Example：CAL:STR "2005-1-9 20:12" CALibration:STRing? This order can read the calibration information. Order syntax：CALibration:STRing? Return parameter：the calibration information saved in the EEPROM. Example：CAL:STR? CALibration:SAVe This order can save calibration coefficient into EEPROM...
