the screen shows that the instrument is working in single mode.
5.8.4 Parallel Operation(one master and multi-slaves)
"One master and multiple slaves" means that there is only one instrument with
operating panel (namely, the master) in the parallel system, and the other
instruments have no operating panels (namely, the slaves). In the "one master
and multiple slaves" system, you only need to operate the master's front panel.
This section uses three instruments as an example to introduce the steps for
parallel connection with one master and two slaves. The type and assembly
method for parallel connection of other quantities of instruments are the same.

Before connecting the cables, ensure that the instrument power
switch is off and the main switch of the AC power input (distribution
box) is off.

Before connecting 3 single instruments to the AC distribution box,
ensure that the distribution box capacity is sufficient. Refer to the
corresponding specifications for the AC input parameters of a single
instrument.

Fiber optic cables cannot be flexed or folded. When the cable is too
long and needs to be arranged, gently wrap the cable in a circle and
gently tie it.
1. Ensure that the power switches of the master unit and the main switch of
the AC power distribution box are off.
2. Connect the instruments according to the following diagram.


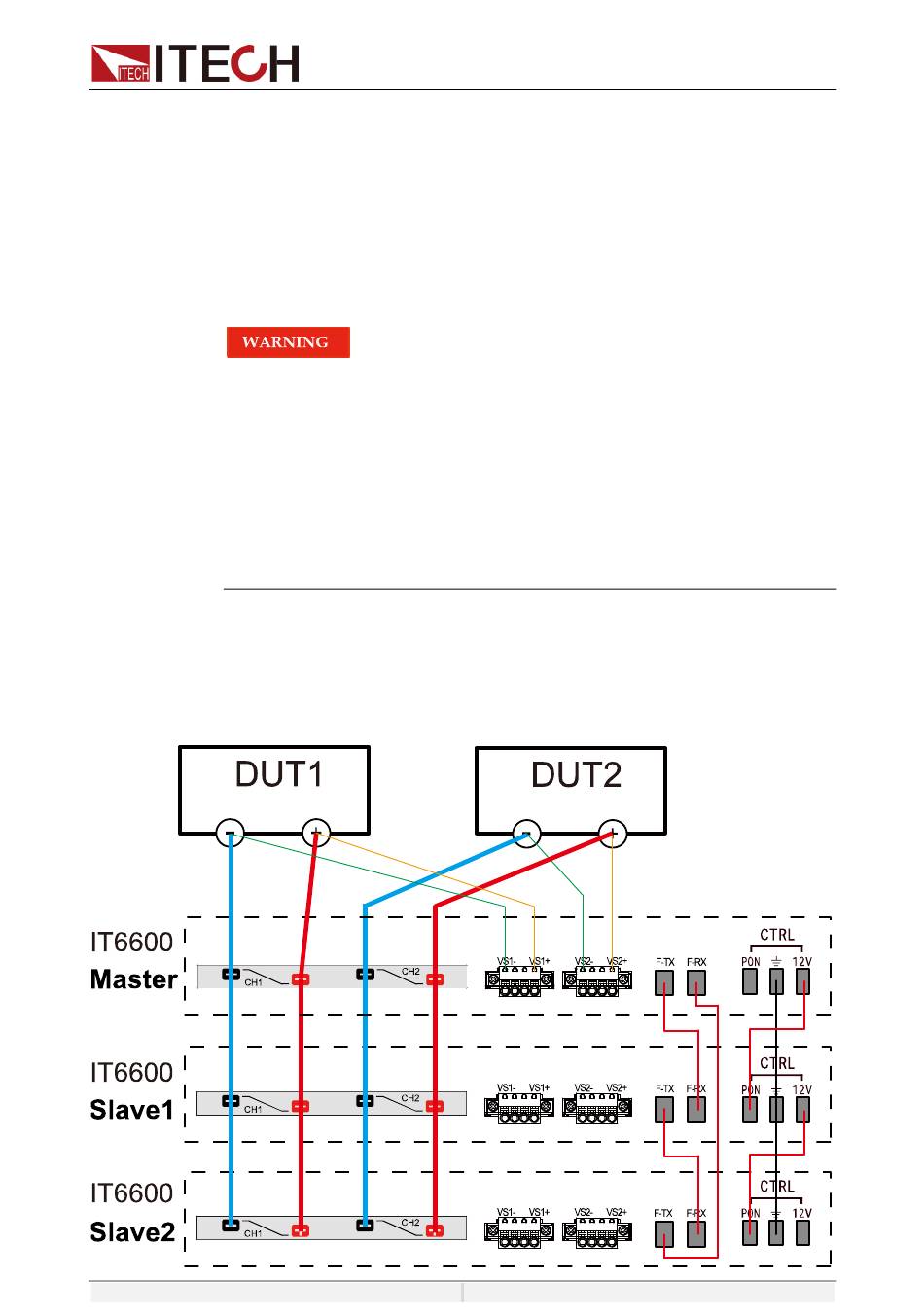

In dual-channel mode, the wiring schematic is shown below.
