When the given test pulse is applied at all input terminals of the DUT, the rise
and fall time between Ulow and 16V level shall not be longer than 10ms.

t: time (in s)

U: voltage (in V)
Reset Performance at Transient Drop of Voltage (Reset)
Detect the reset performance of the DUT at different Voltage drops. Applicable
for devices with reset function (for example, device installed with one or several
micro controllers).

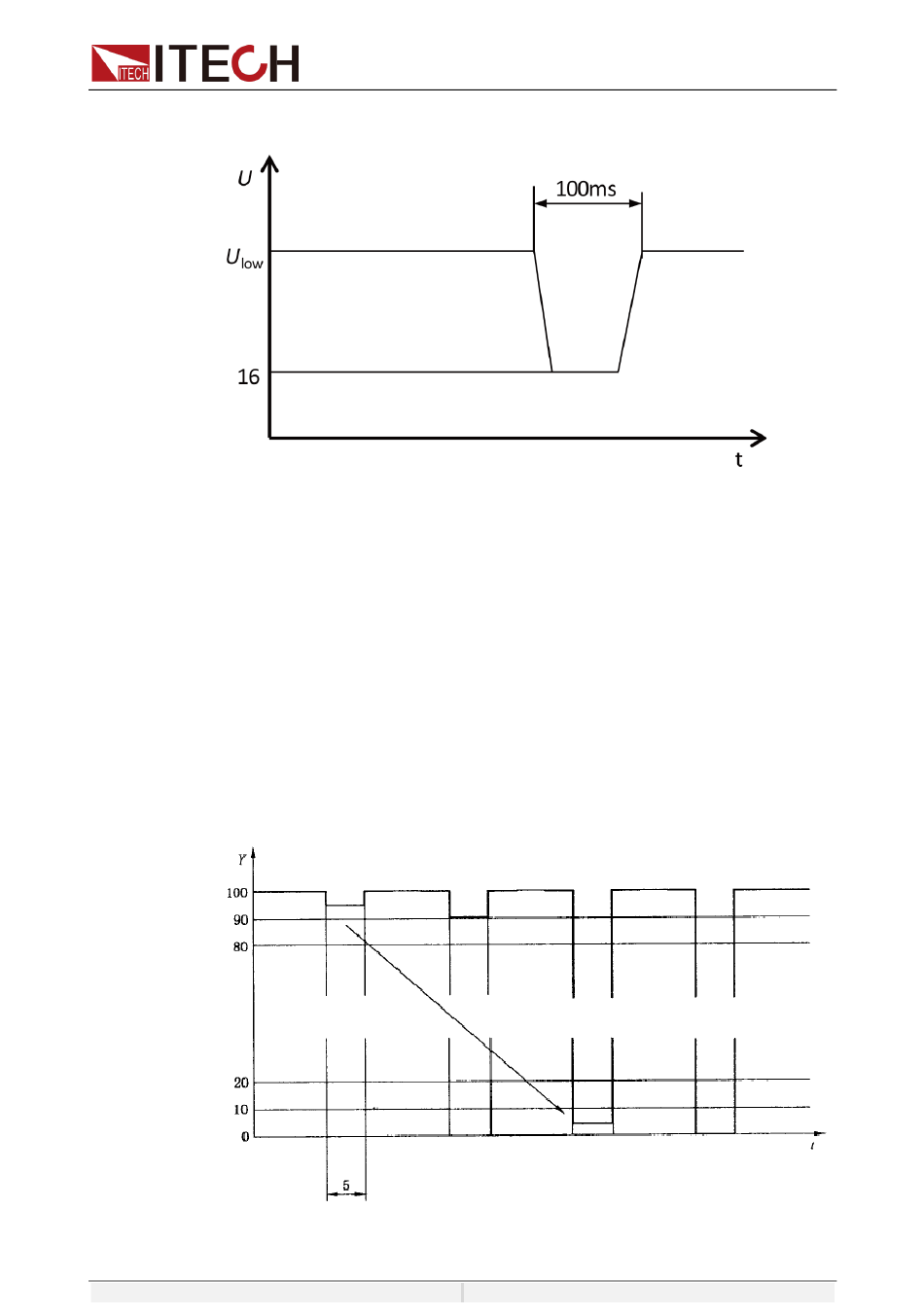

As shown in the figure, apply test pulse and detect the reset performance of the
DUT.
The supply voltage drops from U
rise to U
0.9U
low
5% and raise the voltage to U
and 1s.

t: time (in s)
and keep for at least 10s for function test. Then, drop Voltage to
low
, and so on. As shown in the figure, drop the voltage from U
low
